2023 John Deere 744 P

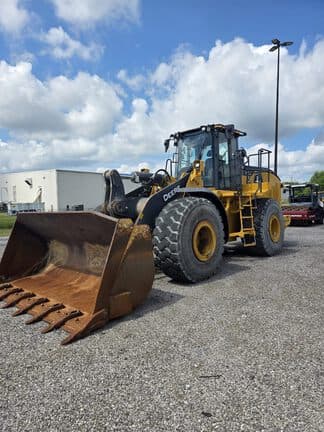

2023 John Deere 744 P wheel loader. 5,152 hours. Listed from Ardmore, OK. Stock 23054. Asking $355,000.
- Asking
- $355,000
- Hours
- 5,152
- Stock #
- 23054
- Location
- Ardmore, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 23054
- Class
- Wheel Loaders
- Engine
- John Deere 9.0L FT4 Diesel Engine
- Yard
- Ardmore, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other 744 Ps listed
Specification
| Engine manufacturer / model (EPA FT4/EU Stage V column) | JD9 PSS 6090 |
|---|---|
| Displacement | 9.0 L (548 cu. in.) |
| Net peak power (ISO 9249) | 236 kW at 1,500 rpm (316 hp at 1,500 rpm) |
| Net peak torque (ISO 9249) | 1501 Nm at 1,400 rpm (1,107 lb.-ft. at 1,400 rpm) |
| Transmission | Countershaft-type PowerShift with lockup torque converter; standard 5-speed with lockup |
| Max travel speed, Range 5 forward (26.5 R 25) | 40.0 km/h (24.9 mph) |
| Heaped capacity, pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge | 4.0 m3 (5.25 cu. yd.) |
| Struck capacity, pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge | 3.4 m3 (4.5 cu. yd.) |
| Breakout force, pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge | 19 824 kg (43,704 lb.) |
| Tipping load, 40-deg. full turn, no tire deflection, pin-on Standard-Lift 4.0-m3 (EPA FT4) | 17 170 kg (37,860 lb.) |
| Operating weight, pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge (EPA FT4) | 24 907 kg (54,920 lb.) |
| Hydraulic cycle times — Standard-Lift / High-Lift | Raise 5.9 sec.; dump 1.4 sec.; lower (float down) 2.8 sec.; total 10.1 sec. |
| Fuel tank with lockable cap | 477 L (126 gal.) |
| Height to top of cab (dimension A) | 3.57 m (11 ft. 9 in.) |
| Wheelbase (dimension E) | 3.46 m (11 ft. 4 in.) |
| Standard measure tires (sheet tire table) | Michelin 26.5 R 25, 2 Star L3 |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What net horsepower does John Deere publish for the 744 P-Tier?
MW744PAU and deere.ca hero list net peak power (ISO 9249) of 236 kW (316 hp) at 1,500 rpm.
What operating weight is published for the pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge (FT4)?
24 907 kg (54,920 lb.) on MW744PAU EPA FT4 row; lower end of deere.ca hero range 24 907–26 630 kg (54,920–58,709 lb.).
What engine is listed on the OEM sheet?
JD9 PSS 6090, 9.0 L (548 cu. in.), EPA Final Tier 4 (FT4)/EU Stage V on the primary column. deere.ca Specs widget says PowerTech PSS 6090 — naming conflict recorded.
What transmission and top travel speed are published?
Countershaft-type PowerShift with lockup torque converter; standard 5-speed with lockup. Range 5 with 26.5 R 25: 40.0 km/h (24.9 mph) on MW744PAU.
What heaped bucket capacity is on the first pin-on Standard-Lift column?
4.0 m3 (5.25 cu. yd.) heaped; 3.4 m3 (4.5 cu. yd.) struck on MW744PAU.
How long is the hydraulic cycle on the sheet?
Raise 5.9 sec., dump 1.4 sec., lower (float down) 2.8 sec., total 10.1 sec. for Standard-Lift / High-Lift on MW744PAU.
What fuel and DEF tanks are published?
Fuel 477 L (126 gal.); DEF 26.3 L (6.9 gal.) for EPA FT4/EU Stage V on MW744PAU.
Are 744 X-Tier, 744K, or 724 P numbers used here?
No. This file is 744 P only (MW744PAU). Do not mix X-Tier EVT, K-Series, or sibling 724 P numbers.
