2023 John Deere 524 P

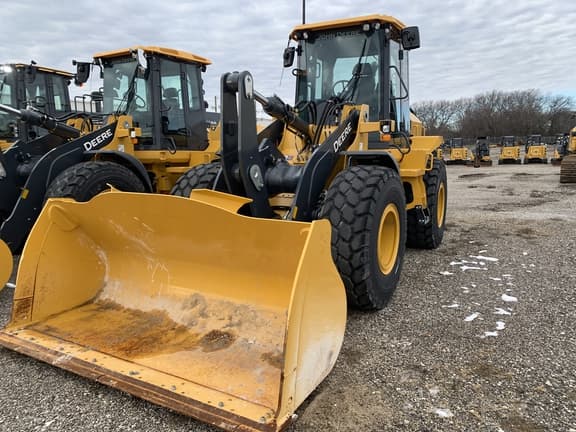

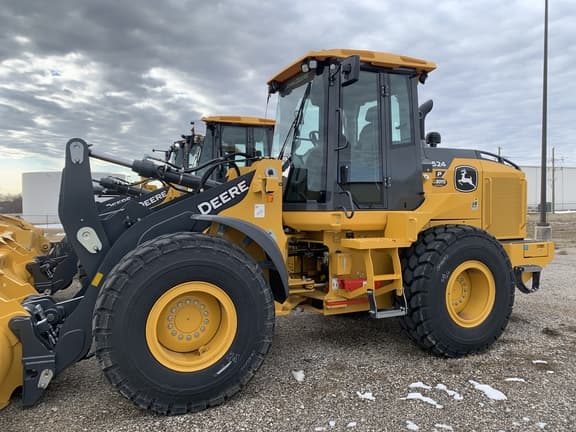

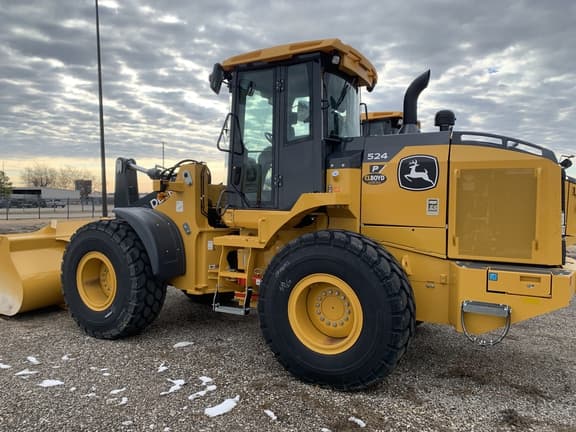

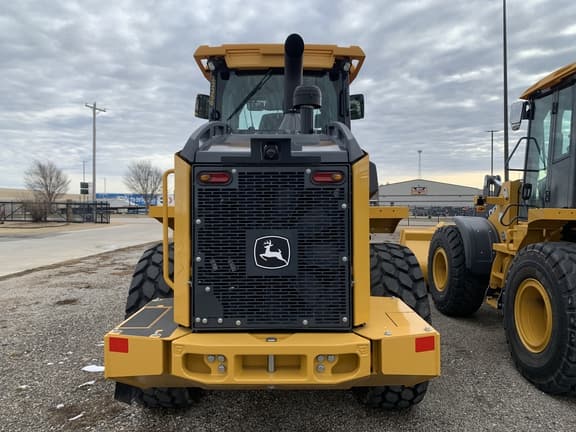

2023 John Deere 524 P wheel loader. 21 hours. Listed from Ardmore, OK. Stock 23356. Asking $209,645.
- Asking
- $209,645
- Hours
- 21
- Stock #
- 23356
- Location
- Ardmore, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 23356
- Class
- Wheel Loaders
- Engine
- 6.8L FT4 John Deere Diesel Engine
- Yard
- Ardmore, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other 524 Ps listed
Specification
| Engine manufacturer | John Deere |
|---|---|
| Engine model | John Deere PowerTech PVS 6068 |
| Displacement | 6.8 L (414 cu. in.) |
| Net peak power (ISO 9249) | 113 kW at 1,800 rpm (152 hp at 1,800 rpm) |
| Gross peak power (ISO 9249) | 120 kW at 1,800 rpm (161 hp at 1,800 rpm) |
| Net peak torque (ISO 9249) | 683 Nm at 1,100 rpm (504 lb.-ft. at 1,100 rpm) |
| Gross peak torque (ISO 9249) | 713 Nm at 1,400 rpm (526 ft.-lb. at 1,400 rpm) |
| Transmission | Countershaft-type PowerShift; standard 5-speed |
| Max travel speed, Range 5 (20.5 R 25) | 40.0 km/h (24.8 mph) |
| Heaped capacity, pin-on Z-Bar 2.1-m3 enhanced-performance bucket with bolt-on edge | 2.1 m3 (2.75 cu. yd.) |
| Struck capacity, pin-on Z-Bar 2.1-m3 enhanced-performance bucket with bolt-on edge | 1.7 m3 (2.26 cu. yd.) |
| Bucket capacity range — coupler | 1.9–3.4 m3 (2.5–4.5 cu. yd.) |
| Breakout force, pin-on Z-Bar 2.1-m3 enhanced-performance | 11 070 kg (24,406 lb.) |
| Tipping load, 40-deg. full turn, no tire deflection, pin-on Z-Bar 2.1-m3 | 8955 kg (19,742 lb.) |
| Rated operating load, 50% full-turn tipping load, no tire deflection (ISO 14397-1), pin-on Z-Bar 2.1-m3 | 4477 kg (9,871 lb.) |
| Operating weight, pin-on Z-Bar 2.1-m3 enhanced-performance with bolt-on edge | 13 123 kg (28,931 lb.) |
| Hydraulic cycle times — Z-Bar / High-Lift / High-Lift Plus | Raise 6.1 sec.; dump 2.0 sec.; lower 4.0 sec.; total 12.1 sec. |
| Fuel tank (with lockable cap) | 220 L (58 gal.) |
| Height to top of cab (dimension A), pin-on configs | 3.33 m (10 ft. 11 in.) |
| Wheelbase (dimension E) | 2.93 m (9 ft. 7 in.) |
| Standard tires (measure tire) | Michelin 20.5 R 25, 1 Star L-3 XHA2 |
Equipment on this unit

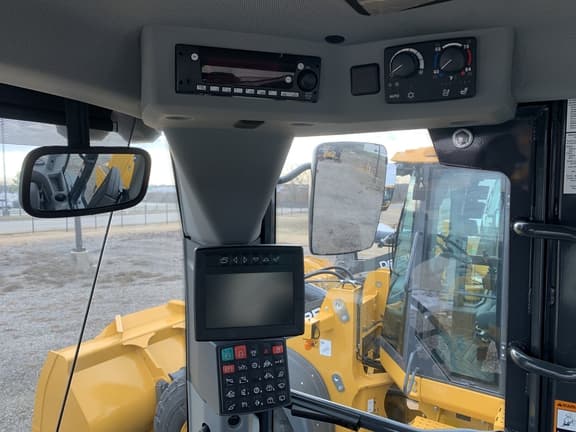

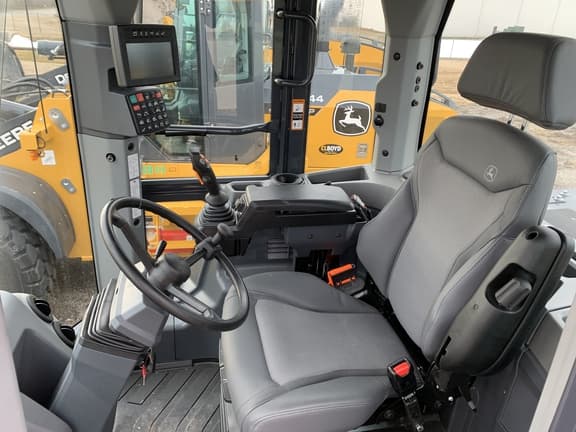

- Operators Station: Cab w/ AC
- Operators Station: 3 Spool
- Attachments: Quick Coupler
- Powertrain: Front Diff Lock
- Tires: 20.5 Tires
- Buckets: General Purpose Bkt
- Options: Aux Hydraulics
- Options: Rear Camera
Notes on this unit
- 6.8L FT4 John Deere Diesel Engine
- Z-Bar Loader Linkage

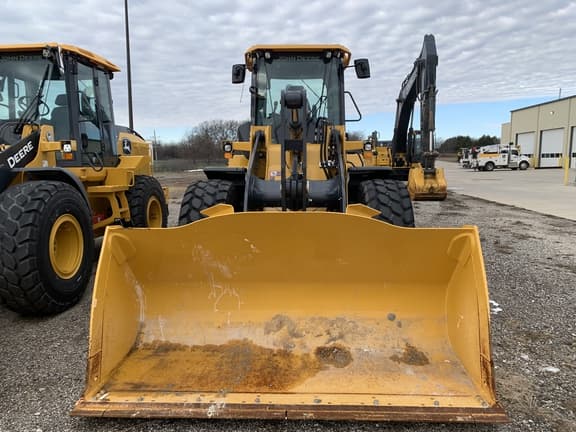

- 3 YD Enhanced Performance Coupler Bucket w/BOCE

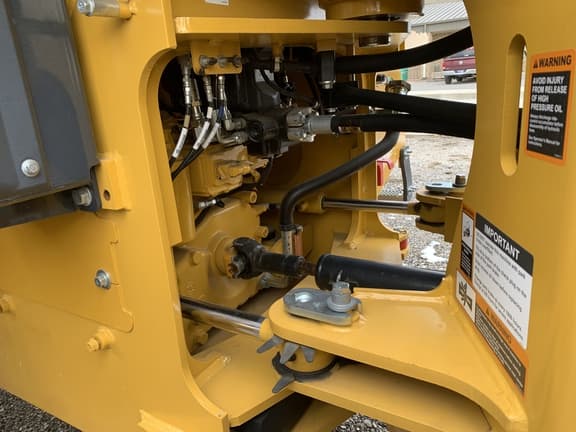

- JRB 416-Style Hydraulic Coupler
- Axle Cooling & Filter
- Bridgestone VJT 20.5R25 L3 Radial Tires
- 140 Amp Alternator
- 24V-12V 15 Amp Converter
- Halogen Work & Drive Lights
- Premium Air Suspension Heated & Ventilated Seat
- Radio
- Ride Control
- 5-Speed Powershift Transmission w/Lockup Torque Converter

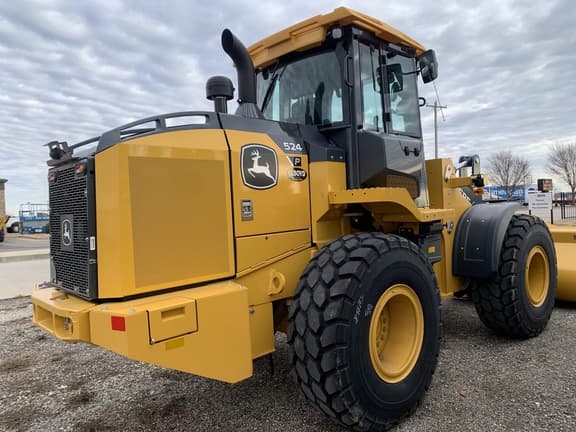

- Rear Counterweight & Hitch
- Automatic Reversing Hydraulic Fan
- Cabin Fresh Air Intake Precleaner
- Centrifugal Engine Air Intake Precleaner
- Transmission & Bottom Guards
- Engine Compartment Service Light
- Environmental Drain
- Joystick Hydraulic Control
- Left Side Steps
- JDLink Telematics w/Machine Alert Monitoring Services
- Extended Comprehensive Warranty
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What net horsepower does John Deere publish for the 524 P-Tier?
MW524PAU spec sheet and the deere.ca hero list net peak power (ISO 9249) of 113 kW (152 hp) at 1,800 rpm.
What operating weight is published for the pin-on Z-Bar 2.1-m3?
13 123 kg (28,931 lb.) on MW524PAU and deere.ca specificationData, with standard equipment, ROPS cab, full fuel, and 79-kg (175 lb.) operator.
What bucket capacity is published?
Pin-on heaped on the Z-Bar 2.1-m3 column is 2.1 m3 (2.75 cu. yd.); struck 1.7 m3 (2.26 cu. yd.). Coupler range on the sheet and deere.ca hero is 1.9–3.4 m3 (2.5–4.5 cu. yd.).
What rated operating load is published for that pin-on Z-Bar 2.1-m3?
50% of 40-deg. full-turn tipping load, no tire deflection, ISO 14397-1: 4477 kg (9,871 lb.). Full-turn tipping load no tire deflection: 8955 kg (19,742 lb.). Deere attachments only.
What engine is listed?
John Deere PowerTech PVS 6068, 6.8 L (414 cu. in.), EPA Final Tier 4/EU Stage V.
How long is the Z-Bar hydraulic cycle on the spec sheet?
Raise 6.1 sec., dump 2.0 sec., lower (power down) 4.0 sec., total 12.1 sec. on MW524PAU for Z-Bar / High-Lift / High-Lift Plus.
What transmission and top travel speed are published?
Countershaft-type PowerShift, standard 5-speed. Range 5 with 20.5 R 25 tires: 40.0 km/h (24.8 mph).
What fuel tank is on the spec sheet?
220 L (58 gal.) on MW524PAU and deere.ca specificationData.
What are the standard tires?
Michelin 20.5 R 25, 1 Star L-3 XHA2. Width over tires 2546 mm (100.2 in.) on the sheet.
