2022 John Deere 244L

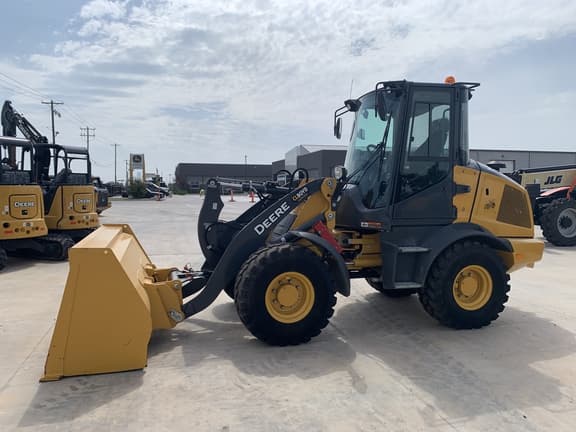

2022 John Deere 244L wheel loader. 213 hours. Listed from Oklahoma City, OK. Stock 23863. Asking $107,500.
- Asking
- $107,500
- Hours
- 213
- Stock #
- 23863
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 23863
- Class
- Wheel Loaders
- Engine
- Yanmar 3.3L 73 HP FT4 Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| Engine manufacturer and model | Yanmar 4TNV98CT |
|---|---|
| Displacement | 3.3 L (203 cu. in.) |
| Net peak power at 2,400 rpm (SAE J1349 / ISO 9249) | 52 kW (71 hp) |
| Gross rated power at 2,400 rpm (ISO 14396) | 54 kW (73 hp) |
| Peak torque at 1,560 rpm | 280 Nm (206 lb.-ft.) |
| Transmission | Hydrostatic (HST); 2 speed ranges; Smooth AutoShift up to 38 km/h (23 mph) |
| Travel speed Gear 2 (365/70R18) | 38 km/h (23.5 mph) |
| Heaped capacity, ISO quick-coupler 0.8-m3 | 0.8 m3 (1.0 cu. yd.) |
| Breakout force (SAE J732C), ISO coupler 0.8-m3 | 4895 kg (10,792 lb.) |
| Tipping load, full turn (SAE), ISO coupler 0.8-m3 | 3700 kg (8,157 lb.) |
| Operating weight, ISO quick-coupler with 0.8-m3 | 5560 kg (12,258 lb.) |
| Hydraulic cycle times | Raise 4.9 sec.; dump 1.7 sec.; lower 3.5 sec.; total 10.1 sec. |
| Fuel tank | 90 L (23.8 gal.) |
| Height to top of cab (dimension A) | 2.75 m (9 ft. 0 in.) |
| Wheelbase (dimension E) | 2.15 m (7 ft. 1 in.) |
| Standard tires (operating-weight basis) | 365/70R18 |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What net horsepower does John Deere publish for the 244L?
DKA244LDR lists net peak power at 2,400 rpm (SAE J1349 / ISO 9249) of 52 kW (71 hp). Gross rated power (ISO 14396) is 54 kW (73 hp).
What operating weight is published for the ISO quick-coupler 0.8-m3?
5560 kg (12,258 lb.) on DKA244LDR with standard equipment, 365/70R18 tires, standard counterweight, cab, full fuel, and 79-kg (175 lb.) operator.
What engine is listed?
Yanmar 4TNV98CT, 3.3 L (203 cu. in.), EPA Final Tier 4 (FT4).
What transmission and travel speeds are published?
Hydrostatic (HST) with 2 speed ranges. Gear 1 18 km/h (11.0 mph); Gear 2 38 km/h (23.5 mph) with 365/70R18 on DKA244LDR. Smooth AutoShift listed up to 38 km/h (23 mph).
Is this the same as a 244 P-Tier?
No. This pack is 244L L-Series only (DKA244LDR). Do not mix MW244PAU 244 P-Tier numbers.
What bucket capacity is on the first ISO coupler column?
Heaped 0.8 m3 (1.0 cu. yd.); second column heaped 1.1 m3 (1.4 cu. yd.) on DKA244LDR.
How long is the hydraulic cycle?
Raise 4.9 sec., dump 1.7 sec., lower 3.5 sec., total 10.1 sec. on DKA244LDR.
What fuel tank is published?
90 L (23.8 gal.) on DKA244LDR.
