2018 Komatsu WA380 8

6,730 hrs · Oklahoma City · Stock 25702

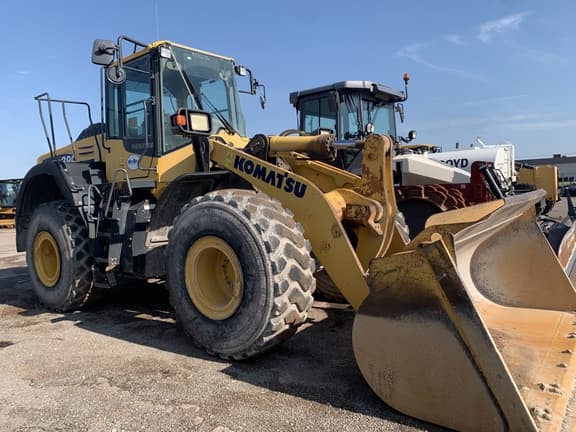

2018 Komatsu WA380 8 wheel loader. 6,730 hours. Listed from Oklahoma City, OK. Stock 25702. Asking $110,000.

Asking: $110,000
Hours: 6,730
Stock #: 25702

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 25702
Class: Wheel Loaders
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Engine model	Komatsu SAA6D107E-3 (EPA Tier 4 Final)
Net horsepower (ISO 9249 / SAE J1349)	143 kW @ 2,100 rpm (191 HP @ 2,100 rpm)
Gross horsepower (SAE J1995)	143 kW (192 HP)
Piston displacement	6.69 L (408 in³)
Bore x stroke	107 mm x 124 mm (4.21 in. x 4.88 in.)
Bucket capacity	2.7 – 3.3 m³ (3.5 – 4.3 yd³)
Operating weight	18,385 – 19,020 kg (40,532 – 41,932 lb)
Full-turn tip load (range)	10,407 – 13,440 kg (22,943 – 29,630 lb)
Loader hydraulic pump capacity @ rated rpm	205 L/min (54.15 US gpm)
Loader relief valve setting	31.4 MPa (4,550 psi)
Hydraulic cycle times (rated load)	Raise 5.9 s; dump 1.8 s; lower (empty) 3.3 s
Transmission	Automatic, full-powershift, countershaft; 4F/4R
Travel speed 4th forward (lock-up ON)	37.5 km/h (23.3 mph)
Fuel tank	300 L (79.3 US gal)
DEF tank	36 L (9.5 US gal)
Wheelbase	3300 mm (10 ft 10 in)
Minimum turning radius (center of outside tire)	6320 mm (20 ft 9 in)

F.A.Q.

2018 Komatsu WA380 8 — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

Is this a WA380-6 or WA380-7?

No. This card is WA380-8 (dash-8) only — SAA6D107E-3 Tier 4 Final, 191 HP net. Do not use -6/-7 sheets.

Is WA380-8 WH the same?

Related waste-handler variant shares power/weight headlines on komatsu.com but has different application equipment. This card is standard WA380-8.

Which bucket column?

OEM publishes a multi-bucket table (capacities/tip loads/breakout vary by bucket). Card uses published range headlines; pick exact column only if listing bucket is known.
