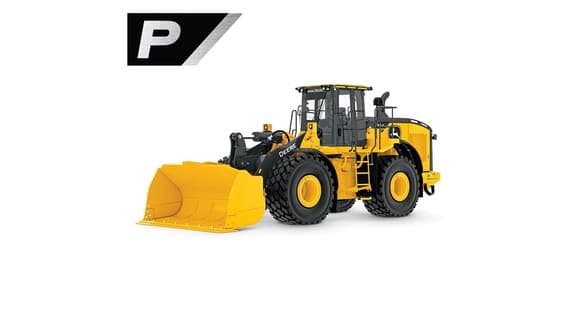

Name: 2026 John Deere 744 P
Brand: John Deere
Price: 511249 USD
Availability: InStock

Question 1

What net horsepower does John Deere publish for the 744 P-Tier?

Accepted Answer

MW744PAU and deere.ca hero list net peak power (ISO 9249) of 236 kW (316 hp) at 1,500 rpm.

Question 2

What operating weight is published for the pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge (FT4)?

Accepted Answer

24 907 kg (54,920 lb.) on MW744PAU EPA FT4 row; lower end of deere.ca hero range 24 907–26 630 kg (54,920–58,709 lb.).

Question 3

What engine is listed on the OEM sheet?

Accepted Answer

JD9 PSS 6090, 9.0 L (548 cu. in.), EPA Final Tier 4 (FT4)/EU Stage V on the primary column. deere.ca Specs widget says PowerTech PSS 6090 — naming conflict recorded.

Question 4

What transmission and top travel speed are published?

Accepted Answer

Countershaft-type PowerShift with lockup torque converter; standard 5-speed with lockup. Range 5 with 26.5 R 25: 40.0 km/h (24.9 mph) on MW744PAU.

Question 5

What heaped bucket capacity is on the first pin-on Standard-Lift column?

Accepted Answer

4.0 m3 (5.25 cu. yd.) heaped; 3.4 m3 (4.5 cu. yd.) struck on MW744PAU.

Question 6

How long is the hydraulic cycle on the sheet?

Accepted Answer

Raise 5.9 sec., dump 1.4 sec., lower (float down) 2.8 sec., total 10.1 sec. for Standard-Lift / High-Lift on MW744PAU.

Question 7

What fuel and DEF tanks are published?

Accepted Answer

Fuel 477 L (126 gal.); DEF 26.3 L (6.9 gal.) for EPA FT4/EU Stage V on MW744PAU.

Question 8

Are 744 X-Tier, 744K, or 724 P numbers used here?

Accepted Answer

No. This file is 744 P only (MW744PAU). Do not mix X-Tier EVT, K-Series, or sibling 724 P numbers.

Unit	Hours	Asking
This unit	374	$511,249
2023	3,362	$353,000
2023	5,152	$355,000

Engine manufacturer / model (EPA FT4/EU Stage V column)	JD9 PSS 6090
Displacement	9.0 L (548 cu. in.)
Net peak power (ISO 9249)	236 kW at 1,500 rpm (316 hp at 1,500 rpm)
Net peak torque (ISO 9249)	1501 Nm at 1,400 rpm (1,107 lb.-ft. at 1,400 rpm)
Transmission	Countershaft-type PowerShift with lockup torque converter; standard 5-speed with lockup
Max travel speed, Range 5 forward (26.5 R 25)	40.0 km/h (24.9 mph)
Heaped capacity, pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge	4.0 m3 (5.25 cu. yd.)
Struck capacity, pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge	3.4 m3 (4.5 cu. yd.)
Breakout force, pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge	19 824 kg (43,704 lb.)
Tipping load, 40-deg. full turn, no tire deflection, pin-on Standard-Lift 4.0-m3 (EPA FT4)	17 170 kg (37,860 lb.)
Operating weight, pin-on Standard-Lift 4.0-m3 general-purpose bolt-on edge (EPA FT4)	24 907 kg (54,920 lb.)
Hydraulic cycle times — Standard-Lift / High-Lift	Raise 5.9 sec.; dump 1.4 sec.; lower (float down) 2.8 sec.; total 10.1 sec.
Fuel tank with lockable cap	477 L (126 gal.)
Height to top of cab (dimension A)	3.57 m (11 ft. 9 in.)
Wheelbase (dimension E)	3.46 m (11 ft. 4 in.)
Standard measure tires (sheet tire table)	Michelin 26.5 R 25, 2 Star L3
