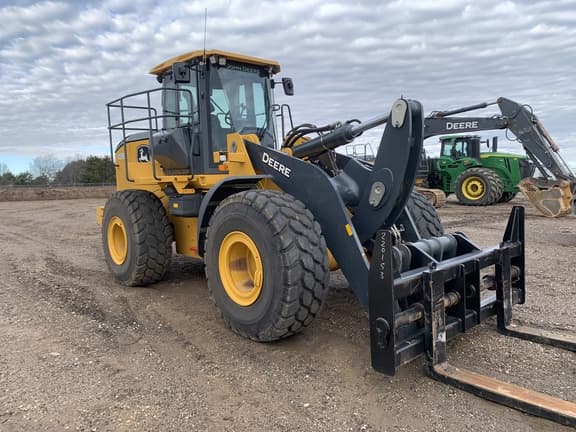

2023 John Deere 724 P
2023 John Deere 724 P wheel loader. 2,264 hours. Listed from Oklahoma City, OK. Stock 23353. Asking $291,000.
- Asking
- $291,000
- Hours
- 2,264
- Stock #
- 23353
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 23353
- Class
- Wheel Loaders
- Engine
- 9.0L John Deere FT4 Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| Engine manufacturer and model | John Deere PowerTech PSS 6090 |
|---|---|
| Displacement | 9.0 L (548 cu. in.) |
| Net peak power (ISO 9249) | 200 kW at 1,800 rpm (268 hp at 1,800 rpm) |
| Gross peak power (ISO 9249) | 206 kW at 1,800 rpm (276 hp at 1,800 rpm) |
| Net peak torque (ISO 9249) | 1290 Nm at 1,400 rpm (951 lb.-ft. at 1,400 rpm) |
| Transmission | Countershaft-type PowerShift; standard 5-speed with lockup torque converter |
| Max travel speed, Range 5 forward (23.5 R 25), 5-speed with lockup | 40.0 km/h (24.9 mph) |
| Heaped capacity, pin-on Z-Bar 3.6-m3 (4.76 cu. yd.) with bolt-on edge | 3.6 m3 (4.76 cu. yd.) |
| Bucket capacity range — coupler | 3.1–3.8 m3 (4.0–5.0 cu. yd.) |
| Breakout force, pin-on Z-Bar 3.6-m3 with bolt-on edge | 15 988 kg (35,248 lb.) |
| Tipping load, 40-deg. full turn, no tire deflection, pin-on Z-Bar 3.6-m3 | 14 204 kg (31,315 lb.) |
| Operating weight, pin-on Z-Bar 3.6-m3 with bolt-on edge | 19 825 kg (43,707 lb.) |
| Hydraulic cycle times — Z-Bar | Raise 5.3 sec.; dump 1.4 sec.; lower (power down) 3.8 sec.; total 10.5 sec. |
| Fuel tank (with lockable cap) | 351 L (92.6 gal.) |
| Height to top of cab (dimension A) | 3.45 m (11 ft. 4 in.) |
| Wheelbase (dimension E) | 3.31 m (10 ft. 10 in.) |
| Standard tires (measure tire) | Michelin 23.5 R 25, 1 Star L-3 |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What net horsepower does John Deere publish for the 724 P-Tier?
MW724PAU and deere.ca hero list net peak power (ISO 9249) of 200 kW (268 hp) at 1,800 rpm. Gross peak power on the same sheet is 206 kW (276 hp) at 1,800 rpm.
What operating weight is published for the pin-on Z-Bar 3.6-m3?
19 825 kg (43,707 lb.) on MW724PAU; deere.ca hero lower end of 19 825–19 859 kg (43,707–43,783 lb.).
What bucket capacity is published?
Pin-on range 3.2–3.8 m3 (4.25–5.0 cu. yd.); coupler range 3.1–3.8 m3 (4.0–5.0 cu. yd.) on MW724PAU.
What engine is listed?
John Deere PowerTech PSS 6090, 9.0 L (548 cu. in.), EPA Final Tier 4/EU Stage V.
What transmission and top travel speed are published?
Countershaft-type PowerShift, standard 5-speed with lockup torque converter. Range 5 with 23.5 R 25 on MW724PAU: 40.0 km/h (24.9 mph).
How long is the Z-Bar hydraulic cycle?
Raise 5.3 sec., dump 1.4 sec., lower (power down) 3.8 sec., total 10.5 sec. on MW724PAU.
What fuel tank is on the spec sheet?
351 L (92.6 gal.) on MW724PAU.
Are 744 P or 644 P numbers used here?
No. This file is 724 P only (MW724PAU). Do not mix sibling mid/large P-Tier models.
