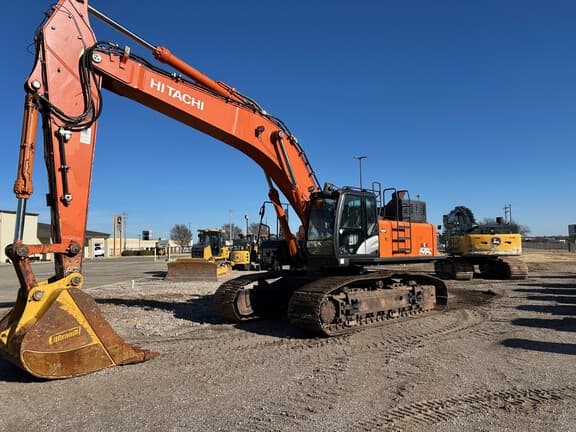

2020 Hitachi ZX470LC 6
2020 Hitachi ZX470LC 6 excavator. 6,179 hours. Listed from Oklahoma City, OK. Stock 23649. Asking $220,000.
- Asking
- $220,000
- Hours
- 6,179
- Stock #
- 23649
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 23649
- Class
- Excavators
- Engine
- FT4 Isuzu Diesel Engine (No DPF)
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| OEM product name | Hitachi ZX470LC-6 |
|---|---|
| Series | ZAXIS Dash-6 production-class |
| Engine manufacturer and model | Isuzu 6UZ1 |
| Non-road emission standards | EPA Final Tier 4 / EU Stage IV |
| Net rated power (ISO 9249) | 270 kW @ 2,000 rpm (362 hp @ 2,000 rpm) |
| Cylinders | 6 |
| Displacement | 9.84 L (600 cu. in.) |
| Aspiration | Turbocharged, air-to-air charge-air cooler |
| SAE operating weight (sheet config) | 50 260 kg (110,804 lb) |
| Travel speed — low / high | 3.9 km/h / 5.5 km/h (2.4 mph / 3.4 mph) |
| Drawbar pull | 33 537 kg (73,937 lb) |
| Main pumps maximum rated flow | 400 L/m × 2 (106 gpm × 2) |
| Implement / travel / swing pressure | 31 900 / 35 300 / 28 400 kPa (4,627 / 5,120 / 4,119 psi) |
| Power boost pressure | 35 300 kPa (5,120 psi) |
| Swing speed | 9.5 rpm |
| Swing torque | 148 000 Nm (109,159 lb-ft) |
| Ground pressure — 30 in / 36 in shoes | 72.1 kPa / 60.1 kPa (10.5 psi / 8.7 psi) |
| Fuel tank | 675 L (178 gal) |
| DEF tank | 95 L (25.1 gal) |
| Hydraulic system | 510 L (135 gal) |
| Arm digging force ISO — 12 ft 10 in (3.9 m) arm | 201 kN (45,187 lb) |
| Bucket digging force ISO — 12 ft 10 in (3.9 m) arm | 286 kN (64,295 lb) |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
Does a year-appropriate ZX470LC-6 OEM sheet exist (not ZX470LC-5G)?
Yes. Opened Hitachi ZAXIS | DASH-6 PRODUCTION-CLASS EXCAVATORS ZX470LC-6 brochure (digital-only 17-08) hosted by Wajax (HTTP 200). Also opened Tracey Road Hitachi_ZX470LC-6_Brochure.pdf (HTTP 200). Both are Dash-6 ZX470LC-6 — not ZX470-5G / ZX470LC-5G.
What engine and net power are published?
Isuzu 6UZ1, EPA Final Tier 4 / EU Stage IV, Net Rated Power (ISO 9249) 270 kW (362 hp) @ 2,000 rpm; 9.84 L (600 cu. in.), 6 cylinders.
What SAE operating weight is published?
50 260 kg (110,804 lb) with full fuel; 79-kg (175 lb) operator; 2.34 m³ (3.06 cu. yd.) bucket; 3.9 m (12 ft 10 in) arm; 8400 kg (18,519 lb) counterweight; 900 mm (36 in) triple semi-grouser shoes.
Was hitachicm.com usable?
hitachicm.com US product/search still HTTP 403 from this host on 2026-09-06. Numbers taken only from opened Hitachi-branded Dash-6 ZX470LC-6 dealer-hosted OEM brochure bytes — not from ZX470-5G MENA literature.
Mix-guard vs ZX470LC-5G?
Do not substitute ZX470-5G / ZX470LC-5G sheets (e.g. hitachicm MENA ZX470-5G_KS-EN190R.pdf, 235 kW / 315 HP class). This card is Dash-6 ZX470LC-6 only.
