Name: 2018 John Deere 245G LC
Brand: John Deere
Price: 125000 USD
Availability: InStock

Question 1

What engine and horsepower does the John Deere 245G LC have?

Accepted Answer

Isuzu 4HK1, 4 cylinders, 5.2 L (317 cu. in.), EPA Final Tier 4/EU Stage IV. Net rated power (ISO 9249) is 119 kW (159 hp) at 2,000 rpm per DKA135245G (21-10). Do not use 245 P-Tier numbers.

Question 2

What is the maximum digging depth of the 245G LC?

Accepted Answer

With the 2.91-m (9 ft. 7 in.) arm, maximum digging depth is 6.62 m (21 ft. 8 in.). At a 2.44-m (8 ft. 0 in.) flat bottom it is 6.41 m (20 ft. 10 in.).

Question 3

What does the 245G LC weigh?

Accepted Answer

Operating weight with 800-mm (32 in.) shoes is 25 800 kg (56,830 lb.); with 700-mm (28 in.) shoes 25 500 kg (56,170 lb.) on the FT4 sheet config (48-in. HD bucket, 2.91-m arm, 7280-kg counterweight).

Question 4

What is the tail-swing radius?

Accepted Answer

Rear-end length / swing radius is 1.68 m (5 ft. 6 in.) — reduced-tail-swing design.

Question 5

What are the fuel and DEF capacities?

Accepted Answer

Fuel tank 380 L (100 gal.). DEF tank 16 L (16.9 qt.).

Question 6

Does the same sheet cover 2018 and 2022?

Accepted Answer

Yes for FT4 units. 245G LC moved to FT4 in mid-2016. DKA135245G (21-10) is not year-coded. Do not use the older IT4 DKAX135245G (12-10) sheet for these lot units.

Engine manufacturer and model	Isuzu 4HK1
Non-road emission standard	EPA Final Tier 4/EU Stage IV
Net rated power (ISO 9249)	119 kW at 2,000 rpm (159 hp at 2,000 rpm)
Cylinders	4
Displacement	5.2 L (317 cu. in.)
Operating weight, 800-mm (32 in.) shoes	25 800 kg (56,830 lb.)
Maximum digging depth, 2.91-m (9 ft. 7 in.) arm	6.62 m (21 ft. 8 in.)
Maximum reach, 2.91-m arm	10.11 m (33 ft. 4 in.)
Bucket digging force (ISO), 2.91-m arm	158 kN (35,520 lb.)
Arm digging force (ISO), 2.91-m arm	114 kN (25,630 lb.)
Rear-end length / swing radius	1.68 m (5 ft. 6 in.)
Fuel tank	380 L (100 gal.)
DEF tank	16 L (16.9 qt.)
Maximum travel speed, high	5.5 km/h (3.4 mph)
Drawbar pull	20 702 kg (45,640 lb.)

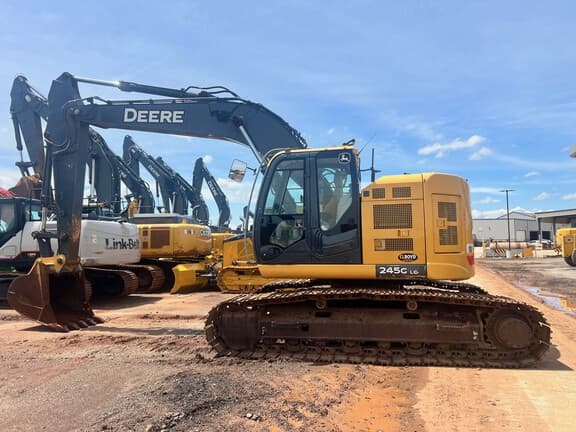

2018 John Deere 245G LC
