2017 John Deere 85G
2017 John Deere 85G excavator. 4,062 hours. Listed from Oklahoma City, OK. Stock 240390. Asking $75,000.
- Asking
- $75,000

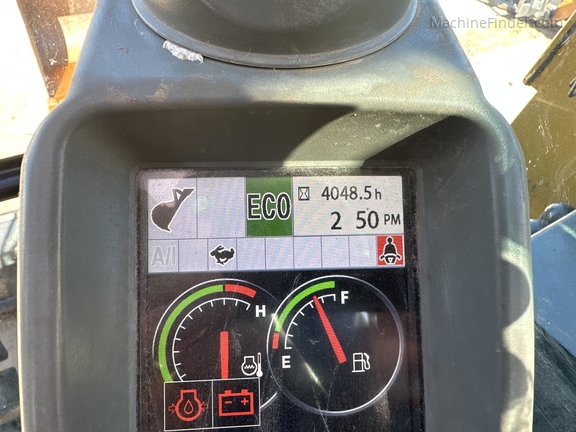

- Hours
- 4,062
- Stock #
- 240390
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 240390
- Class
- Excavators
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| Engine manufacturer and model | Yanmar 4TNV98C-WHBW |
|---|---|
| Non-road emission standard | EPA Final Tier 4 / EU Stage IV |
| Displacement | 3.3 L (202 cu. in.) |
| Net power (ISO 9249) | 42.4 kW at 2,000 rpm (56.9 hp at 2,000 rpm) |
| Cylinders | 4 |
| Maximum travel speed — high | 5.0 km/h (3.1 mph) |
| Maximum travel speed — low | 3.1 km/h (1.9 mph) |
| Drawbar pull | 6650 kgf (14,661 lb.) |
| Arm length (standard) | 2.12 m (6 ft. 11 in.) |
| Arm digging force (ISO) | 30.7 kN (6,902 lb.) |
| Bucket digging force (ISO) | 46.6 kN (10,476 lb.) |
| Maximum reach | 7.70 m (25 ft. 3 in.) |
| Maximum digging depth | 4.51 m (14 ft. 10 in.) |
| Maximum dumping height | 5.08 m (16 ft. 8 in.) |
| Tail swing radius | 1.49 m (4 ft. 11 in.) |
| Operating weight — 2220-mm blade + 450-mm rubber pads | 8729 kg (19,244 lb.) |
| Fuel tank | 120 L (31.7 gal.) |
| Swing speed | 10.5 rpm |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
Is this 85G, not 75G or 85D?
Yes. Specs from 75G|85G Mid-Size G-Series sheet, 85G columns only (Yanmar 4TNV98C-WHBW, 1408-kg counterweight, 8729 kg / 19,244 lb. with rubber pads). Do not mix 75G (lighter) or D-Series 85D.
What net horsepower is published?
Net power (ISO 9249) 42.4 kW (56.9 hp) at 2,000 rpm.
What dig and dump dimensions are published with the 2.12-m arm?
Max digging depth 4.51 m (14 ft. 10 in.); max dumping height 5.08 m (16 ft. 8 in.); max reach 7.70 m (25 ft. 3 in.).
Is the OEM sheet year-coded to 2017?
No. G-Series mid-size range sheet is not model-year coded. Year confidence: medium for a 2017 FT4 unit.
