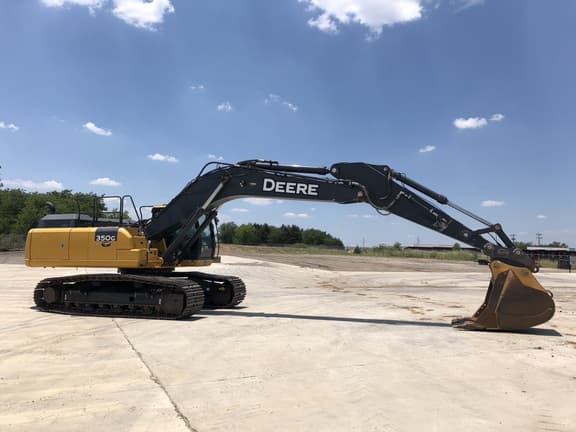

Name: 2019 John Deere 350G LC
Brand: John Deere
Price: 209000 USD
Availability: InStock

Question 1

What engine and horsepower does the John Deere 350G LC have?

Accepted Answer

John Deere PowerTech PSS 9.0 L (549 cu. in.), 6 cylinders, EPA Final Tier 4/EU Stage IV. Net rated power (ISO 9249) is 271 hp (202 kW) at 1,900 rpm.

Question 2

What is the maximum digging depth of the 350G LC?

Accepted Answer

With the 4.0-m (13 ft. 1 in.) arm and 6.4-m (21 ft. 0 in.) boom, maximum digging depth is 26 ft. 10 in. (8.18 m). At a 2.44-m (8 ft. 0 in.) flat bottom it is 26 ft. 5 in. (8.04 m).

Question 3

What does the 350G LC weigh?

Accepted Answer

Operating weight is 79,655 lb. (36 131 kg) with full fuel, a 79-kg (175-lb.) operator, 1.84-m³ (2.41 cu. yd.) 54-in. bucket, 4.0-m arm, 6917-kg counterweight, and 800-mm (32 in.) triple semi-grouser shoes.

Question 4

What are the bucket and arm dig forces on the long arm?

Accepted Answer

With the 4.0-m (13 ft. 1 in.) arm, ISO bucket digging force is 55,303 lb. (246.0 kN) and ISO arm digging force is 35,745 lb. (159.0 kN).

Question 5

What travel speeds and drawbar pull are listed?

Accepted Answer

Two-speed propel with automatic shift: high 3.1 mph (5.0 km/h), low 2.0 mph (3.2 km/h). Drawbar pull is 66,900 lb. (30 350 kg).

Question 6

What are the fuel and DEF capacities?

Accepted Answer

Fuel tank is 166 gal. (628 L). Diesel Exhaust Fluid (DEF) tank is 9.3 gal. (35 L).

Question 7

How many hours are on the primary Lawton unit (stock 22817)?

Accepted Answer

2,333 hours.

Question 8

What is the asking price and location for stock 22817?

Accepted Answer

$209,000 in Lawton, OK. Listing 9063388 / stock 22817. A second 2019 350G LC is stock 22828 in Oklahoma City at $209,000 / 3,893 hours (listing 9090910).

Engine manufacturer and model	John Deere PowerTech PSS 9.0 L
Non-road emission standard	EPA Final Tier 4/EU Stage IV
Net rated power (ISO 9249)	202 kW at 1,900 rpm (271 hp at 1,900 rpm)
Cylinders	6
Displacement	9.0 L (549 cu. in.)
Aspiration	Series turbocharged, air-to-air charge-air cooler
Maximum travel speed, high	5.0 km/h (3.1 mph)
Maximum travel speed, low	3.2 km/h (2.0 mph)
Drawbar pull	30 350 kg (66,900 lb.)
Main pumps / maximum rated flow	2 variable-displacement pumps; 288 L/m x 2 (2 variable-displacement pumps; 76.1 gpm x 2)
Ground pressure, 800-mm (32 in.) triple semi-grouser shoes	50.1 kPa (7.27 psi)
Swing speed	10.7 rpm
Swing torque	120 000 Nm (88,500 lb.-ft.)
Fuel tank	628 L (166 gal.)
Diesel Exhaust Fluid (DEF) tank	35 L (9.3 gal.)
Operating weight	36 131 kg (79,655 lb.)
Maximum digging depth, 4.0-m (13 ft. 1 in.) arm	8.18 m (26 ft. 10 in.)
Maximum digging depth at 2.44-m (8 ft. 0 in.) flat bottom, 4.0-m arm	8.04 m (26 ft. 5 in.)
Maximum reach, 4.0-m (13 ft. 1 in.) arm	11.86 m (38 ft. 11 in.)
Maximum reach at ground level, 4.0-m (13 ft. 1 in.) arm	11.67 m (38 ft. 3 in.)
Bucket digging force (ISO), 4.0-m arm	246.0 kN (55,303 lb.)
Arm digging force (ISO), 4.0-m arm	159.0 kN (35,745 lb.)
Tail-swing radius / rear-end length	3.60 m (11 ft. 10 in.)
Overall length, 4.0-m (13 ft. 1 in.) arm	11.29 m (37 ft. 0 in.)
Overall width with 800-mm (32 in.) shoes	3.39 m (11 ft. 2 in.)
Cab height	3.14 m (10 ft. 4 in.)
