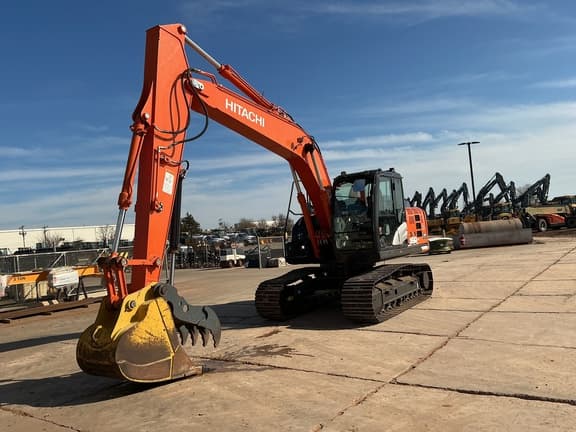

2021 Hitachi ZX160LC 6
2021 Hitachi ZX160LC 6 excavator. 1,894 hours. Listed from Oklahoma City, OK. Stock 26343. Asking $132,044.
- Asking
- $132,044
- Hours
- 1,894
- Stock #
- 26343
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 26343
- Class
- Excavators
- Engine
- Isuzu 3.0L 105 HP Variable Geometry Turbocharged & Intercooled FT4 Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| OEM product name | Hitachi ZX160LC-6 |
|---|---|
| Engine manufacturer and model | Isuzu 4JJ1 |
| Engine type | 4-cycle water-cooled, common rail direct injection |
| Aspiration / aftertreatment | Variable geometry turbocharged, intercooled, cooled EGR; DOC and SCR |
| Non-road emission standard | EPA Final Tier 4 / EU Stage IV |
| Rated power ISO 14396: 2002 Gross | 86 kW at 2,200 rpm (115 hp at 2,200 rpm) |
| Rated power ISO 9249: 2007 Net | 82.3 kW at 2,200 rpm (110 hp at 2,200 rpm) |
| Maximum torque | 375 Nm at 1,800 rpm (277 lbf-ft at 1,800 rpm) |
| Piston displacement | 3 L (183 cu. in.) |
| Operating weight (28 in / 700 mm triple grouser) | 17,800 kg (39,242 lb) |
| Ground pressure (28 in / 700 mm shoes) | 37 kPa (5.4 psi) |
| Max. digging reach (on ground) — arm 10 ft 1 in (3.08 m) | 9,160 mm (30 ft 1 in) |
| Max. digging depth — arm 10 ft 1 in (3.08 m) | 6,490 mm (21 ft 4 in) |
| Max. digging reach — arm 10 ft 1 in (3.08 m) | 9,330 mm (30 ft 7 in) |
| Bucket digging force ISO 6015: 2006 (power boost) | 112 kN (25,180 lbf) |
| Arm crowd force ISO 6015: 2006 (power boost) | 81 kN (18,210 lbf) |
| Swing speed | 13.3 rpm |
| Swing torque | 44 kNm (32,353 lbf-ft) |
| Travel speed — high / low | 0 to 5.1 km/h / 0 to 3.3 km/h (0 to 3.2 mph / 0 to 2.1 mph) |
| Fuel tank | 285 L (75.3 gal) |
| DEF/AdBlue tank | 35 L (9.2 gal) |
| Hydraulic system capacity | 210 L (55.5 gal) |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine and net power does the ZX160LC-6 OEM brochure publish?
Hitachi ZX160LC-6 SPECIFICATIONS in the ZAXIS-6 brochure list Isuzu 4JJ1, EPA Final Tier 4 / EU Stage IV; ISO 14396 Gross 115 hp (86 kW) and ISO 9249 Net 110 hp (82.3 kW) at 2,200 rpm. Cover summary prints Net Power 110.4 hp (82.3 kW) @ 2,200 rpm — same 82.3 kW net.
What operating weight is published?
39,242 lb (17,800 kg) with 28 in (700 mm) triple grouser shoes, including 0.7 yd³ (0.50 m³) bucket 1,100 lb (499 kg) and counterweight 7,055 lb (3,210 kg).
What digging depth / reach are published for the 10 ft 1 in (3.08 m) arm?
Max. digging depth 21 ft 4 in (6,490 mm); max. digging reach on ground 30 ft 1 in (9,160 mm); max. digging reach 30 ft 7 in (9,330 mm).
Why is the source a Cowin PDF instead of hitachicm.com?
hitachicm.com product page and brochure path returned HTTP 403 from this research host on 2026-09-06. Opened the identical Hitachi brochure filename ZX130-6_ZX135LC-6_ZX160LC-6_Excavator_Brochure.pdf (HTTP 200) from authorized dealer Cowin; numbers taken only from that opened PDF.
How does Boyd’s listing engine string relate?
Listing essentials print Isuzu 3.0L 105 HP FT4 VGT. OEM publishes 3 L Isuzu 4JJ1 FT4 with net 110 hp / gross 115 hp — use OEM sheet, not the Boyd 105 HP marketing string, for the card.
