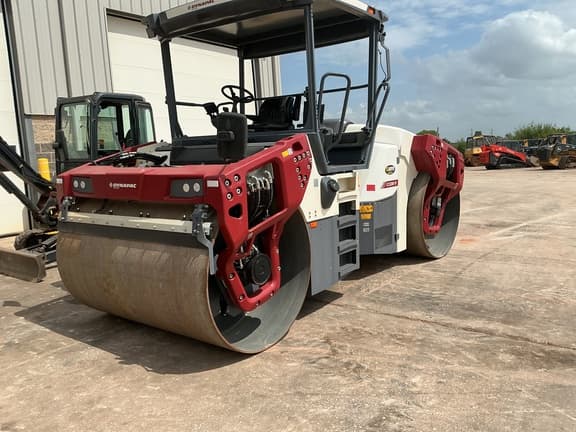

2023 Dynapac CC5200 IV

377 hrs · Oklahoma City · Stock 26854

2023 Dynapac CC5200 IV compaction equipment. 377 hours. Listed from Oklahoma City, OK. Stock 26854. Asking $135,000.

Asking: $135,000
Hours: 377
Stock #: 26854

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 26854
Class: Compaction Equipment
Engine: Cummins QSB 3.8L 130 HP FT 4 Diesel Engine
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

OEM product name	Dynapac CC5200 VI (Dynapac CC5200 VI (lot printed CC5200 IV))
Operating mass (incl. ROPS)	11800 kg (26,000 lbs)
Max. operating mass	14890 kg (32,800 lbs)
Module mass (front/rear)	5900 kg / 5900 kg (13,000 lbs / 13,000 lbs)
Drum / compaction width	1950 mm (77 in)
Speed range	0-12 km/h (0-7.5 mph)
Primary engine	Cummins F3.8 V, 100 kW @ 2200 rpm (Cummins F3.8 V, 135 hp @ 2,200 rpm)
Fuel tank	180 l (48 gal)
DEF tank	15 l (4 gal)
Centrifugal force (high/low)	106 kN / 68 kN (23,820 lb / 15,280 lb)

F.A.Q.

2023 Dynapac CC5200 IV — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

Lot says CC5200 IV - is that Stage IV or generation?

OEM public product is CC5200 VI. Spec key is cc5200-iv from lot. Used CC5200 VI OEM tech table. Naming difference documented.

Boyd lists Cummins QSB 3.8L 130 HP FT4 - match?

OEM alternatives are QSF3.8 IV/T4f 97 kW (130 hp) and QSF 3.8 IIIA/T3 140 hp. No QSB 3.8 on OEM page. Boyd QSB string vs OEM QSF documented; 130 hp QSF IV/T4f used as OEM match.
