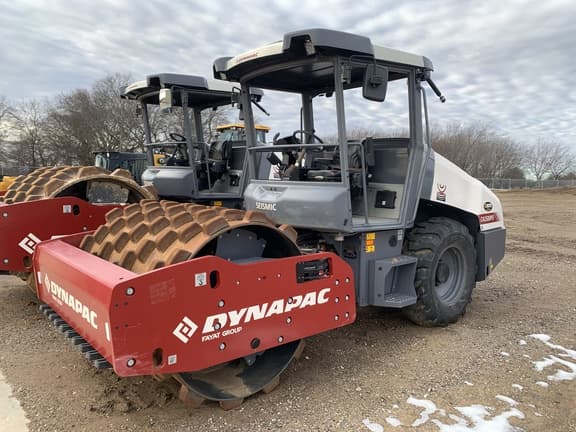

2023 Dynapac CA1500PD
2023 Dynapac CA1500PD compaction equipment. 147 hours. Listed from Oklahoma City, OK. Stock 22640. Asking $119,000.
- Asking
- $119,000
- Hours
- 147
- Stock #
- 22640
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 22640
- Class
- Compaction Equipment
- Engine
- Deutz 3.6L 75 HP Water Cooled Turbo Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| OEM product name | Dynapac CA1500PD |
|---|---|
| Engine manufacturer / model — EN primary (Boyd-matched) | Deutz TD3.6/DPF (V) |
| Rated power, ISO 14396 — EN Deutz primary | 55 kW @ 2200 rpm (75 hp @ 2200 rpm) |
| Operating mass (incl. ROPS) | 7150 kg (15,500 lbs) |
| Operating mass (incl. Cab) | 7300 kg (15,900 lbs) |
| Max. operating mass | 7700 kg (17,000 lbs) |
| Static linear load (hero) | 22 kg/cm (117 lbs/in) |
| Compaction / working width | 1676 mm (66 in) |
| Number of pads | 132 |
| Pad height — Traction block | 76 mm (3 in) |
| Tire size (8 ply) | 14.9 x 24 TL |
| Fuel tank capacity | 190 l (50 gal) |
| Length (L) | 5280 mm (207.87 in) |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine is used for the 2023 CA1500PD pack?
EN /dynapac-ca1500pd primary Deutz TD3.6/DPF (V) 55 kW (75 hp) ISO 14396. Both 2023 Boyd cards list Deutz 3.6L 75 HP / Deutz Turbo Diesel 3.6L FT4 — year-confirm. US-EN primary Manufacturer/Model prints Cummins QSB3.3 (IIIA/T3) with the same 55 kW (75 hp) ISO string — documented OEM conflict; Deutz used for headline because Boyd + EN agree.
What operating mass and pad count are published?
US-EN ROPS 15,500 lbs / Cab 15,900 lbs / max 17,000 lbs. EN 7150 / 7300 / 7700 kg. Number of pads 132. Pad area US-EN 13.0 in2 / EN 84 cm2.
Is this padfoot?
Yes. CA1500PD. Not CA1500D smooth drum. Tires 14.9 x 24 TL on both pages.
What pad-height conflict exists on US-EN?
US-EN Traction Pad height 3 in; US-EN dimension P prints 4 in. EN Traction and dimension P are both 76 mm. Conflict left in-row; not averaged.
