2016 Dynapac CA2500PD
Lowest ask CA2500PD on the lot7 other CA2500PDs listed — next is $115,855.

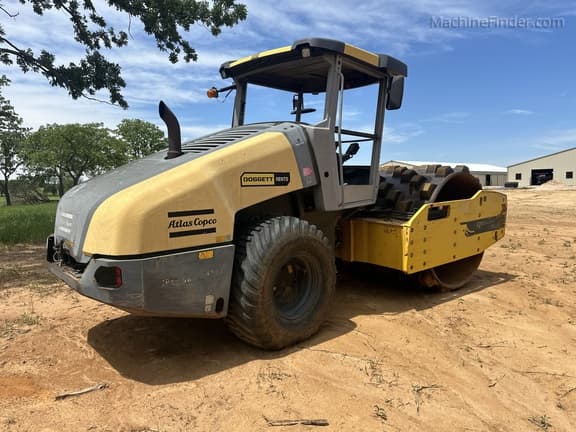

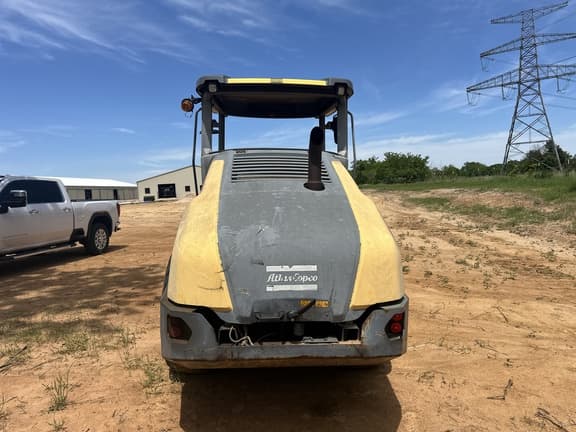

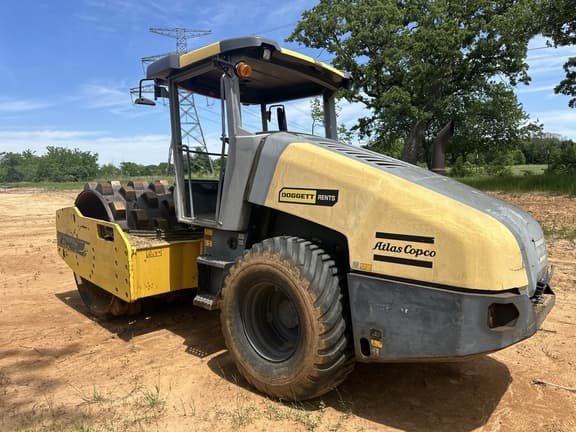

2016 Dynapac CA2500PD compaction equipment. 3,613 hours. Listed from Ardmore, OK. Stock 26683. Asking $35,000.
- Asking
- $35,000
- Hours
- 3,613
- Stock #
- 26683
- Location
- Ardmore, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 26683
- Class
- Compaction Equipment
- Engine

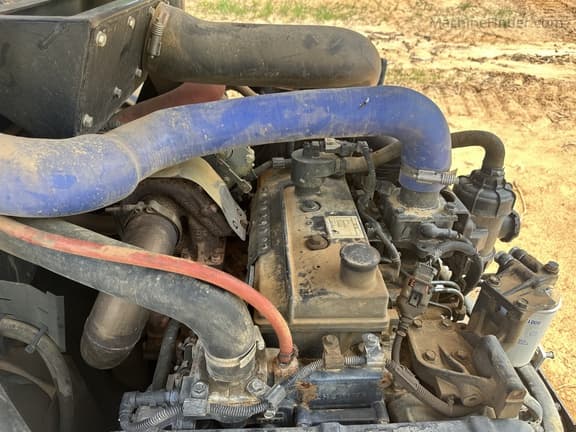

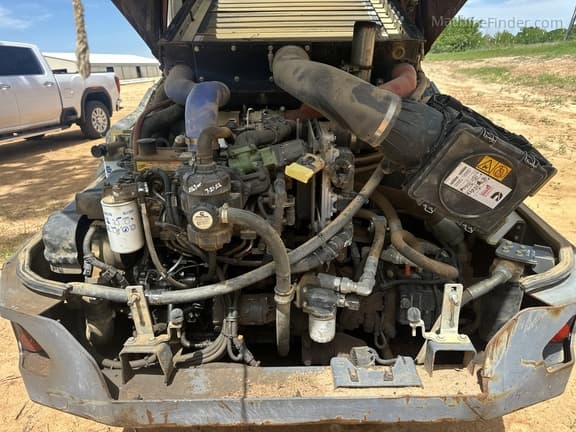

- 4.5L Cummins QSB 4.5 130 HP 4i/Stage IIIB Diesel Engine
- Yard
- Ardmore, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other CA2500PDs listed
Specification
| OEM product name | Dynapac CA2500PD |
|---|---|
| Engine manufacturer / model (era match for this listing) | Cummins QSB4.5 (IIIB/4i) (Cummins QSB 4.5 (IIIB/4i)) |
| Engine type | Water cooled turbo diesel (Water cooled turbo Diesel) |
| Rated power (Doggett US sheet SAE J1995) | 97 kW @ 2,200 rpm (130 hp @ 2,200 rpm) |
| Rated power (dynapac.com EN ISO 14396) | 97 kW @ 2,200 rpm (132 hp @ 2,200 rpm) |
| Operating mass (incl. ROPS) | 11000 kg (24,300 lbs) |
| Operating mass (incl. Cab) | 11200 kg (24,700 lbs) |
| Module mass (front/rear) | 6500 kg / 4700 kg (14,300 lbs / 10,400 lbs) |
| Max. operating mass (Doggett US 2016-08-24) | 26,100 lbs |
| Max. operating mass (dynapac.com EN) | 11400 kg |
| Fuel tank capacity | 272 l (72 gal) |
| Number of pads | 130 |
| Pad area | 22.6 in² |
| Pad height | 102 mm (4 in) |
| Drum / working width | 2130 mm (84 in) |
| Nominal amplitude (high/low) — Doggett US sheet | 0.079 in / 0.043 in |
| Vibration frequency (high/low amplitude) — Doggett US sheet | 1,800 vpm / 1,800 vpm |
| Centrifugal force (high/low) — Doggett US sheet | 58,450 lb / 33,720 lb |

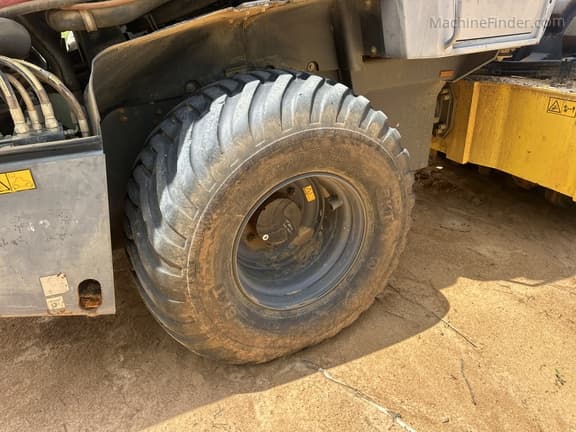

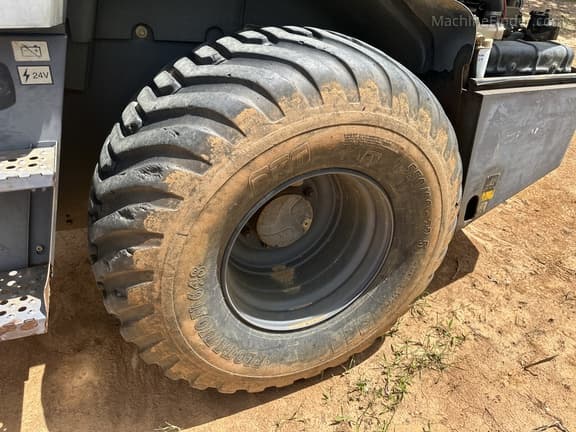

| Tire size (8 ply) | 23.1 x 26 TR |
| Max. theoretical gradeability | 57 % |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
Which engine matches this 2016 Boyd unit?
Boyd listing essentials: 4.5L Cummins QSB 4.5 130 HP 4i/Stage IIIB. Doggett US datasheet rce_ca2500pd_45_us-20160824.144047.pdf (opened, dated 2016-08-24) publishes Cummins QSB 4.5 (IIIB/4i), SAE J1995 97 kW (130 hp) @ 2,200 rpm. dynapac.com/en CA2500PD (Discontinued true, opened) publishes Cummins QSB4.5 (IIIB/4i), ISO 14396 97 kW (132 hp) @ 2200 rpm.
Why not reuse the 2023/2024 QSF3.8 CA2500PD pack?
That pack is Cummins QSF3.8 (IV/4final) 89 kW (120 hp) for newer Boyd QSF3.8 units. This 2016 listing is QSB4.5 IIIB — different engine family. Do not mix QSF3.8 / F3.8 / QSB4.5 numbers.
Does the 2016 Doggett sheet also list QSF3.8?
Yes — it prints QSF3.8 (IV/4final) 120 hp as one engine block and QSB 4.5 (IIIB/4i) 130 hp as the other. For this listing we select the QSB4.5 IIIB block only, matching Boyd.
Max operating mass print variance?
Doggett US 2016 sheet: Max 26,100 lbs. dynapac.com EN: Max 11400 kg. US-EN live page: Max 25,100 lbs. Card keeps source-labeled rows; do not average.
Is CA2500PD the padfoot model?
Yes — padfoot (PD). Smooth-drum CA2500D is a different model; do not mix.
