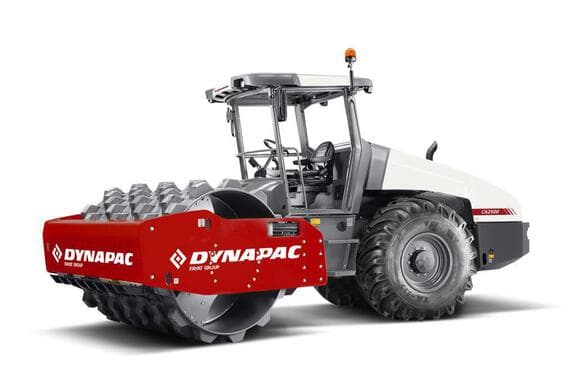

2023 Dynapac CA2500PD
2023 Dynapac CA2500PD compaction equipment. 1,032 hours. Listed from Oklahoma City, OK. Stock 24181. Asking $120,409.
- Asking
- $120,409
- Hours
- 1,032
- Stock #
- 24181
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 24181
- Class
- Compaction Equipment
- Engine
- Cummins QSF3.8L 129 HP FT4 Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other CA2500PDs listed
Specification
| OEM product name | Dynapac CA2500PD |
|---|---|
| Engine manufacturer / model (discontinued pages) | Cummins QSF3.8 (IV/4final) |
| Rated power, SAE J1995 (discontinued pages) | 89 kW @ 2,200 rpm (120 hp @ 2,200 rpm) |
| Operating mass (incl. ROPS) | 11000 kg (24,300 lbs) |
| Operating mass (incl. Cab) | 11200 kg (24,700 lbs) |
| Max. operating mass | 11850 kg (26,100 lbs) |
| Static linear load (hero) | 30 kg/cm (168 lbs/in) |
| Compaction / working width | 2130 mm (84 in) |
| Number of pads | 130 |
| Pad area | 146 cm2 (22.6 in2) |
| Pad height | 102 mm (4 in) |
| Speed range | 0 - 12 km/h (0 - 7,5 mph) |
| Tire size (8 ply) | 23.1 x 26 TR |
| Fuel tank capacity (discontinued pages) | 272 l (72 gal) |
| DEF tank capacity (discontinued pages) | 20 l (5 gal) |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine does the discontinued CA2500PD page publish?
Cummins QSF3.8 (IV/4final), water cooled turbo Diesel, SAE J1995 89 kW (120 hp ) @ 2,200 rpm on discontinued US-EN and EN /dynapac-ca2500pd-discontinued (Discontinued true). Alternative: Cummins QSB4.5 (IIIA/3) 97 kW (130 hp). Current /dynapac-ca2500pd F3.8 100 kW (135 hp) is not used.
Why use the discontinued QSF3.8 sheet for 2023/2024 lot units?
Boyd 2024 CA2500PD lists Cummins QSF 3.8L 120 HP FT4. Boyd 2023 lists Cummins QSF3.8L 129 HP FT4 (Boyd string). Both match the discontinued QSF3.8 family, not current F3.8 135 hp. Same mix-guard pattern as CA2500D 2024 pack.
What operating mass and pad data are published?
US-EN: ROPS 24,300 lbs; Cab 24,700 lbs; max 26,100 lbs. EN: 11000 / 11200 / 11850 kg. Pads: 130; pad area 22.6 in2 / 146 cm2; pad height 4 in / 102 mm. Tires 23.1 x 26 TR.
Is CA2500PD the padfoot model?
Yes. Discontinued pages include Number of pads / Pad height. CA2500D is the smooth-drum sibling and is not mixed here.
