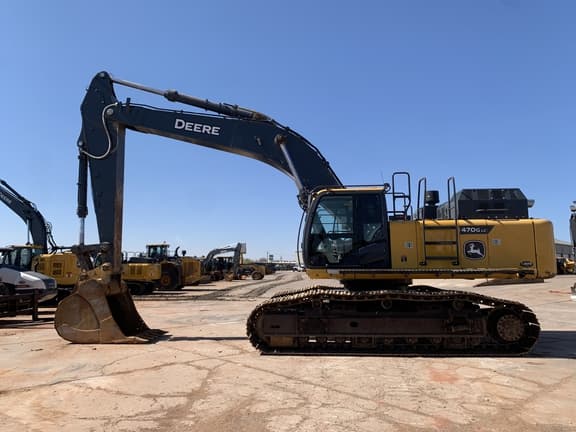

2022 John Deere 470G LC

6,327 hrs · Oklahoma City · Stock 22866

2022 John Deere 470G LC excavator. 6,327 hours. Listed from Oklahoma City, OK. Stock 22866. Asking $281,000.

Asking: $281,000
Hours: 6,327
Stock #: 22866

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 22866
Class: Excavators
Engine: FT4 John Deere Diesel Engine
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Engine manufacturer and model	John Deere PowerTech PSS 6135
Non-road emission standard	EPA Final Tier 4/EU Stage IV
Net rated power (ISO 9249)	274 kW at 2,000 rpm (367 hp at 2,000 rpm)
Cylinders	6
Displacement	13.5 L (824 cu. in.)
Operating weight (sheet config)	51 218 kg (112,916 lb.)
Maximum digging depth, 3.9-m (12 ft. 10 in.) arm	8.27 m (27 ft. 2 in.)
Maximum reach, 3.9-m arm	12.49 m (41 ft. 0 in.)
Bucket digging force (ISO), 3.9-m arm	286 kN (64,295 lb.)
Arm digging force (ISO), 3.9-m arm	201 kN (45,187 lb.)
Fuel tank	675 L (178 gal.)
DEF tank	71 L (18.8 gal.)
Drawbar pull	33 537 kg (73,937 lb.)
Tail-swing radius	3.67 m (12 ft. 0 in.)
Ground pressure, 900-mm (36 in.) triple semi-grouser shoes	61.3 kPa (8.9 psi)

F.A.Q.

2022 John Deere 470G LC — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

What engine and horsepower does the John Deere 470G LC have?

John Deere PowerTech™ PSS 6135, 6 cylinders, 13.5 L (824 cu. in.), EPA Final Tier 4/EU Stage IV. Net rated power (ISO 9249) is 274 kW (367 hp) at 2,000 rpm per DKAX470G (21-07).

What is the maximum digging depth of the 470G LC?

With the 3.9-m (12 ft. 10 in.) arm, maximum digging depth is 8.27 m (27 ft. 2 in.). With the 3.4-m (11 ft. 2 in.) arm it is 7.77 m (25 ft. 6 in.).

What does the 470G LC weigh?

Operating weight is 51 218 kg (112,916 lb.) with the sheet config (3.9-m arm, 54-in. bucket, counterweight removal device, 900-mm shoes).

What are the fuel and DEF capacities?

Fuel tank 675 L (178 gal.). DEF tank 71 L (18.8 gal.).

Is this the same as a 470 P-Tier?

No. 470G LC uses DKAX470G. 470 P-Tier uses ME470PAU. Some headline power/weight figures match, but hydraulics and arm dig forces differ (e.g. pilot flow 30 L/m on G vs 34 L/m on P). Do not mix cards.
