2026 John Deere 75 P

Name: 2026 John Deere 75 P
Brand: John Deere
Price: 121526 USD
Availability: InStock

3 hrs · Oklahoma City · Stock 26004

Lowest-hours 75 P on the lot2 other 75 Ps listed — next is 19 hrs.

Newest 75 P on the lot

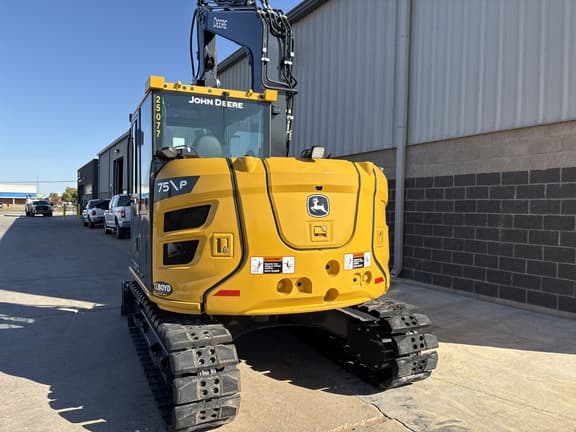

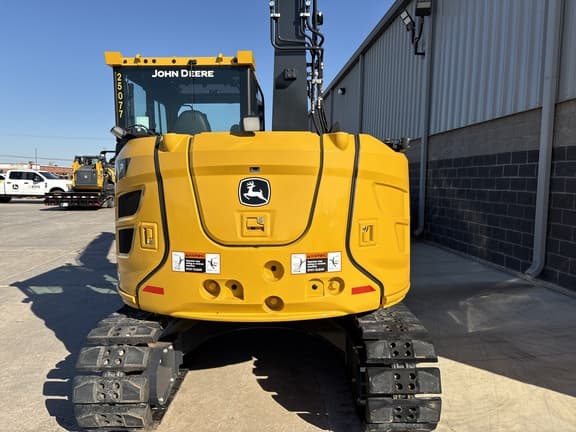

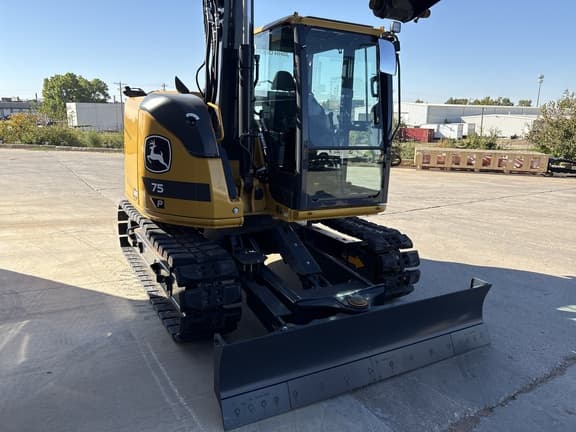

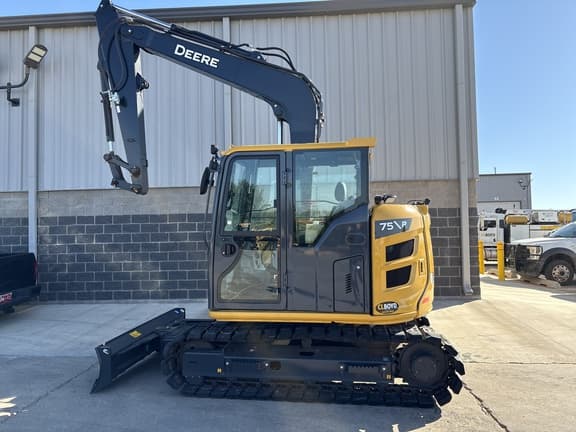

2026 John Deere 75 P excavator. 3 hours. Listed from Oklahoma City, OK. Stock 26004. Asking $121,526.

Asking: $121,526
Hours: 3
Stock #: 26004

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 26004
Class: Excavators
Engine: Yanmar 3.3L 67.6 HP Turbocharged FT4 Diesel Engine
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Other 75 Ps listed

2025 John Deere 75 P19 hrs$121,526

2025 John Deere 75 P135 hrs$111,526

This 75 P vs others listed

Same 75 P: hours and asking from listings live today.
Unit	Hours	Asking
This unit	3	$121,526
2025	19	$121,526
2025	135	$111,526

Specification

Engine manufacturer and model	Yanmar 4TNV98CT
Non-road emission standard	EPA Final Tier 4/EU Stage IV
Net power (ISO 14396)	50.4 kW at 2,000 rpm (67.6 hp at 2,000 rpm)
Cylinders	4
Displacement	3.3 L (202 cu. in.)
Aspiration	Turbocharger
Maximum travel speed, low	3.1 km/h (1.9 mph)
Maximum travel speed, high	5.0 km/h (3.1 mph)
Drawbar pull	7240 kgf (15,961 lb.)
Main pumps	3 variable-displacement axial-piston pumps
Main pump maximum flow	2 x 72 + 56 L/m (2 x 19 + 15 gpm)
Auxiliary maximum flow (1 pump)	63.6 lpm (16.8 gpm)
System operating pressure, implement circuits	28 000 kPa (4,061 psi)
System operating pressure, travel circuits	31 600 kPa (4,583 psi)
System operating pressure, swing circuits	26 100 kPa (3,785 psi)
Swing speed	10.1 rpm
Swing torque	16 600 Nm (12,244 lb.-ft.)
Fuel tank	125 L (33 gal.)
Hydraulic system	100 L (26 gal.)
Hydraulic tank	52 L (14 gal.)
Engine oil with filter	12.3 L (3.2 gal.)
Cooling system	13.1 L (3.5 gal.)
Operating weight (450-mm steel shoes with vulcanized rubber pads, 3.67-m boom, 2.12-m arm)	8418 kg (18,559 lb.)
Arm length	2.12 m (6 ft. 11 in.)
Arm digging force (ISO)	35.3 kN (7,936 lb.)
Bucket digging force (ISO)	59.0 kN (13,264 lb.)
Maximum reach	6.87 m (22 ft. 6 in.)
Maximum digging depth	4.65 m (15 ft. 3 in.)
Maximum cutting height	7.58 m (24 ft. 10 in.)
Maximum dumping height	5.48 m (18 ft. 0 in.)
Minimum swing radius	2.12 m (6 ft. 11 in.)
Tail-swing radius	1.39 m (4 ft. 7 in.)
Overall length	6.32 m (20 ft. 9 in.)
Overall height in transport position	2.73 m (8 ft. 11 in.)
Undercarriage width (450-mm shoes)	2.20 m (7 ft. 3 in.)
Track shoe width	0.45 m (18 in.)
Undercarriage length	2.90 m (9 ft. 6 in.)
Cab height	2.52 m (8 ft. 3 in.)
Upperstructure width	2.35 m (7 ft. 9 in.)
Gauge width	1.75 m (5 ft. 9 in.)
Ground clearance	360 mm (14 in.)
Counterweight clearance	0.72 m (28 in.)
Blade width (450-mm shoes)	2200 mm (7 ft. 3 in.)
Blade height	472 mm (19 in.)
Blade lift height	370 mm (15 in.)
Blade cut below grade	290 mm (11 in.)

Equipment on this unit

Operators Station: ROPS
Operators Station: Cab w/ AC
Operators Station: Cntrl Pattern Select
Arms: Medium Arm
Booms: Standard Boom
Tracks: Standard Track
Buckets: Less Bucket
Blades: Blade
Options: Aux Hydraulics

Notes on this unit

Yanmar 3.3L 67.6 HP Turbocharged FT4 Diesel Engine
18" Steel track shoes with vulcanized rubber pads bonded to top of...
6'11" Arm
Attachment Selector Valve & Thumb Bracket
Right, Rear and Left Camera System
AM-FM WB Radio
Auto climate control/air conditioner with heater and pressurizer
Cell-phone holder, USB port, and Bluetooth® calling and audio
Seat belt, 51 mm (2 in.), retractable
Deluxe cloth, heated, air-suspension seat with adjustable armrests
Work lights: LED / 1 mounted on boom / 1 mounted on frame
JDLink Cellular Telematics w/Machine Alert Monitoring Services

F.A.Q.

2026 John Deere 75 P — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

What engine does this 75 P have?

John Deere's 75 P-Tier sheet lists a Yanmar 4TNV98CT, EPA Final Tier 4/EU Stage IV, 4 cylinders, 3.3 L (202 cu. in.), turbocharged, with net power (ISO 14396) of 50.4 kW (67.6 hp) at 2,000 rpm.

How much does this 75 P weigh?

8418 kg (18,559 lb.) with 450-mm (18 in.) steel track shoes with vulcanized rubber pads and the 2.12-m (6 ft. 11 in.) arm.

How deep and far does it dig with the 6 ft. 11 in. arm?

Maximum digging depth 4.65 m (15 ft. 3 in.), maximum reach 6.87 m (22 ft. 6 in.), maximum dumping height 5.48 m (18 ft. 0 in.). Bucket digging force (ISO) is 59.0 kN (13,264 lb.).
