2025 John Deere 75 P
Lowest ask 75 P on the lot2 other 75 Ps listed — next is $121,526.

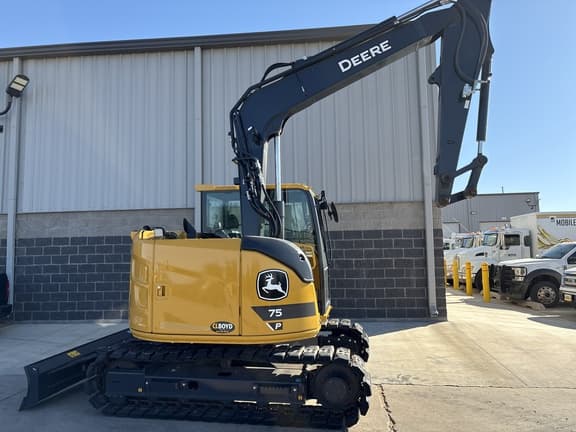

2025 John Deere 75 P excavator. 135 hours. Listed from Lawton, OK. Stock 25039. Asking $111,526.
- Asking
- $111,526
- Hours
- 135
- Stock #
- 25039
- Location
- Lawton, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 25039
- Class
- Excavators
- Engine
- Yanmar 3.3L 67.6 HP Turbocharged FT4 Diesel Engine
- Yard
- Lawton, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other 75 Ps listed
Specification
| Engine manufacturer and model | Yanmar 4TNV98CT |
|---|---|
| Displacement | 3.3 L (202 cu. in.) |
| Net power as printed (ISO 14396) at 2,000 rpm | 50.4 kW at 2,000 rpm (67.6 hp at 2,000 rpm) |
| Operating weight — 450-mm rubber crawler pad (steel shoes w/ vulcanized pads) | 8418 kg (18,559 lb.) |
| Operating weight — 450-mm rubber crawler pads | 8766 kg (19,326 lb.) |
| Maximum digging depth | 4.65 m (15 ft. 3 in.) |
| Maximum reach | 6.87 m (22 ft. 6 in.) |
| Main pump maximum flow | 2 x 72 + 56 L/m (2 x 19 + 15 gpm) |
| Fuel tank | 125 L (33 gal.) |
| Maximum travel speed, high | 5.0 km/h (3.1 mph) |
| Overall length | 6.32 m (20 ft. 9 in.) |
| Overall height in transport position | 2.73 m (8 ft. 11 in.) |
| Tail-swing radius | 1.39 m (4 ft. 7 in.) |
| Cylinders | 4 |
| Non-road emission standard | EPA Final Tier 4/EU Stage IV |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine and power does the 75 P use?
ME75PAU.pdf lists Yanmar 4TNV98CT, EPA Final Tier 4/EU Stage IV, 4 cylinders, 3.3 L (202 cu. in.). The sheet prints Net Power (ISO 14396) 50.4 kW (67.6 hp) at 2,000 rpm. CA hero prints Net Power: 50.4 kW (67.6 hp).
What operating weight range does John Deere publish?
ME75PAU.pdf lists 8418 kg (18,559 lb.) with 450-mm rubber crawler pad (steel shoes with vulcanized pads), 8554 kg (18,858 lb.) with 600-mm steel track, and 8766 kg (19,326 lb.) with 450-mm rubber crawler pads. CA hero prints Operating Weight: 8418-8766 kg (18,559-19,326 lb.).
How deep does the 75 P dig?
ME75PAU.pdf Maximum Digging Depth is 4.65 m (15 ft. 3 in.) with the 2.12-m (6 ft. 11 in.) arm. CA hero prints Max. Digging Depth: 4.65 m (15 ft. 3 in.). This is not the 85 P figure 4.53 m (14 ft. 10 in.).
How is this different from the 85 P?
Both publish 50.4 kW (67.6 hp) on their heroes, but ME75PAU dig depth is 4.65 m (15 ft. 3 in.) and operating-weight band is 8418–8766 kg; ME85PAU dig depth is 4.53 m (14 ft. 10 in.) with a different operating-weight band and engine model suffix. Do not copy 85 P rows into a 75 P pack.
