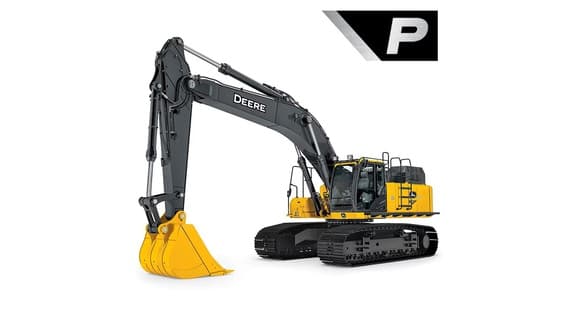

2024 John Deere 470 P
2024 John Deere 470 P excavator. 3,930 hours. Listed from Ardmore, OK. Stock 24032. Asking $396,274.
- Asking
- $396,274
- Hours
- 3,930
- Stock #
- 24032
- Location
- Ardmore, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 24032
- Class
- Excavators
- Engine
- John Deere 13.5L 367 HP FT4 Diesel Engine w/Chrome Exhaust
- Yard
- Ardmore, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| Engine manufacturer and model | John Deere PowerTech PSS 6135 |
|---|---|
| Non-road emission standard | EPA Final Tier 4/EU Stage IV |
| Net rated power (ISO 9249) | 274 kW at 2,000 rpm (367 hp at 2,000 rpm) |
| Cylinders | 6 |
| Displacement | 13.5 L (824 cu. in.) |
| Operating weight (sheet config) | 51 218 kg (112,916 lb.) |
| Maximum digging depth, 3.4-m (11 ft. 2 in.) arm | 7.77 m (25 ft. 6 in.) |
| Maximum reach, 3.4-m arm | 12.06 m (39 ft. 7 in.) |
| Bucket digging force (ISO), 3.4-m / 3.9-m arm | 301 kN (67,564 lb.) |
| Arm digging force (ISO), 3.4-m arm | 226 kN (50,801 lb.) |
| Fuel tank | 675 L (178 gal.) |
| DEF tank | 71 L (18.8 gal.) |
| Drawbar pull | 33 537 kg (73,937 lb.) |
| Tail-swing radius | 3.67 m (12 ft. 0 in.) |
| Ground pressure, 900-mm (36 in.) triple semi-grouser shoes | 61.3 kPa (8.9 psi) |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine and horsepower does the John Deere 470 P have?
John Deere PowerTech™ PSS 6135, 6 cylinders, 13.5 L (824 cu. in.), EPA Final Tier 4/EU Stage IV. Net rated power (ISO 9249) is 274 kW (367 hp) at 2,000 rpm per ME470PAU (25-01).
What digging depth applies to the Ardmore unit with the 11 ft. 2 in. arm?
Boyd lists Medium Arm / 11'2" Arm = 3.4-m column on ME470PAU. Maximum digging depth is 7.77 m (25 ft. 6 in.); at 2.44-m flat bottom 7.63 m (25 ft. 0 in.).
What does the 470 P weigh?
Operating weight is 51 218 kg (112,916 lb.) on the sheet config (includes 3.9-m arm in the OW paragraph — note Boyd unit has 3.4-m arm).
What are the dig forces on the 3.4-m arm?
ISO bucket digging force 301 kN (67,564 lb.); ISO arm digging force 226 kN (50,801 lb.).
Is this the same as a 470G LC?
No. 470 P-Tier is ME470PAU. 470G LC is DKAX470G. Do not mix packs even when headline hp/weight look similar.
