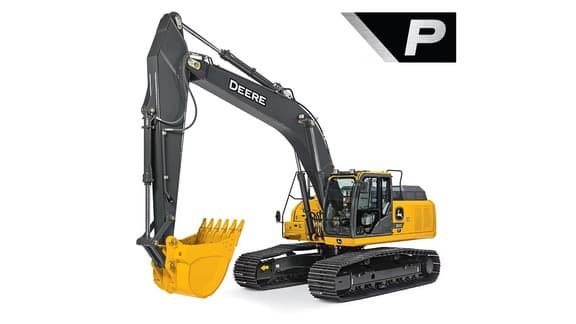

Name: 2023 John Deere 300 P
Brand: John Deere
Price: 251666 USD
Availability: InStock

Question 1

What engine and net power does the 300 P use?

Accepted Answer

ME300PAU.pdf lists John Deere PowerTech PSS 6.8L, 6068HT107, EPA Final Tier 4/EU Stage IV, 6 cylinders, 6.8 L (415 cu. in.). Net Rated Power (ISO 9249) is 166 kW (223 hp) at 1,900 rpm. The live US/CA hero prints Net Power: 166 kW (223 hp).

Question 2

What operating weight does John Deere publish for the 300 P?

Accepted Answer

ME300PAU.pdf Operating Weight is 31 150 kg (68,674 lb.) with the sheet config (1.44-m³ / 1.88 cu. yd. bucket, 3.76-m / 12 ft. 4 in. arm, 5600-kg counterweight, 800-mm shoes). US/CA hero prints the same Operating Weight: 31 150 kg (68,674 lb.).

Question 3

How deep does the 300 P dig?

Accepted Answer

ME300PAU.pdf Maximum Digging Depth is 7.87 m (25 ft. 10 in.) with the 3.76-m (12 ft. 4 in.) arm and 7.22 m (23 ft. 8 in.) with the 3.11-m (10 ft. 2 in.) arm. US/CA hero prints Max. Digging Depth: 7.87 m (25 ft. 10 in.).

Question 4

What fuel capacity is listed?

Accepted Answer

ME300PAU.pdf Fuel Tank 514 L (136 gal.); DEF Tank 35 L (9.2 gal.).

Question 5

Is the ME300PAU sheet model-year-coded?

Accepted Answer

No. Footer ME300PAU (23-01) is a current 300 P-TIER sheet, not a 2026- or 2023-only column. Same sheet is used for lot 2026 and 2023 300 P units.

Engine manufacturer and model	John Deere PowerTech PSS 6.8L, 6068HT107
Displacement	6.8 L (415 cu. in.)
Net rated power (ISO 9249) at 1,900 rpm	166 kW at 1,900 rpm (223 hp at 1,900 rpm)
Operating weight (sheet config)	31 150 kg (68,674 lb.)
Maximum digging depth — 3.76-m (12 ft. 4 in.) arm	7.87 m (25 ft. 10 in.)
Maximum digging depth — 3.11-m (10 ft. 2 in.) arm	7.22 m (23 ft. 8 in.)
Maximum reach — 3.76-m arm	11.27 m (37 ft. 0 in.)
Tail-swing radius	3.25 m (10 ft. 8 in.)
Main pump maximum rated flow	236 L/m x 2 (62.3 gpm x 2)
Fuel tank	514 L (136 gal.)
Maximum travel speed, high	5.2 km/h (3.2 mph)
Overall length — 3.76-m arm	10.71 m (35 ft. 2 in.)
Overall height — 3.76-m arm	3.38 m (11 ft. 1 in.)
Cylinders	6
Non-road emission standard	EPA Final Tier 4/EU Stage IV
