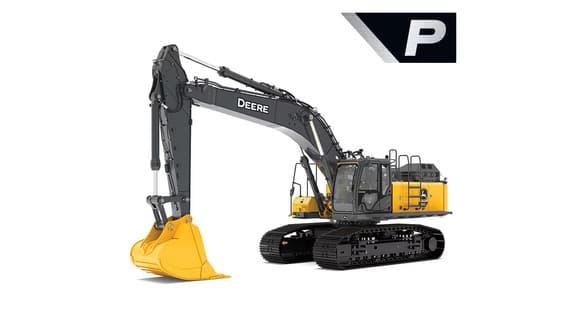

2025 John Deere 510 P

3,576 hrs · Oklahoma City · Stock 25235

2025 John Deere 510 P excavator. 3,576 hours. Listed from Oklahoma City, OK. Stock 25235. Asking $475,234.

Asking: $475,234
Hours: 3,576
Stock #: 25235

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 25235
Class: Excavators
Engine: 9.0L 367 HP Turbocharged & Air-To-Air-Charge-Air-Cooled FT4 John Deere Diesel Engine w/Chrome Exhaust Stack
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Engine manufacturer and model	John Deere PowerTech 6090
Displacement	9.0 L (549 cu. in.)
Net rated power (ISO 9249) at 2,000 rpm	274 kW at 2,000 rpm (367 hp at 2,000 rpm)
Operating weight (sheet config)	50 750 kg (111,885 lb.)
Maximum digging depth — 3.9-m (12 ft. 10 in.) arm	8.27 m (27 ft. 2 in.)
Maximum digging depth — 3.4-m (11 ft. 2 in.) arm	7.77 m (25 ft. 6 in.)
Maximum reach — 3.9-m arm	12.49 m (41 ft. 0 in.)
Bucket capacity in operating-weight row	2.34 m³ (3.06 cu. yd.)
Main pump maximum rated flow	400 L/m x 2 (106 gpm x 2)
Fuel tank	675 L (178 gal.)
Maximum travel speed, high	5.5 km/h (3.4 mph)
Overall length with arm	12.01 m (39 ft. 5 in.)
Overall height with arm — 3.9-m	3.50 m (11 ft. 6 in.)
Cylinders	6
Non-road emission standard	EPA Final Tier 4/EU Stage IV

F.A.Q.

2025 John Deere 510 P — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

What engine and net power does the 510 P use?

ME510PAU.pdf lists John Deere PowerTech™ 6090, EPA Final Tier 4/EU Stage IV, 6 cylinders, 9.0 L (549 cu. in.). Net Rated Power (ISO 9249) is 274 kW (367 hp) at 2,000 rpm. Live US/CA hero prints Net Power: 274 kW (367 hp).

What operating weight does John Deere publish?

ME510PAU.pdf Operating Weight is 50 750 kg (111,885 lb.) with the sheet config (2.34-m³ / 3.06 cu. yd. bucket, 3.9-m / 12 ft. 10 in. arm, 8400-kg counterweight). US/CA hero prints Operating Weight: 50 750 kg (111,885 lb.).

How deep does the 510 P dig?

ME510PAU.pdf Maximum Digging Depth is 8.27 m (27 ft. 2 in.) with the 3.9-m (12 ft. 10 in.) arm and 7.77 m (25 ft. 6 in.) with the 3.4-m (11 ft. 2 in.) arm. Hero prints Max. Digging Depth: 7.77–8.27 m (25 ft. 6 in.–27 ft. 2 in.).
