2018 John Deere 544K II

9,182 hrs · Oklahoma City · Stock 26587

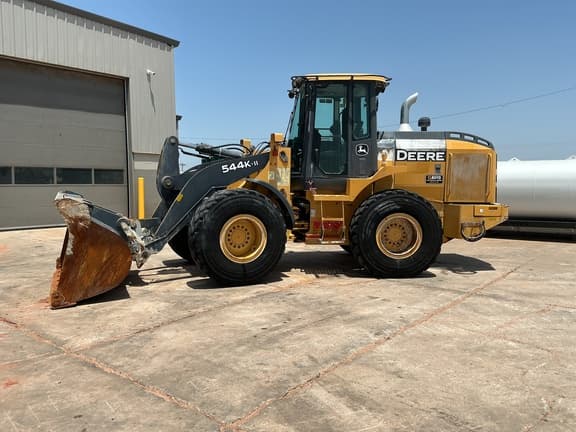

2018 John Deere 544K II wheel loader. 9,182 hours. Listed from Oklahoma City, OK. Stock 26587. Asking $88,000.

Asking: $88,000
Hours: 9,182
Stock #: 26587

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 26587
Class: Wheel Loaders
Engine: 6.8L 163 HP Turbocharged & Charge-Air-Cooled FT4 John Deere Diesel Engine w/Chrome Exhaust Stack
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Engine manufacturer and model (FT4 column)	John Deere PowerTech PVS 6068
Non-road emission standard (FT4)	EPA Final Tier 4 / EU Stage IV
Displacement	6.8 L (414 cu. in.)
Net peak power (ISO 9249) — FT4	121 kW at 1,800 rpm (163 hp at 1,800 rpm)
Net peak torque (ISO 9249) — FT4	683 Nm at 1,100 rpm (504 lb.-ft. at 1,100 rpm)
Transmission	Countershaft PowerShift; standard 5-speed with lockup torque converter
Max travel speed Range 5 (20.5 R 25, with LUTC)	40.0 km/h (24.9 mph)
Bucket capacity heaped — pin-on Z-Bar 2.3 m3 GP	2.3 m3 (3.0 cu. yd.)
Breakout force — pin-on Z-Bar narrow 2.3 m3	10 115 kg (22,300 lb.)
Tipping load, 40-deg. full turn, no tire deflection — pin-on Z-Bar narrow 2.3 m3	9637 kg (21,246 lb.)
Rated operating load 50% full-turn tip (ISO 14397-1), no tire deflection	4818 kg (10,622 lb.)
Operating weight — pin-on Z-Bar narrow 2.3 m3	13 217 kg (29,138 lb.)
Dump clearance, 45 deg., full height — Z-Bar narrow 2.3 m3	2.76 m (9 ft. 1 in.)
Height to hinge pin, fully raised — Z-Bar	3.82 m (12 ft. 6 in.)
Fuel tank (FT4)	298 L (79 gal.)

F.A.Q.

2018 John Deere 544K II — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

Is this 544K-II, not 544 P or 544 G / 544K (non-II)?

Yes. Specs from K-II Series sheet (524K-II/544K-II/624K-II). Do not mix 544 P-Tier, 544 G-Tier, or non-II 544K sheets.

What net horsepower is published for FT4?

Net peak power (ISO 9249) 121 kW (163 hp) at 1,800 rpm on PowerTech PVS 6068 FT4/Stage IV column. Sheet also lists Tier 3 PowerTech E 6068H at 122 kW (163 hp) at 1,900 rpm — US 2018 typically FT4.

Which linkage/bucket column is used for weight and breakout?

Pin-on Z-Bar narrow 2.3-m3 (3.0 cu. yd.) general-purpose with bolt-on edge: operating weight 13 217 kg (29,138 lb.), breakout 10 115 kg (22,300 lb.). Powerllel and High-Lift columns differ — do not mix.
