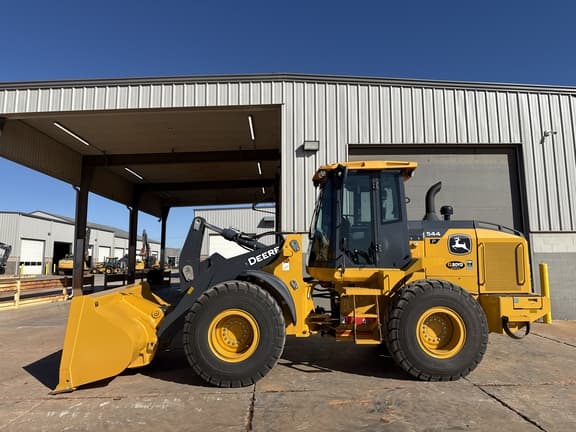

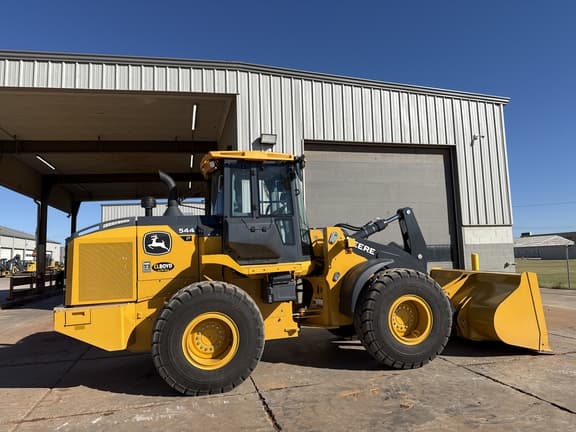

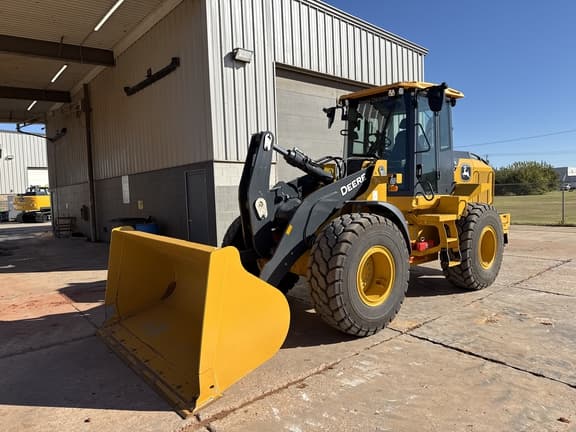

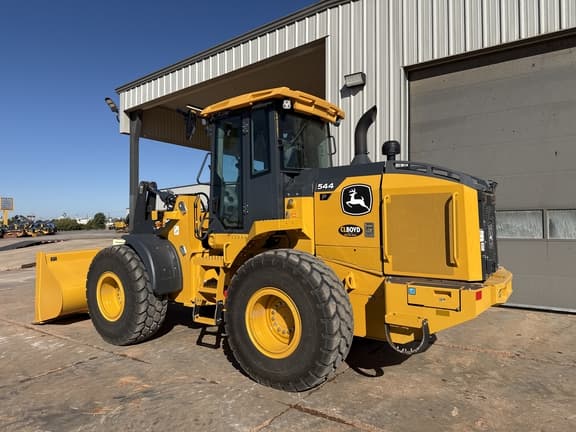

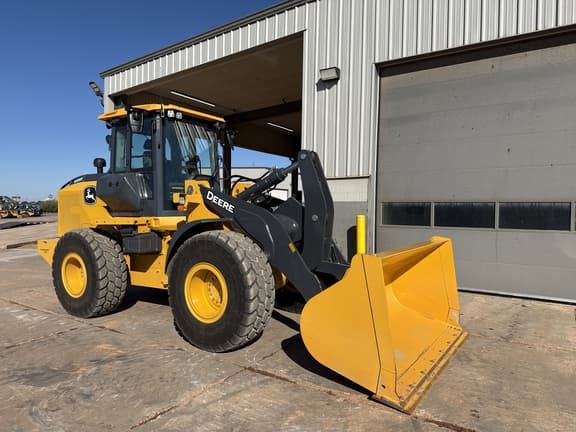

2025 John Deere 544 P
2025 John Deere 544 P wheel loader. 23 hours. Listed from Lawton, OK. Stock 25302. Asking $268,020.
- Asking
- $268,020
- Hours
- 23
- Stock #
- 25302
- Location
- Lawton, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 25302
- Class
- Wheel Loaders
- Engine
- John Deere 6.8L Turbocharged 174 HP FT4 Diesel Engine
- Yard
- Lawton, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other 544 Ps listed
Specification
| Engine manufacturer and model | John Deere PowerTech PVS 6068 |
|---|---|
| Displacement | 6.8 L (414 cu. in.) |
| Net peak power (ISO 9249) | 123 kW at 1,700 rpm (166 hp at 1,700 rpm) |
| Gross peak power (ISO 9249) | 130 kW at 1,700 rpm (174 hp at 1,700 rpm) |
| Net peak torque (ISO 9249) | 740 Nm at 1,100 rpm (546 lb.-ft. at 1,100 rpm) |
| Transmission | Countershaft-type PowerShift; standard 5-speed with lockup torque converter |
| Max travel speed, Range 5 forward (20.5 R 25), 5-speed with lockup | 40.0 km/h (24.8 mph) |
| Heaped capacity, pin-on Z-Bar 2.3-m3 (3.0 cu. yd.) with bolt-on edge | 2.3 m3 (3.0 cu. yd.) |
| Bucket capacity range — coupler | 1.9–4.0 m3 (2.5–5.25 cu. yd.) |
| Breakout force, pin-on Z-Bar 2.3-m3 with bolt-on edge | 13 166 kg (29,026 lb.) |
| Tipping load, 40-deg. full turn, no tire deflection, pin-on Z-Bar 2.3-m3 | 9653 kg (21,281 lb.) |
| Operating weight, pin-on Z-Bar 2.3-m3 with bolt-on edge | 13 844 kg (30,520 lb.) |
| Hydraulic cycle times — Z-Bar / High-Lift / High-Lift Plus | Raise 5.5 sec.; dump 2.2 sec.; lower (power down) 3.5 sec.; total 11.2 sec. |
| Fuel tank (with lockable cap) | 298 L (79 gal.) |
| Height to top of cab (dimension A) | 3.33 m (10 ft. 11 in.) |
| Wheelbase (dimension E) | 2.93 m (9 ft. 7 in.) |
| Standard tires (measure tire) | Michelin 20.5 R 25, 1 Star L-3 XHA2 |
Equipment on this unit
- Operators Station: ROPS
- Operators Station: Cab w/ AC
- Attachments: Quick Coupler
- Powertrain: Dual Diff Locks
- Tires: 20.5 Tires
- Tires: Radials
- Buckets: General Purpose Bkt
- Options: Aux Hydraulics
- Options: Rear Camera
- Options: Ride Control
Notes on this unit
- John Deere 6.8L Turbocharged 174 HP FT4 Diesel Engine
- 145 Amp Alternator & 15 Amp 24V to 12V Converter
- Auto-Reversing Engine Fan Drive
- Engine Air Intake Centrifugal Precleaner
- Powered Cabin Fresh Air Precleaner
- 5-Speed Transmission
- Wheel Spin Control
- Pile Slip Assist
- Two Rear-Mounted Digital Cameras and Rear View Camera w/Dedicated Single Display
- Advanced Object Detection System w/Audible Alerts and Including Dynamic Reversal Projected Path Lines
- Premium Radio Package with Bluetooth®, remote auxiliary port, and remote USB port
- Level 2 Fleet Health Including Auto Active Warm Up, Auto Daily Fluid Checks, Fluid Loss Monitoring, Battery Health Monitoring, Mobile Alerts
- SmartWeigh Ready + Trial Period
- Halogen Work and Drive Lights
- Premium Seat, Heated and Ventilated with Heavy Duty Air Suspension
- Front Fenders
- JRB-Style 416-Class Hydraulic Coupler
- 3.5 Yd. Enhanced Performance Coupler Bucket w/BOCE
- Transmission & Bottom Guards
- JDLink Cellular Telematics w/Machine Alert Monitoring Services
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What net horsepower does John Deere publish for the 544 P-Tier?
MW544PAU and deere.ca hero list net peak power (ISO 9249) of 123 kW (166 hp) at 1,700 rpm. Gross peak power on the same sheet is 130 kW (174 hp) at 1,700 rpm.
What operating weight is published for the pin-on Z-Bar 2.3-m3?
13 844 kg (30,520 lb.) on MW544PAU; deere.ca hero lower end of 13 844–13 879 kg (30,520–30,598 lb.).
What bucket capacity is published?
Pin-on range 2.1–2.5 m3 (2.75–3.25 cu. yd.); coupler range 1.9–4.0 m3 (2.5–5.25 cu. yd.) on MW544PAU. deere.ca hero Bucket Capacity 1.9–4.0 m3.
What engine is listed?
John Deere PowerTech PVS 6068, 6.8 L (414 cu. in.), EPA Final Tier 4/EU Stage V.
What transmission and top travel speed are published?
Countershaft-type PowerShift, standard 5-speed with lockup torque converter. Range 5 with 20.5 R 25 on MW544PAU: 40.0 km/h (24.8 mph).
How long is the hydraulic cycle on the spec sheet?
Raise 5.5 sec., dump 2.2 sec., lower (power down) 3.5 sec., total 11.2 sec. for Z-Bar / High-Lift / High-Lift Plus on MW544PAU.
What fuel tank is on the spec sheet?
298 L (79 gal.) on MW544PAU.
Are 544 G or 444 P / 644 P numbers used here?
No. This file is 544 P only (MW544PAU). Do not mix G-Tier or sibling mid-size P-Tier models.
