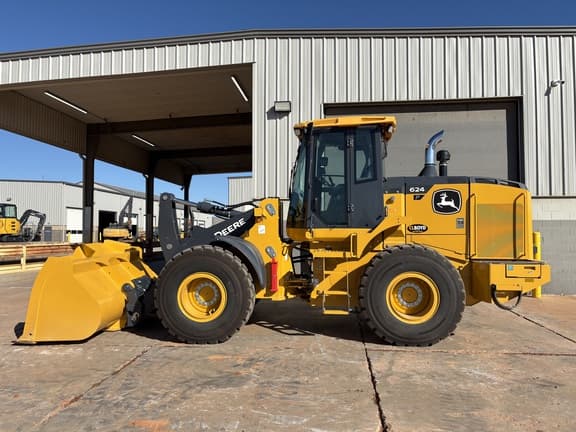

Name: 2025 John Deere 624 P
Brand: John Deere
Price: 310419 USD
Availability: InStock

Question 1

What net horsepower does John Deere publish for the 624 P-Tier?

Accepted Answer

MW624PAU spec sheet and the deere.ca hero list net peak power (ISO 9249) of 143 kW (192 hp) at 1,600 rpm.

Question 2

What operating weight is published for the pin-on Z-Bar 2.7-m3?

Accepted Answer

15 747 kg (34,715 lb.) on MW624PAU and deere.ca specificationData, with standard equipment, ROPS cab, full fuel, and 79-kg (175 lb.) operator.

Question 3

What bucket capacity is published?

Accepted Answer

Pin-on heaped on the Z-Bar 2.7-m3 column is 2.7 m3 (3.5 cu. yd.); struck 2.2 m3 (2.9 cu. yd.). Coupler range on the sheet and deere.ca hero is 1.9–4.0 m3 (2.5–5.25 cu. yd.).

Question 4

What rated operating load is published for that pin-on Z-Bar 2.7-m3?

Accepted Answer

50% of 40-deg. full-turn tipping load, no tire deflection, ISO 14397-1: 5719 kg (12,609 lb.). Full-turn tipping load no tire deflection: 11 439 kg (25,218 lb.). Deere attachments only.

Question 5

What engine is listed?

Accepted Answer

John Deere PowerTech PVS 6068, 6.8 L (414 cu. in.), EPA Final Tier 4/EU Stage V.

Question 6

How long is the Z-Bar hydraulic cycle on the spec sheet?

Accepted Answer

Raise 5.5 sec., dump 2.0 sec., lower (power down) 4.0 sec., total 11.5 sec. on MW624PAU for Z-Bar / High-Lift / High-Lift Plus.

Question 7

What transmission and top travel speed are published?

Accepted Answer

Countershaft-type PowerShift, standard 5-speed with lockup torque converter. Range 5 with 20.5 R 25 tires: 40.0 km/h (24.8 mph).

Question 8

What fuel tank is on the spec sheet?

Accepted Answer

299 L (79 gal.) on MW624PAU and deere.ca specificationData.

Question 9

What are the standard tires?

Accepted Answer

Michelin 20.5 R 25, 1 Star L-3 XHA2. Width over tires 2657 mm (104.6 in.) on the sheet.

Unit	Hours	Asking
2026	164	$319,979
2025	660	$299,419
This unit	704	$310,419
2025	768	$270,419
2025	—	$310,419

Engine manufacturer	John Deere
Engine model	John Deere PowerTech PVS 6068
Displacement	6.8 L (414 cu. in.)
Net peak power (ISO 9249)	143 kW at 1,600 rpm (192 hp at 1,600 rpm)
Gross peak power (ISO 9249)	152 kW at 1,600 rpm (203 hp at 1,600 rpm)
Net peak torque (ISO 9249)	874 Nm at 1,300 rpm (644 lb.-ft. at 1,300 rpm)
Gross peak torque (ISO 9249)	923 Nm at 1,500 rpm (681 ft.-lb. at 1,500 rpm)
Transmission	Countershaft-type PowerShift; standard 5-speed with lockup torque converter
Max travel speed, Range 5, 5-speed with lockup (20.5 R 25)	40.0 km/h (24.8 mph)
Heaped capacity, pin-on Z-Bar 2.7-m3 enhanced-performance bucket with bolt-on edge	2.7 m3 (3.5 cu. yd.)
Struck capacity, pin-on Z-Bar 2.7-m3 enhanced-performance bucket with bolt-on edge	2.2 m3 (2.9 cu. yd.)
Bucket capacity range — coupler	1.9–4.0 m3 (2.5–5.25 cu. yd.)
Breakout force, pin-on Z-Bar 2.7-m3 enhanced-performance	13 605 kg (29,994 lb.)
Tipping load, 40-deg. full turn, no tire deflection, pin-on Z-Bar 2.7-m3	11 439 kg (25,218 lb.)
Rated operating load, 50% full-turn tipping load, no tire deflection (ISO 14397-1), pin-on Z-Bar 2.7-m3	5719 kg (12,609 lb.)
Operating weight, pin-on Z-Bar 2.7-m3 enhanced-performance with bolt-on edge	15 747 kg (34,715 lb.)
Hydraulic cycle times — Z-Bar / High-Lift / High-Lift Plus	Raise 5.5 sec.; dump 2.0 sec.; lower 4.0 sec.; total 11.5 sec.
Fuel tank (with lockable cap)	299 L (79 gal.)
Height to top of cab (dimension A), pin-on configs	3.40 m (11 ft. 2 in.)
Wheelbase (dimension E)	3.09 m (10 ft. 1 in.)
Standard tires (measure tire)	Michelin 20.5 R 25, 1 Star L-3 XHA2
