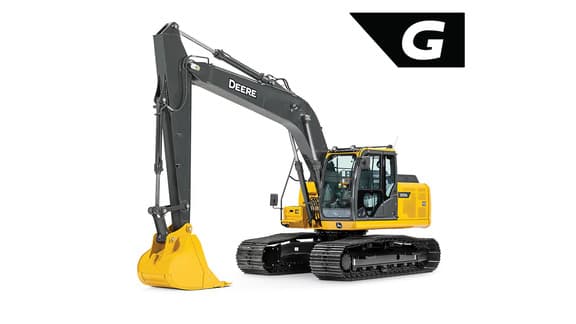

Name: 2026 John Deere 200 G
Brand: John Deere
Price: 250294 USD
Availability: InStock

Question 1

What engine and net power does the 200 G use?

Accepted Answer

ME200GAU.pdf lists John Deere PowerTech PWS 4.5 L, EPA Final Tier 4/EU Stage IV, 4 cylinders, 4.5 L (275 cu. in.). Net Rated Power (ISO 9249) is 109 kW (146 hp) at 2,000 rpm. Live US hero prints Net Power: 109 kW (146 hp). This is not the 210 P sheet (117 kW / 157 hp PowerTech PSS).

Question 2

What operating weight does John Deere publish for the 200 G?

Accepted Answer

ME200GAU.pdf Operating Weight is 20 507 kg (45,170 lb.) with the sheet config (0.93-m³ / 1.31 cu. yd. GP bucket, 3.21-m / 10 ft. 6 in. arm, 3900-kg counterweight, 800-mm shoes). US hero prints Operating Weight: 20,507 kg (45,170 lb.).

Question 3

How deep does the 200 G dig?

Accepted Answer

ME200GAU.pdf Maximum Digging Depth is 7.07 m (23 ft. 2 in.) with the 3.21-m (10 ft. 6 in.) arm and 6.57 m (21 ft. 7 in.) with the 2.71-m (8 ft. 10 in.) arm. US hero prints Maximum Digging Depth: 7.07 m (23 ft, 2 in.).

Question 4

What fuel capacity is listed?

Accepted Answer

ME200GAU.pdf Fuel Tank 285 L (75.3 gal.); DEF Tank 26.7 L (28.2 qt.).

Question 5

Why not use 210 P numbers?

Accepted Answer

200 G is G-Tier (ME200GAU / baseCode 04B0FF). 210 P is P-Tier (ME210PCU / 04E2FF) with different net power, weight, and dig depth. Numbers are not interchangeable.

Engine manufacturer and model	John Deere PowerTech PWS 4.5 L
Displacement	4.5 L (275 cu. in.)
Net rated power (ISO 9249) at 2,000 rpm	109 kW at 2,000 rpm (146 hp at 2,000 rpm)
Operating weight (sheet config)	20 507 kg (45,170 lb.)
Maximum digging depth — 3.21-m (10 ft. 6 in.) arm	7.07 m (23 ft. 2 in.)
Maximum reach — 3.21-m arm	9.94 m (32 ft. 7 in.)
Tail-swing radius	2.55 m (8 ft. 4 in.)
Bucket capacity in operating-weight row	0.93 m³ (1.31 cu. yd.)
Main pump maximum rated flow	191 L/m x 2 (50 gpm x 2)
Fuel tank	285 L (75.3 gal.)
Maximum travel speed, high	5.3 km/h (3.3 mph)
Overall length with arm	9.04 m (29 ft. 8 in.)
Overall height with arm — 3.21-m	3.39 m (11 ft. 1 in.)
Cylinders	4
Non-road emission standard	EPA Final Tier 4/EU Stage IV
