2026 John Deere 135 P
Lowest-hours 135 P on the lot6 other 135 Ps listed — next is 20 hrs.

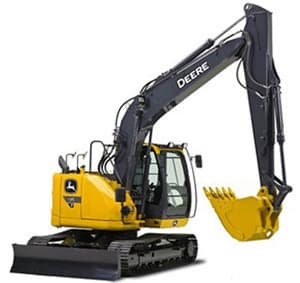

2026 John Deere 135 P excavator. 5 hours. Listed from Oklahoma City, OK. Stock 26420. Asking $252,936.
- Asking
- $252,936
- Hours
- 5
- Stock #
- 26420
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 26420
- Class
- Excavators
- Engine
- Isuzu 3.0L 93 HP Turbocharged & Charge-Air-Cooled FT4 Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other 135 Ps listed
Specification
| Engine manufacturer and model | Isuzu 4JJ1 |
|---|---|
| Displacement | 3.0 L (182 cu. in.) |
| Net rated power (ISO 9249) at 2,000 rpm | 75 kW at 2,000 rpm (101 hp at 2,000 rpm) |
| Operating weight — US hero range | 14 300–15 400 kg (31,526–33,951 lb.) |
| Operating weight, 24-in. triple semi-grouser, without blade | 14 100 kg (31,085 lb.) |
| Maximum digging depth | 5.98 m (20 ft. 0 in.) |
| Maximum reach | 8.86 m (29 ft. 2 in.) |
| Rear-end length / swing radius (tail swing) | 1.49 m (4 ft. 11 in.) |
| Bucket capacity in operating-weight config (GP 36 in.) | 0.5 m³ (0.65 cu. yd.) |
| Main pump maximum rated flow | 105 L/m x 2 (28 gpm x 2) |
| Fuel tank | 220 L (58 gal.) |
| Maximum travel speed, high | 5.5 km/h (3.4 mph) |
| Overall length | 7.39 m (24 ft. 3 in.) |
| Overall height | 2.78 m (9 ft. 1 in.) |
Equipment on this unit
- Operators Station: Cab w/ AC
- Operators Station: Cntrl Pattern Select
- Booms: Standard Boom
- Tracks: Rubber Tracks
- Pad Size: 500 mm (20 in.) Pads
- Buckets: Less Bucket
- Blades: Blade
- Options: Aux Hydraulics
- Options: Camera
- Options: Counterweights
Notes on this unit
- Isuzu 3.0L 93 HP Turbocharged & Charge-Air-Cooled FT4 Diesel Engine
- Automatic Cabin Climate Control
- Rear View Camera
- Auxiliary Hydraulic Lines with AFL Proportional Flow Control
- 9'11" Arm
- JDLink Cellular Telematics w/Machine Alert Monoitoring Services
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine is in the 135 P?
ME135PAJ.pdf Manufacturer and Model is Isuzu 4JJ1, EPA Final Tier 4/EU Stage IV, 3.0 L (182 cu. in.), 4 cylinders.
What is the net rated power of the 135 P?
ME135PAJ.pdf Net Rated Power (ISO 9249) is 75 kW (101 hp) at 2,000 rpm. The live US hero prints Net Power: 75 kW (101 hp).
What operating weight does John Deere publish for the 135 P?
The live US hero prints Operating Weight: 14 300–15 400 kg (31,526–33,951 lb.). ME135PAJ.pdf lists 14 300 kg (31,526 lb.) with 28-in. shoes without blade and 15 400 kg (33,951 lb.) with 28-in. shoes with blade under the stated GP-bucket / 3.01-m arm / 3650-kg counterweight conditions.
How deep does the 135 P dig?
ME135PAJ.pdf Maximum Digging Depth is 5.98 m (20 ft. 0 in.) with the 3.01-m (9 ft. 11 in.) arm. The live US hero prints Digging Depth: 5.98 m (20 ft, 0 in.).
What bucket capacity is published for the 135 P?
The ME135PAJ.pdf operating-weight paragraph uses a 914-mm (36 in.), 0.5-m3 (0.65 cu. yd.) general-purpose bucket. The Heavy Duty 36-in. SAE-heaped row on the same sheet is 0.62 m3 (0.81 cu. yd.).
Other Excavators you might like
SEE ALL EXCAVATORS
2026 John Deere 135 P20 hrs | Oklahoma City, OKSTOCK #26900$252,936VIEW DETAILS
2026 John Deere 135 P133 hrs | Oklahoma City, OKSTOCK #26023$230,678VIEW DETAILS

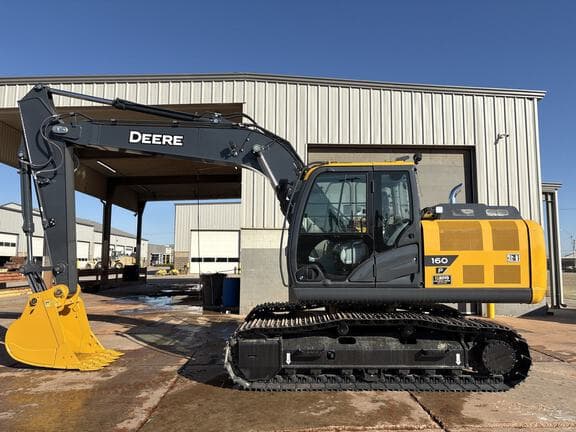

2026 John Deere 160 P34 hrs | Oklahoma City, OKSTOCK #26247$252,650VIEW DETAILS
