2021 John Deere 317G
Lowest ask 317G on the lot3 other 317Gs listed — next is $63,835.

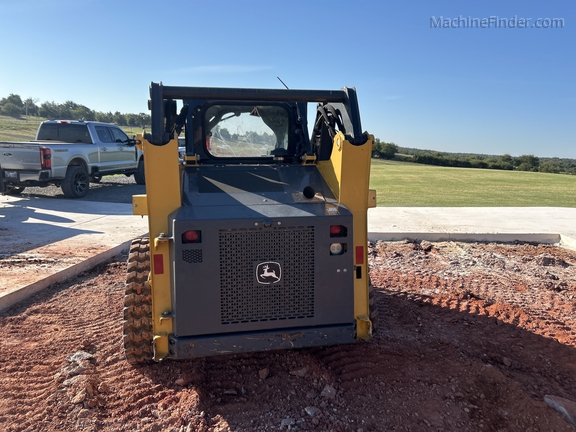

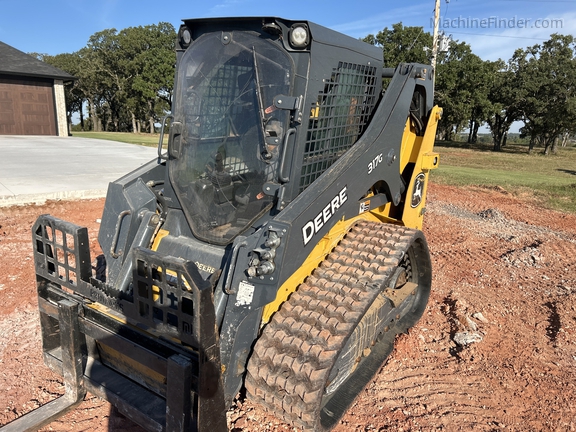

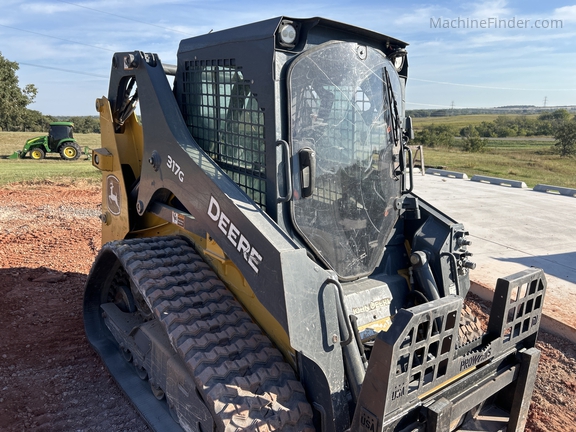

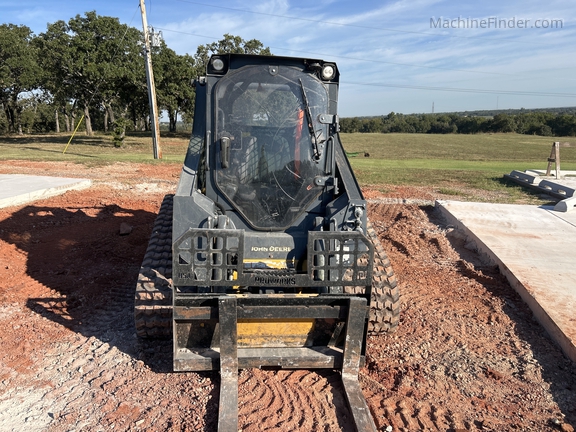

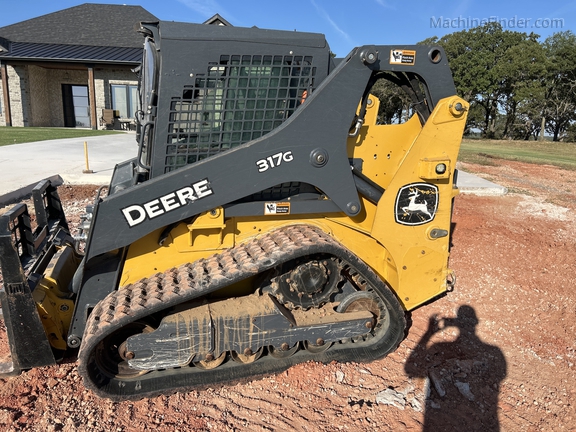

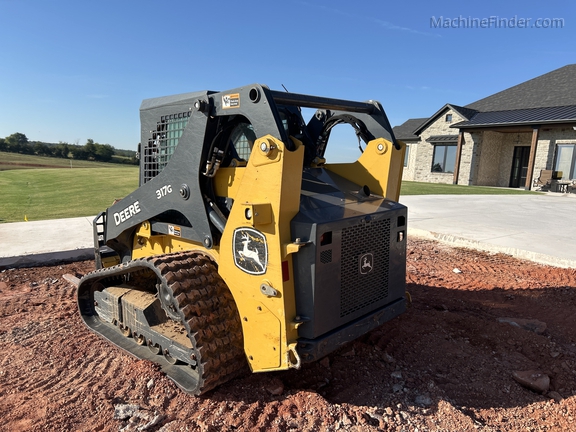

2021 John Deere 317G compact track loader. 942 hours. Listed from Oklahoma City, OK. Stock 250230. Asking $44,000.
- Asking
- $44,000
- Hours
- 942
- Stock #
- 250230
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 250230
- Engine

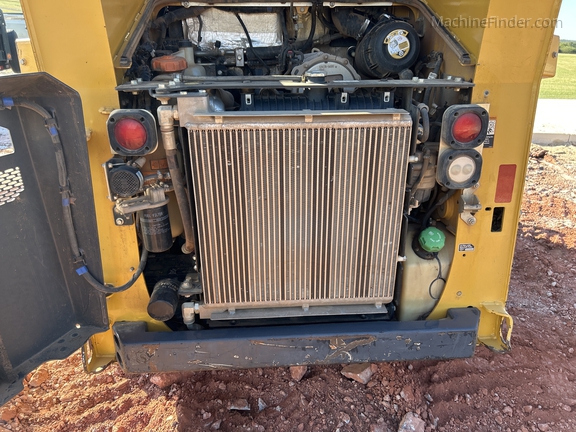

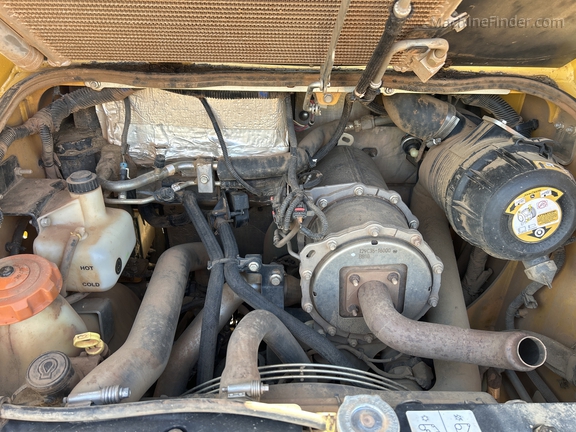

- 2.1L Yanmar Turbocharged 65 HP FT4 Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other 317Gs listed
Specification
| Engine manufacturer and model | Yanmar 4TNV86CHT |
|---|---|
| Displacement | 128 cu. in. |
| Gross rated power (ISO 14396) at 2,600 rpm | 65 hp at 2,600 rpm |
| Net power (SAE J1349 / ISO 9249) at 2,600 rpm | 61 hp at 2,600 rpm |
| Peak torque at 1,690 rpm | 153 ft.-lb. |
| Lift geometry | Vertical |
| Travel speed, single speed | 7.0 mph |
| Auxiliary hydraulic flow, standard | 17 gpm |
| System pressure at couplers | 3,450 psi |
| Operating weight, optional 400-mm (15.8 in.) track | 8,683 lb. |
| Operating weight, standard 320-mm (12.6 in.) track | 8,423 lb. |
| Ground pressure, optional 400-mm (15.8 in.) track | 4.5 psi |
| Tipping load | 6,070 lb. |
| SAE rated operating capacity at 35% tipping load | 2,125 lb. |
| SAE rated operating capacity at 50% tipping load | 3,035 lb. |
| Fuel tank | 19 gal. |
| Height to hinge pin (E) | 121.0 in. (10 ft. 1 in.) |
| Height to top of ROPS (D) | 78.5 in. (6 ft. 6 in.) |

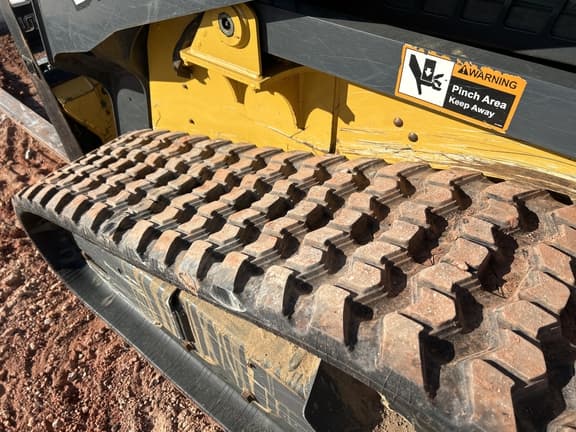

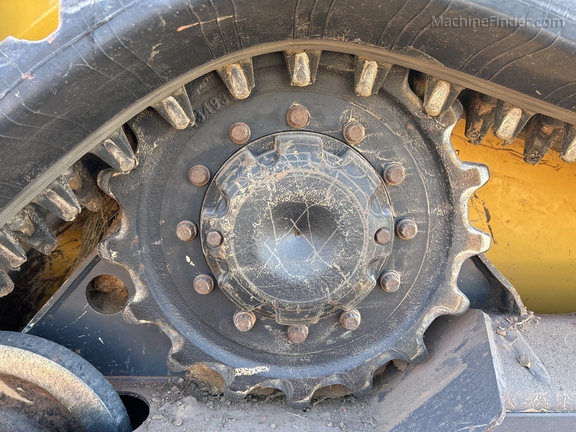

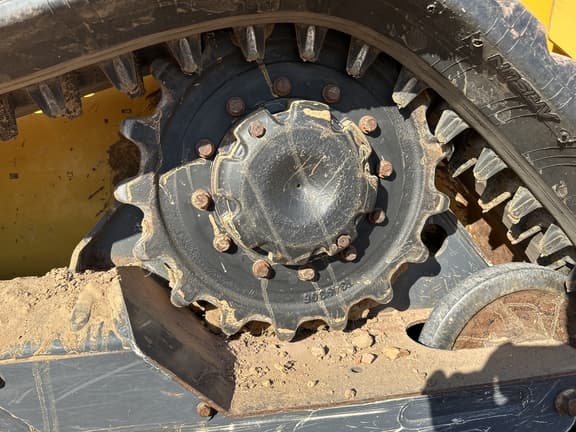

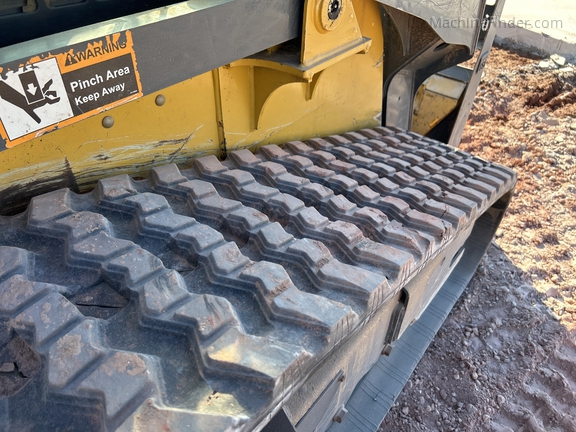

| Rubber tracks | Smooth-ride long-life rubber with steel inserts |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine and horsepower does a 2021 John Deere 317G have?
Yanmar 4TNV86CHT, 2.1 L (128 cu. in.), EPA Final Tier 4 / EU Stage IV. Gross 65 hp (48.5 kW) ISO 14396 at 2,600 rpm. Net 61 hp (45.6 kW) SAE J1349 / ISO 9249 at 2,600 rpm.
What rated operating capacity does a 317G have?
SAE ROC 2,125 lb. (965 kg) at 35% tipping load. 3,035 lb. (1,378 kg) at 50%. 2,250 lb. (1,022 kg) with counterweight. Tipping load 6,070 lb. (2,756 kg).
What does this 317G weigh?
8,683 lb. (3,942 kg) with the optional 400-mm (15.8 in.) track. 8,423 lb. (3,824 kg) with the standard 320-mm (12.6 in.) track.
What hydraulic flow does a 317G have?
Standard auxiliary flow 17 gpm (63 L/m). 3,450 psi (23 787 kPa). Open-center 3-spool valve.

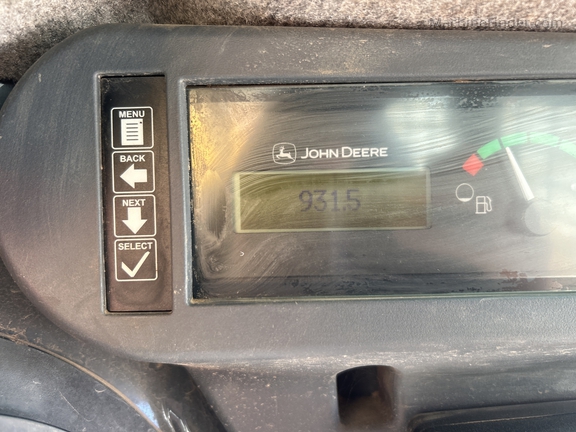

How many hours are on this 2021 John Deere 317G?
942 hours.
What is the asking price on this 317G in Oklahoma City?
$44,000. Listed from Oklahoma City, OK. Stock 250230.
What equipment is on this unit?

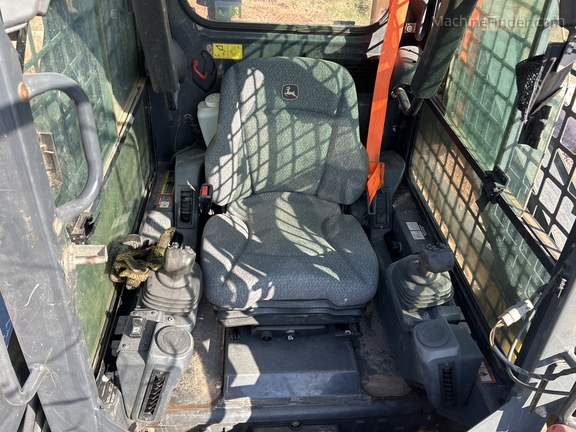

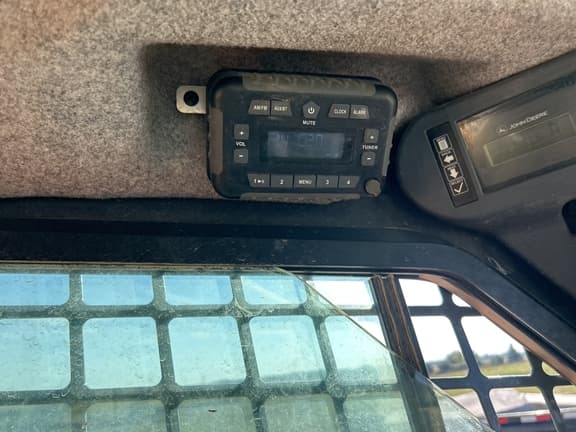

ROPS / FOPS cab with A/C, H-pattern EH joysticks, heated air-ride seat, 15.8 in. wide rubber tracks, 78 in. bucket, auxiliary hydraulics, hydraulic self-leveling, ride control, Power Quik-Tatch, premium LED lighting, rear-view camera, Bluetooth radio.
How fast does a 317G travel?
Single speed 7.0 mph (11.3 km/h).
