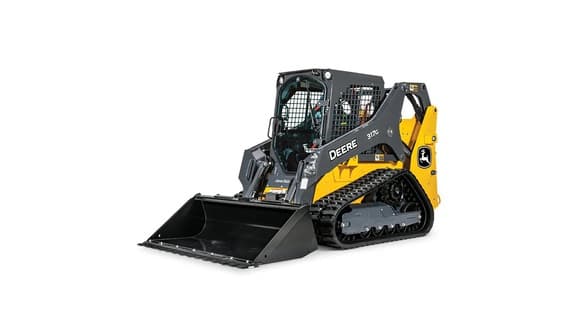

2024 John Deere 317G
2024 John Deere 317G compact track loader. 294 hours. Listed from Oklahoma City, OK. Stock 24584. Asking $67,744.
- Asking
- $67,744
- Hours
- 294
- Stock #
- 24584
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 24584
- Engine
- Yanmar 2.1L 65 HP Turbocharged FT4 Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other 317Gs listed
Specification
| Engine manufacturer and model | Yanmar 4TNV86CHT |
|---|---|
| Displacement | 2.1 L (128 cu. in.) |
| Net power (SAE J1349 / ISO 9249) at 2,600 rpm | 45.6 kW at 2,600 rpm (61 hp at 2,600 rpm) |
| Gross rated power (ISO 14396) at 2,600 rpm | 48.5 kW at 2,600 rpm (65 hp at 2,600 rpm) |
| Peak torque at 1,690 rpm | 207 Nm at 1,690 rpm (153 ft.-lb.) |
| Fuel tank | 71 L (19 gal.) |
| Operating weight, standard 320-mm (12.6 in.) track | 3824 kg (8,423 lb.) |
| Operating weight, optional 400-mm (15.8 in.) track | 3942 kg (8,683 lb.) |
| Tipping load | 2756 kg (6,070 lb.) |
| SAE rated operating capacity at 35% tipping load | 965 kg (2,125 lb.) |
| SAE rated operating capacity at 50% tipping load | 1378 kg (3,035 lb.) |
| Travel speed, single speed | 11.3 km/h (7.0 mph) |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine and ROC does the remaining official 317G PDF publish?
DKAGCTL317.pdf (footer DKAGCTL317 (22-10); CreationDate 2022-10-10 UTC): Yanmar 4TNV86CHT, EPA FT4/EU Stage IV, gross 48.5 kW (65 hp) ISO 14396 at 2,600 rpm, net 45.6 kW (61 hp) SAE J1349 / ISO 9249 at 2,600 rpm. SAE ROC 965 kg (2,125 lb.) at 35%, 1378 kg (3,035 lb.) at 50%, 1022 kg (2,250 lb.) with counterweight. Tipping load 2756 kg (6,070 lb.). 317G is not in the 325G/331G/333G family DKAGCTLL brochure.
What operating weight and fuel capacity are listed?
Operating weight 3824 kg (8,423 lb.) with standard 320-mm (12.6 in.) track; 3942 kg (8,683 lb.) with optional 400-mm (15.8 in.) track. Fuel tank 71 L (19 gal.). Cooling system 12 L (12.7 qt.).
