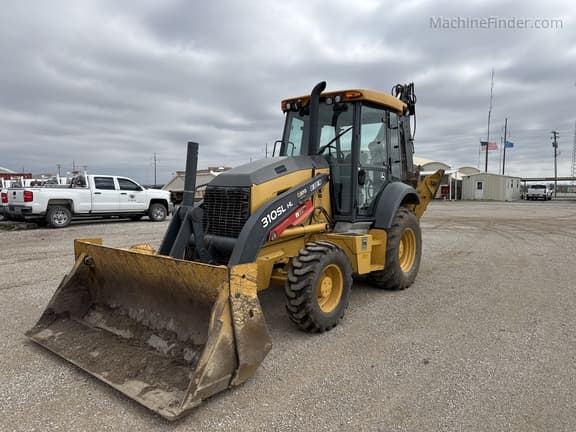

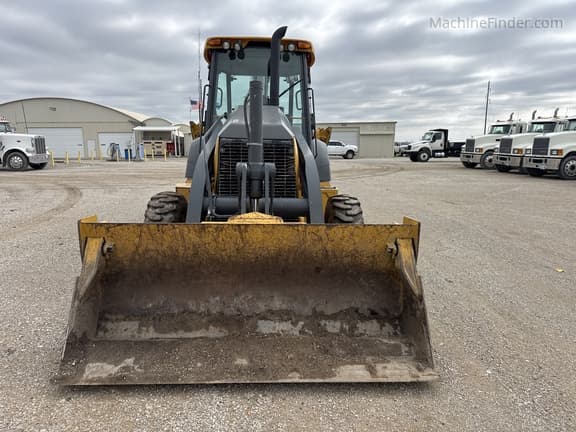

Name: 2018 John Deere 310SL HL
Brand: John Deere
Price: 65235 USD
Availability: InStock

Question 1

What engine and horsepower does the 310SL HL have?

Accepted Answer

John Deere PowerTech EWL 4045HL050 turbocharged, 4.5 L (276 cu. in.), EPA Final Tier 4/EU Stage IV. Gross peak power 86 kW (115 hp) at 1,900 rpm; net peak power 84 kW (113 hp) at 1,900 rpm. Base 310SL is lower horsepower — do not mix.

Question 2

What is the 310SL HL backhoe digging depth?

Accepted Answer

SAE maximum digging depth with standard backhoe is 4.59 m (15 ft. 1 in.). With optional extendable dipperstick extended it is 5.53 m (18 ft. 2 in.).

Question 3

What does the 310SL HL weigh?

Accepted Answer

Operating weight with full fuel, 79-kg operator, standard equipment, and standard bumper is 7516 kg (16,571 lb.). Typical with cab, extendable dipperstick, and 454-kg (1,000 lb.) counterweight is 8495 kg (18,729 lb.).

Question 4

What is lift mode?

Accepted Answer

Sheet lists backhoe lift-mode relief at 27 579 kPa (4,000 psi) vs standard backhoe relief 24 993 kPa (3,625 psi), with higher dig forces in lift mode.

Question 5

Is this the same as a 310SL or 310 P?

Accepted Answer

No. 310SL HL is the heavy-lift L-Series model on DKALBHL. Do not use base 310SL or 310 P-Tier numbers.

Question 6

How many hours are on this 2018 310SL HL?

Accepted Answer

3,728 hours.

Question 7

What is the asking price and location?

Accepted Answer

$65,235 in Oklahoma City, OK. Stock 26769.

Engine manufacturer and model	John Deere PowerTech EWL 4045HL050 turbocharged
Non-road emission standard	EPA Final Tier 4/EU Stage IV
Displacement	4.5 L (276 cu. in.)
Gross peak power	86 kW at 1,900 rpm (115 hp at 1,900 rpm)
Net peak power (ISO 9249)	84 kW at 1,900 rpm (113 hp at 1,900 rpm)
Net peak torque (ISO 9249)	459 Nm at 1,600 rpm (339 lb.-ft. at 1,600 rpm)
Transmission	5-speed full PowerShift with hydraulic reverser; standard AutoShift
Maximum travel speed, forward (gear 5)	40.0 km/h (24.9 mph)
Pump flow at 2,200 rpm, backhoe and loader	159 L/m (42 gpm)
Loader bucket capacity, heavy-duty 92-in.	1.00 m3 (1.31 cu. yd.)
Loader breakout force, 92-in. heavy-duty	47.1 kN (10,598 lb.)
Loader lift capacity, full height, 92-in. heavy-duty	3286 kg (7,244 lb.)
Backhoe digging depth, SAE maximum, standard backhoe	4.59 m (15 ft. 1 in.)
Backhoe bucket-cylinder dig force	69.9 kN (15,723 lb.)
Operating weight, standard equipment and bumper	7516 kg (16,571 lb.)
Fuel tank	128.7 L (34 gal.)
Overall length, transport	7.37 m (24 ft. 2 in.)
Width over tires	2.34 m (7 ft. 8 in.)
Height to top of ROPS/cab	2.81 m (9 ft. 3 in.)

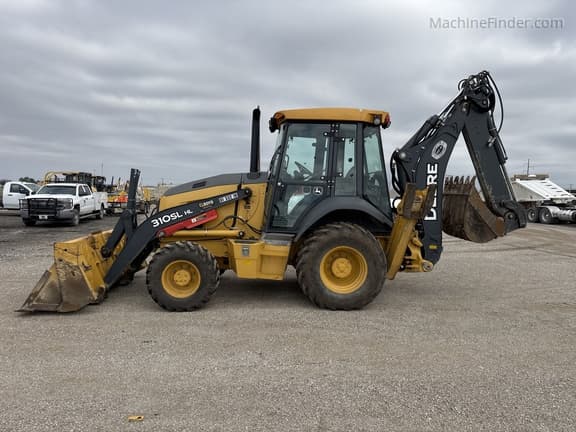

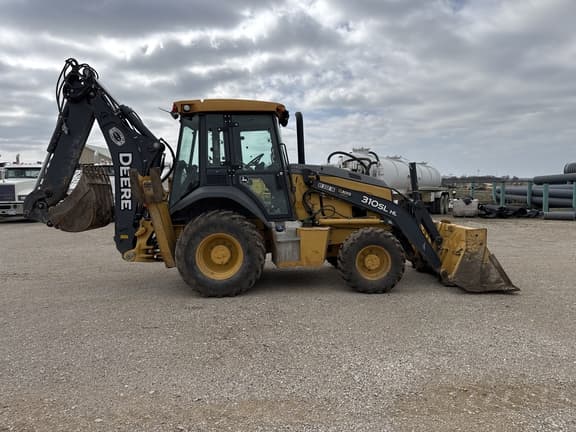

2018 John Deere 310SL HL
