2026 John Deere 320 P

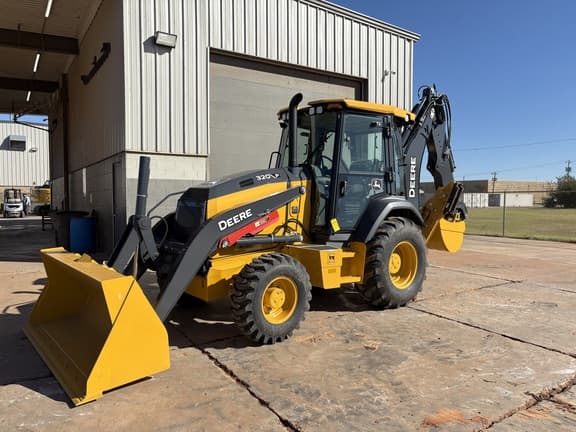

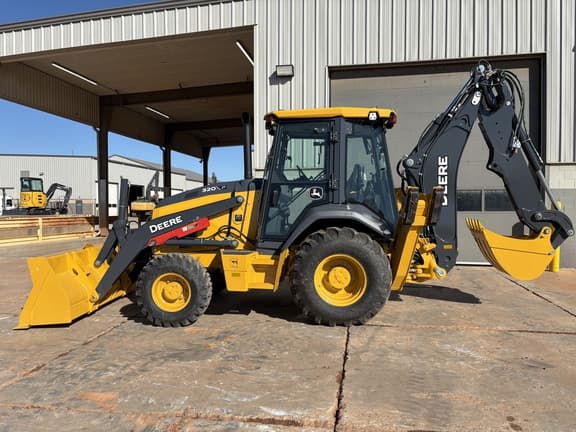

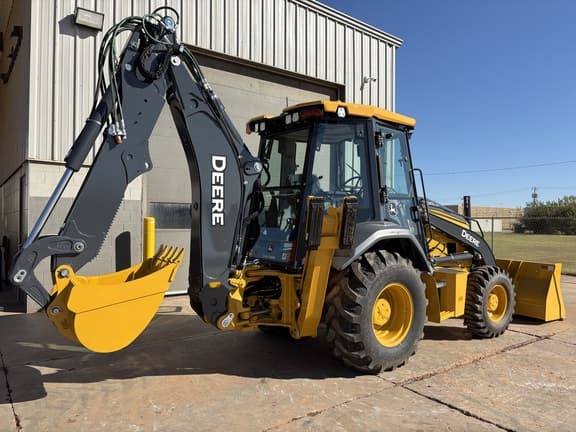

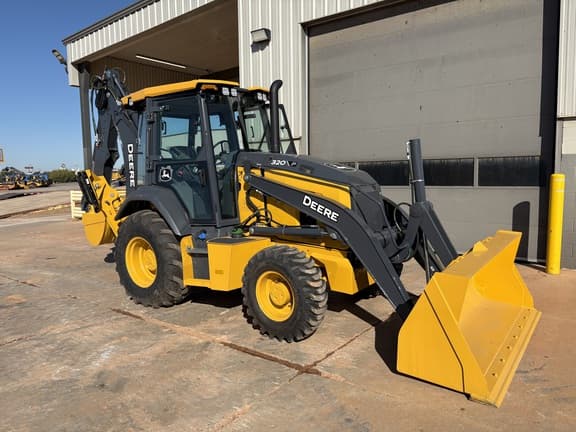

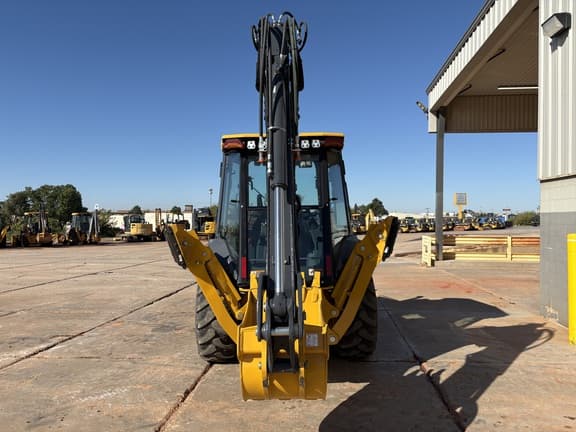

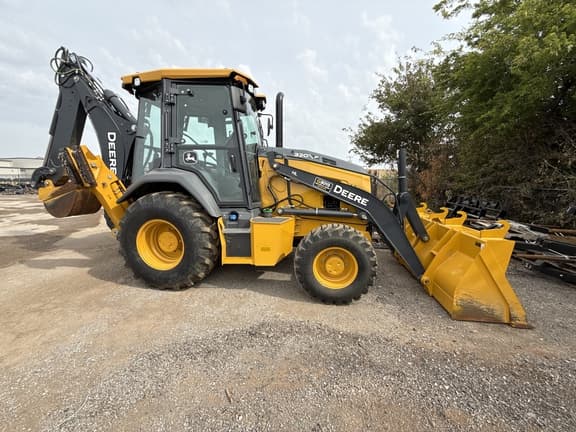

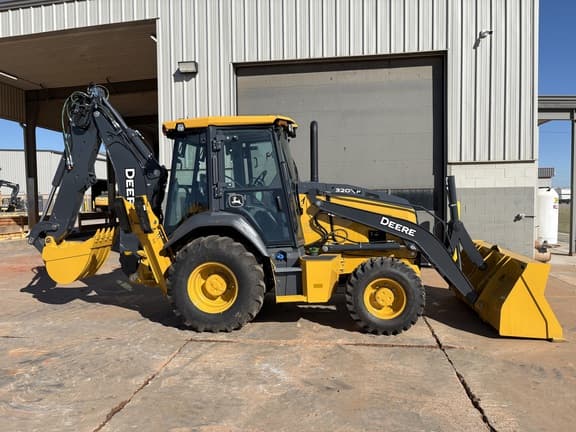

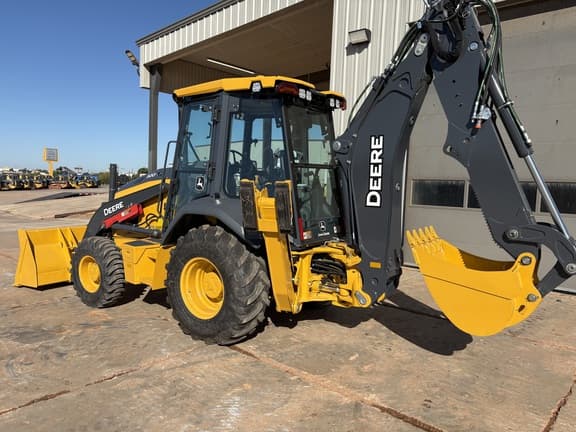

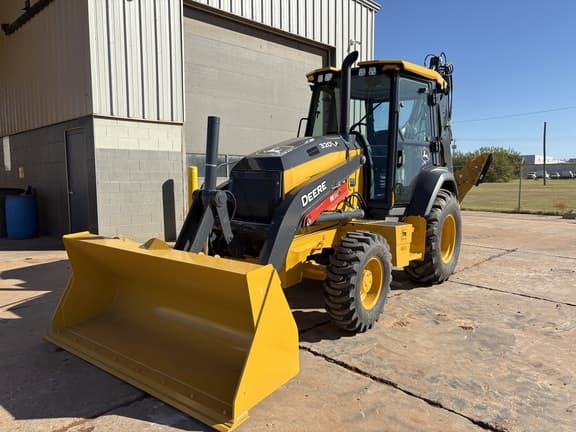

2026 John Deere 320 P backhoe loader. 7 hours. Listed from Lawton, OK. Stock 26013. Asking $165,689.
- Asking
- $165,689
- Hours
- 7
- Stock #
- 26013
- Location
- Lawton, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 26013
- Class
- Backhoe Loaders
- Engine
- 4.5L 115 HP Turbocharged FT4 John Deere Diesel Engine w/Chrome Exhaust
- Yard
- Lawton, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other 320 Ps listed
Specification
| Engine manufacturer | John Deere |
|---|---|
| Engine model | John Deere PowerTech EWL 4.5L 4045HL052 turbocharged |
| Displacement | 4.5 L (276 cu. in.) |
| Gross peak power | 86 kW at 1,900 rpm (115 hp at 1,900 rpm) |
| Net peak power (ISO 9249) | 84 kW at 1,900 rpm (113 hp at 1,900 rpm) |
| Net peak torque (ISO 9249) | 459 Nm at 1,600 rpm (338 lb.-ft. at 1,600 rpm) |
| Transmission | 5-speed, helical-cut gears, full PowerShift with hydraulic reverser standard; electric clutch cutoff on loader lever; AutoShift transmission standard |
| Gears — forward / reverse | 5F / 3R |
| Gear 5 forward maximum speed (highest listed gear) | 40.0 km/h (24.9 mph) |
| Loader bucket capacity — general-purpose 0.86 m3 | 0.86 m3 (1.13 cu. yd.) |
| Loader bucket capacity — general-purpose 1.00 m3 | 1.00 m3 (1.31 cu. yd.) |
| Loader bucket capacity — general-purpose 1.06 m3 | 1.06 m3 (1.39 cu. yd.) |
| Loader bucket capacity — multipurpose | 1.01 m3 (1.32 cu. yd.) |
| Loader lift capacity, full height — GP 0.86 m3, Standard Lift | 3541 kg (7,807 lb.) |
| Loader lift capacity, full height — GP 1.06 m3, Standard Lift | 3489 kg (7,693 lb.) |
| Loader lift capacity, full height — multipurpose, Standard Lift / HL | 2973 kg (6,555 lb.) |
| Digging depth SAE maximum — Standard Lift, standard dipperstick | 4.33 m (14 ft. 3 in.) |
| Digging depth SAE maximum — HL, standard dipperstick | 4.65 m (15 ft. 3 in.) |
| Digging depth SAE maximum — Standard Lift, extendable extended | 5.53 m (18 ft. 2 in.) |
| Operating weight — US/CA hero and PBU Standard Lift canopy configuration | 7748 kg (17,081 lb.) |
| Operating weight — US/CA hero and PBU HL canopy configuration | 7885 kg (17,383 lb.) |
| ISO 6016 operating mass | 8225 kg (18,133 lb.) |
| Typical with cab, extendable dipperstick, and 454-kg (1,000 lb.) counterweight — Standard Lift | 8553 kg (18,856 lb.) |
| Fuel tank | 128.7 L (34.0 gal.) |
| Overall length, transport — Standard Lift | 7.48 m (24 ft. 6 in.) |
Equipment on this unit
- Operators Station: ROPS
- Operators Station: Cab w/ AC
- Operators Station: Pilot Controls
- Powertrain: Turbo
- Powertrain: 4X4 Power Shift Tran
- Arms: Extendible Dipper
- Buckets: 24" Bucket
- Tires: 19.5 Tires
- Options: Ride Control
Notes on this unit
- 4.5L 115 HP Turbocharged FT4 John Deere Diesel Engine w/Chrome Exhaust
- Dual Batteries
- Air Suspension Seat
- LED Work Lights
- 1,000 Lb. Front Counterweight
- AM/FM/Weather Radio, Bluetooth capable with microphone, and 3.5mm auxiliary input
- Galaxy 19.5L-24 12PR Rear & 12.5/80-18 10PR Front
- Stabilizer Guards
- Heavy duty stabilizer pads
- Boom Protection Plate
- Heavy duty front grille screen
- 92" 1.39 cu. yd. General Purpose Loader Bucket w/ BOCE
- JDLink Cellular Telematics w/Machine Alert Monitoring Services
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What net horsepower does John Deere publish for the 320 P-Tier backhoe?
Net peak power (ISO 9249) is 84 kW (113 hp) at 1,900 rpm on MB320PBU.pdf, the US product-page hero (113 hp (84 kW) at 1,900 rpm), the deere.ca hero, the deere.ca Engine Output - Net field 84 (113), and All About Backhoes.
How deep does the current 320 P-Tier backhoe dig?
SAE maximum digging depth with standard dipperstick, Standard Lift, is 4.33 m (14 ft. 3 in.) on MB320PBU.pdf, the US hero, and the deere.ca hero. Heavy-Lift (HL) standard dipperstick is 4.65 m (15 ft. 3 in.) on those same sources. With optional extendable dipperstick, MB320PBU.pdf lists Standard Lift 5.53 m (18 ft. 2 in.) extended and HL 5.59 m (18 ft. 4 in.) extended. Specs are with a 610-mm x 0.21-m3 (24 in. x 7.5 cu. ft.) bucket.
What operating weight does Deere publish?
The live US and deere.ca heroes publish 7748 kg (17,081 lb.) Standard Lift and 7885 kg (17,383 lb.) HL. MB320PBU.pdf assigns those figures to full fuel, 75-kg (165 lb.) operator, standard equipment, canopy, and 204-kg (450 lb.) counterweight. The same PDF also lists ISO 6016 operating mass 8225 kg (18,133 lb.) and typical cab + extendable dipperstick + 454-kg (1,000 lb.) counterweight 8553 kg (18,856 lb.) Standard Lift / 8666 kg (19,105 lb.) HL.
What loader bucket capacity and lift does Deere publish?
MB320PBU.pdf lists four loader buckets: general-purpose 0.86 m3 (1.13 cu. yd.), full-height lift 3541 kg (7,807 lb.) Standard Lift; general-purpose 1.00 m3 (1.31 cu. yd.); general-purpose 1.06 m3 (1.39 cu. yd.), lift 3489 kg (7,693 lb.) Standard Lift; multipurpose 1.01 m3 (1.32 cu. yd.), lift 2973 kg (6,555 lb.). deere.ca Standard General Purpose matches the 0.86 m3 column. The PBU footer says that except where otherwise noted, specifications are based on the 1.06-m3 (1.39 cu. yd.) loader bucket.
What engine is in the current 320 P-Tier backhoe spec sheet?
John Deere PowerTech EWL 4.5L 4045HL052 turbocharged, 4.5 L (276 cu. in.), EPA Final Tier 4/EU Stage IV on MB320PBU.pdf. US page copy: PowerTech EWL 4.5L without the need for a diesel particulate filter.
What transmission and travel speed are published?
5-speed full PowerShift with hydraulic reverser and AutoShift standard (MB320PBU.pdf). Gears 5 forward / 3 reverse. Highest listed gear with 19.5L-24 rear tires is 40.0 km/h (24.9 mph) on MB320PBU.pdf.
