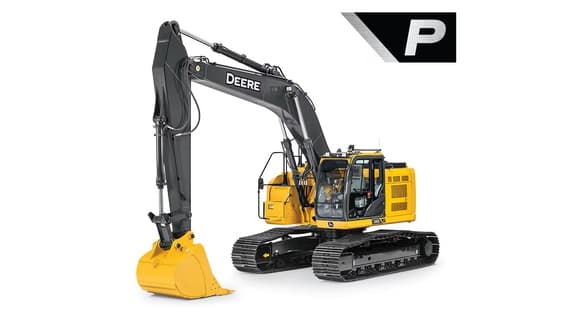

2026 John Deere 345 P

Oklahoma City · Stock 26130

2026 John Deere 345 P excavator. Listed from Oklahoma City, OK. Stock 26130. Sold.

Status: Sold
Stock #: 26130

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 26130
Class: Excavators
Engine: Isuzu 7.8L 249 HP Turbocharged & Air-To-Air Charge-air-Cooled FT4 Diesel Engine
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Engine manufacturer and model	Isuzu 6HK1XASA02
Non-road emission standard	EPA Final Tier 4/EU Stage IV
Net peak power (ISO 9249)	186 kW at 1,900 rpm (249 hp at 1,900 rpm)
Cylinders	6
Displacement	7.8 L (475 cu. in.)
Aspiration	Turbocharged, air-to-air charge-air cooler
Maximum travel speed, low	2.6 km/h (1.6 mph)
Maximum travel speed, high	4.1 km/h (2.5 mph)
Drawbar pull	30 388 kg (66,990 lb.)
Main pumps	3 variable-displacement axial-piston pumps
Maximum rated flow, pump 1 / pump 2	235 L/m x 2 (62 gpm x 2)
Maximum rated flow, pump 3	211 L/m (56 gpm)
System operating pressure, implement	34 300 kPa (4,970 psi)
System operating pressure, travel	35 500 kPa (5,150 psi)
System operating pressure, swing	32 400 kPa (4,700 psi)
Power boost	38 000 kPa (5,510 psi)
Swing speed	10.5 rpm
Swing torque	90 500 Nm (66,750 lb.-ft.)
Fuel tank	380 L (100 gal.)
Hydraulic system	330 L (87 gal.)
Hydraulic tank	160 L (42 gal.)
Engine oil with filter	48 L (12.7 gal.)
Cooling system	48 L (12.7 gal.)
Diesel exhaust fluid (DEF) tank	16 L (4.2 gal.)
Boom length (standard)	6.2 m (20 ft. 4 in.)
Arm length	3.76 m (12 ft. 4 in.)
Arm digging force (ISO)	127 kN (28,550 lb.)
Arm digging force (SAE)	121 kN (27,200 lb.)
Bucket digging force (ISO)	202 kN (45,410 lb.)
Bucket digging force (SAE)	175 kN (39,340 lb.)
Maximum reach	11.46 m (37 ft. 7 in.)
Maximum reach at ground level	11.22 m (36 ft. 10 in.)
Maximum digging depth	7.57 m (24 ft. 10 in.)
Maximum digging depth at 8 ft. 0 in. flat bottom	7.41 m (24 ft. 4 in.)
Maximum cutting height	11.69 m (38 ft. 4 in.)
Maximum dumping height	8.67 m (28 ft. 5 in.)
Minimum swing radius	3.39 m (11 ft. 1 in.)
Maximum vertical wall	6.71 m (22 ft. 0 in.)
Overall length with arm	10.02 m (32 ft. 10 in.)
Overall height of boom with arm	3.42 m (11 ft. 3 in.)
Rear-end length/swing radius	2.09 m (6 ft. 10 in.)
Distance between idler/sprocket centerline	4.05 m (13 ft. 3 in.)
Undercarriage length	4.94 m (16 ft. 2 in.)
Counterweight clearance	1.16 m (3 ft. 10 in.)
Upperstructure width	3.05 m (10 ft. 0 in.)
Cab height	3.23 m (10 ft. 7 in.)
Track shoe width	800 mm (32 in.)
Gauge width	2.59 m (8 ft. 6 in.)
Ground clearance	500 mm (20 in.)
Overall width (800-mm shoes)	3.39 m (11 ft. 1 in.)

Equipment on this unit

Operators Station: Cab w/ AC
Operators Station: Cntrl Pattern Select
Booms: Standard Boom
Tracks: Standard Track
Pad Size: 800 mm (32 in.) Pads
Buckets: Less Bucket
Options: Aux Hydraulics
Options: Multi-Camera

Notes on this unit

Isuzu 7.8L 249 HP Turbocharged & Air-To-Air Charge-air-Cooled FT4 Diesel Engine
12"4" Arm
Auxiliary Hydraulic Lines with AFL Proportional Control
Centralized lubrication system
AM/FM radio
Auto climate control/air conditioner/ heater/pressurizer
Seat, Heated Air-Suspension
Right, Rear, and Left Camera System (Includes Right, Rear and Left LED Lighting)
8700 kg (19180 lb) Counterweight
Grade reference ready mounts
Work lights: 5 LED (1 mounted on frame, 1 on boom left [standard], 2 on top of cab
JDLink Cellular Telematics with Machine Alert Monitoring Services

F.A.Q.

2026 John Deere 345 P — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

What engine does this 345 P use?

John Deere's 345 P-Tier sheet lists an Isuzu 6HK1XASA02, EPA Final Tier 4/EU Stage IV, 6 cylinders, 7.8 L (475 cu. in.), turbocharged with air-to-air charge-air cooler, net peak power (ISO 9249) 186 kW (249 hp) at 1,900 rpm.

How deep and far does it dig with the 12 ft. 4 in. arm?

With the 6.2-m standard boom and 3.76-m (12 ft. 4 in.) arm: maximum digging depth 7.57 m (24 ft. 10 in.), maximum reach 11.46 m (37 ft. 7 in.), maximum dumping height 8.67 m (28 ft. 5 in.).
