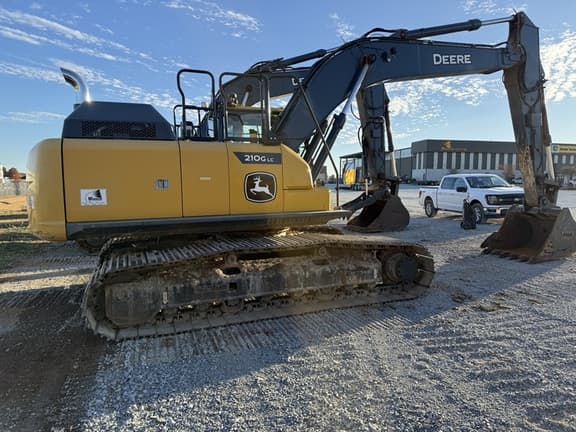

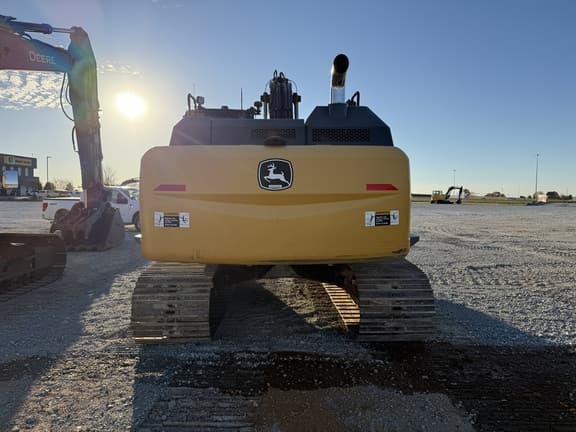

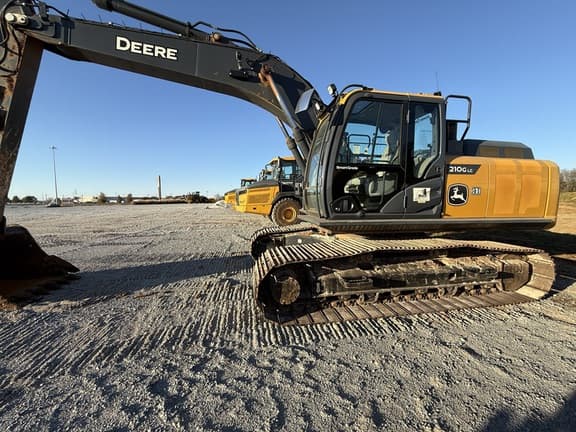

2021 John Deere 210G LC

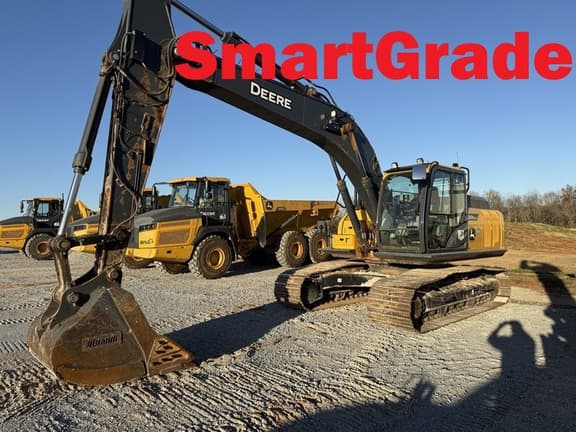

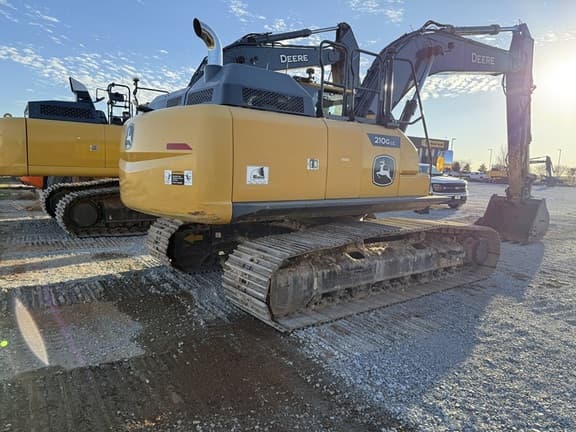

2021 John Deere 210G LC excavator. Listed from Oklahoma City, OK. Stock 26366. Sold.
- Status
- Sold
- Stock #
- 26366
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 26366
- Class
- Excavators
- Engine

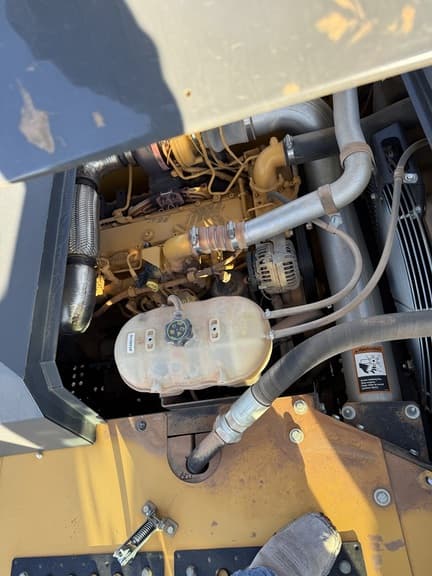

- 6.8L 159 HP Turbocharged & Air-To-Air Charge-Air-Cooled FT4 John Deere Diesel Engine w/Chrome Exhaust Stack
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| Engine manufacturer and model | John Deere PowerTech PVS 6.8L 6068HT106 |
|---|---|
| Non-road emission standard | EPA Final Tier 4/EU Stage IV |
| Net rated power (ISO 9249) | 119 kW at 2,000 rpm (159 hp at 2,000 rpm) |
| Cylinders | 6 |
| Displacement | 6.8 L (415 cu. in.) |
| Operating weight, 800-mm (32 in.) shoes (210G LC) | 23 631 kg (52,097 lb.) |
| Maximum digging depth, 2.91-m (9 ft. 7 in.) arm | 6.67 m (21 ft. 11 in.) |
| Maximum reach, 2.91-m arm | 9.92 m (32 ft. 7 in.) |
| Bucket digging force (ISO), 2.91-m arm | 158 kN (35,520 lbf) |
| Arm digging force (ISO), 2.91-m arm | 114 kN (25,628 lbf) |
| Fuel tank | 403 L (106.5 gal.) |
| DEF tank | 26.6 L (7.0 gal.) |
| Maximum travel speed, high | 5.5 km/h (3.4 mph) |
| Drawbar pull (turtle mode) | 20 700 kg (45,636 lb.) |
| Rear-end length / swing radius | 2.89 m (9 ft. 6 in.) |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine and horsepower does the John Deere 210G LC have?

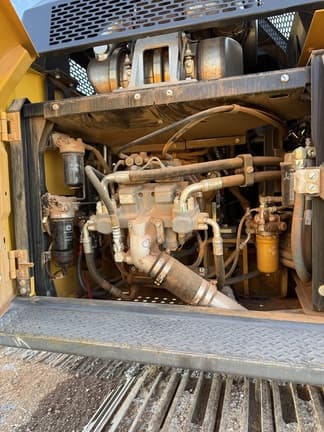

John Deere PowerTech™ PVS 6.8L 6068HT106, 6 cylinders, 6.8 L (415 cu. in.), EPA Final Tier 4/EU Stage IV. Net rated power (ISO 9249) is 119 kW (159 hp) at 2,000 rpm per DKAX210G (21-04). Do not use 210 P PowerTech PSS numbers.
What is the maximum digging depth of the 210G LC?
With the 2.91-m (9 ft. 7 in.) arm, maximum digging depth is 6.67 m (21 ft. 11 in.). At a 2.44-m (8 ft. 0 in.) flat bottom it is 6.50 m (21 ft. 4 in.).
What does the 210G LC weigh?

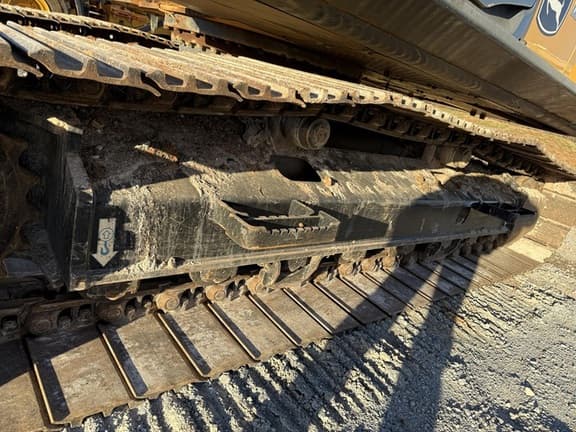

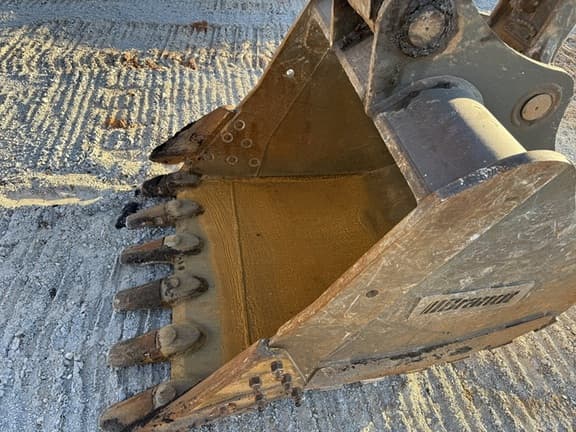

Operating weight with 800-mm (32 in.) triple semi-grouser shoes is 23 631 kg (52,097 lb.) with full fuel, 79-kg operator, 42-in. 0.91-m³ GP bucket, 2.91-m arm, and 4250-kg counterweight (DKAX210G).
What are the bucket and arm dig forces?
With the 2.91-m arm, ISO bucket digging force is 158 kN (35,520 lbf) and ISO arm digging force is 114 kN (25,628 lbf).
What travel speeds and drawbar pull are listed?
Two-speed propel with automatic shift: low 3.5 km/h (2.2 mph), high 5.5 km/h (3.4 mph). Drawbar pull (turtle mode) is 20 700 kg (45,636 lb.).
What are the fuel and DEF capacities?
Fuel tank 403 L (106.5 gal.). DEF tank 26.6 L (7.0 gal.).
Is this the same as a 210 P-Tier?
No. 210G LC is G-Series (DKAX210G). 210 P-Tier uses ME210PCU / ME210PAU sheets with different engine family and figures. Do not mix.
