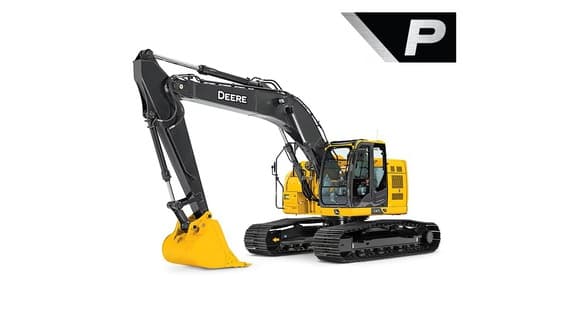

Name: 2026 John Deere 245 P
Brand: John Deere

Question 1

What engine is in the 245 P?

Accepted Answer

ME245PAJ.pdf Manufacturer and Model is Isuzu 4HK1, EPA Final Tier 4/EU Stage IV, 5.19 L (317 cu. in.), 4 cylinders.

Question 2

What is the net rated power of the 245 P?

Accepted Answer

ME245PAJ.pdf Net Rated Power (ISO 9249) is 119 kW (159 hp) at 2,000 rpm. The live US hero prints Net Power: 119 kW (159 hp).

Question 3

What operating weight does John Deere publish for the 245 P?

Accepted Answer

The live US hero prints Operating Weight: 25 800 kg (56,879 lb.), which is the ME245PAJ.pdf 800-mm (32 in.) shoe column. The 700-mm (28 in.) column is 25 500 kg (56,218 lb.).

Question 4

How deep does the 245 P dig?

Accepted Answer

ME245PAJ.pdf Maximum Digging Depth is 6.62 m (21 ft. 8 in.) with the 2.91-m (9 ft. 7 in.) arm. The live US hero prints Digging Depth: 6.62 m (21 ft, 8 in.).

Question 5

What bucket capacity is published for the 245 P?

Accepted Answer

The ME245PAJ.pdf operating-weight paragraph uses a 1219-mm (48 in.), 1.09-m3 (1.43 cu. yd.) heavy-duty bucket. The Heavy Duty 48-in. SAE-heaped table row on the same sheet is 1.00 m3 (1.31 cu. yd.).

Engine manufacturer and model	Isuzu 4HK1
Displacement	5.19 L (317 cu. in.)
Net rated power (ISO 9249) at 2,000 rpm	119 kW at 2,000 rpm (159 hp at 2,000 rpm)
Operating weight, 32-in. triple semi-grouser	25 800 kg (56,879 lb.)
Operating weight, 28-in. triple semi-grouser	25 500 kg (56,218 lb.)
Maximum digging depth	6.62 m (21 ft. 8 in.)
Maximum reach	10.11 m (33 ft. 4 in.)
Rear-end length / swing radius (tail swing)	1.68 m (5 ft. 6.1 in.)
Bucket capacity in operating-weight config (HD 48 in.)	1.09 m³ (1.43 cu. yd.)
Main pump maximum rated flow	212 x 2 + 189 L/m (56 x 2 + 50 gpm)
Fuel tank	380 L (100 gal.)
Maximum travel speed, fast	5.5 km/h (3.4 mph)
Overall length	9.12 m (29 ft. 11 in.)
Overall height	3.02 m (9 ft. 11 in.)
