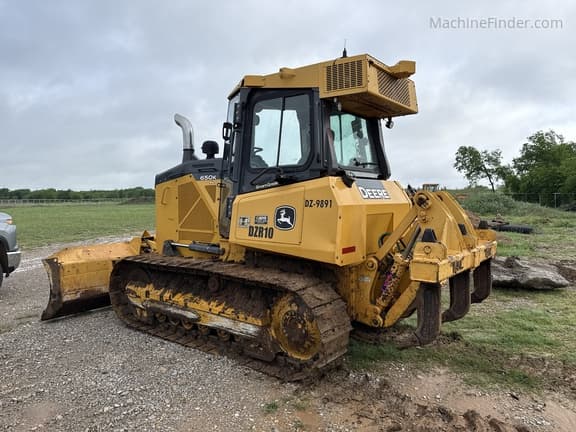

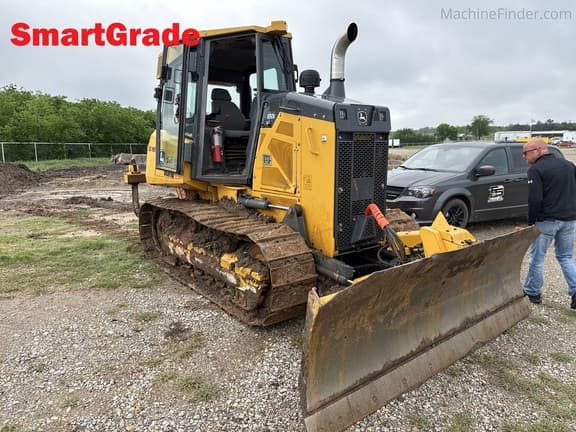

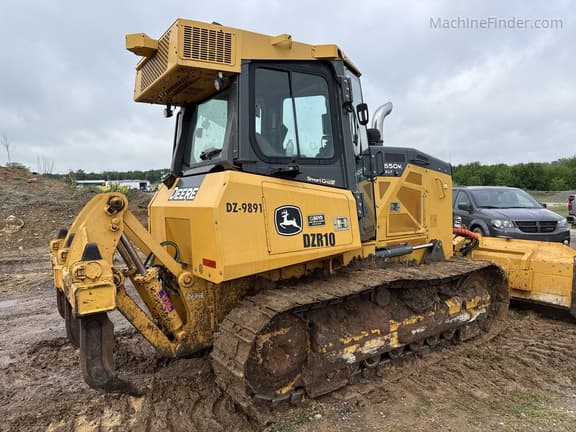

2018 John Deere 650K XLT

6,265 hrs · Ardmore · Stock 26808

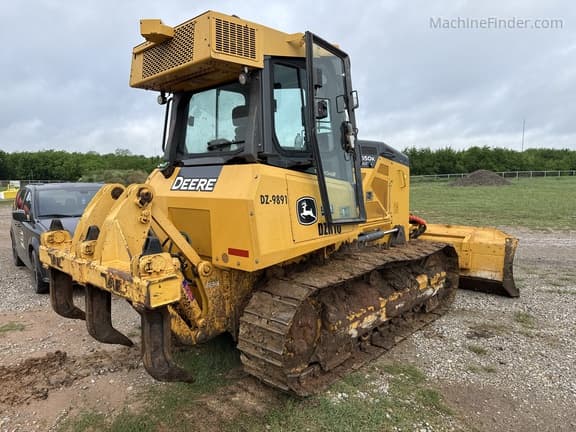

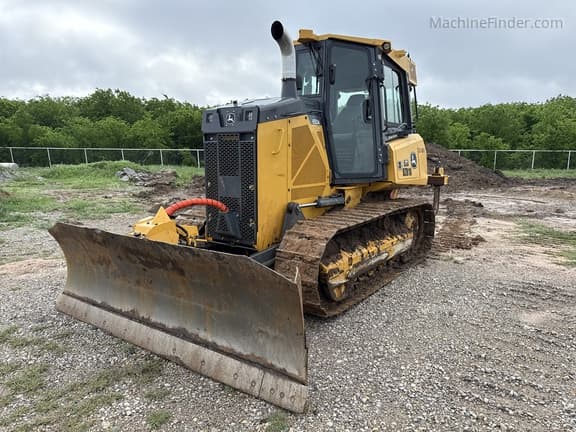

2018 John Deere 650K XLT crawler dozer. 6,265 hours. Listed from Ardmore, OK. Stock 26808. Asking $89,000.

Asking: $89,000

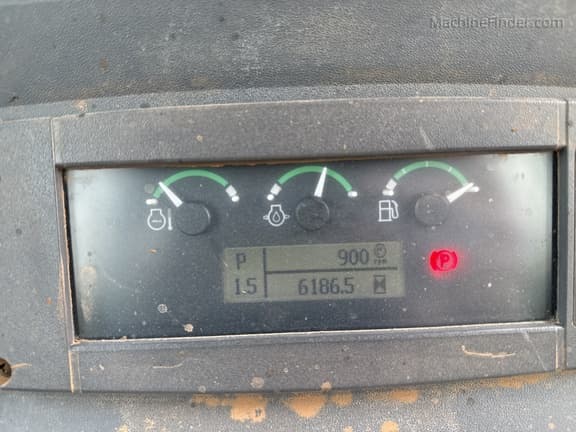

Hours: 6,265
Stock #: 26808

Location: Ardmore, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 26808
Class: Crawler Dozers

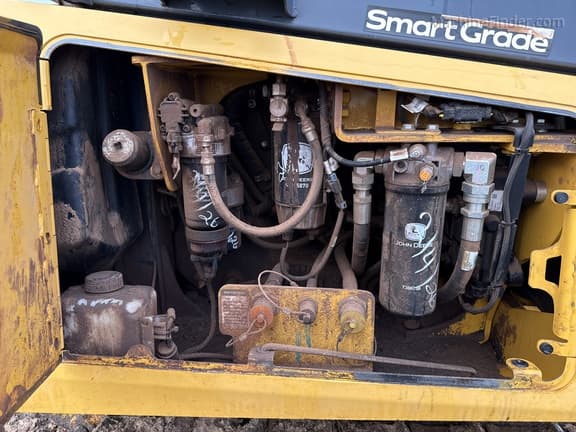

Engine: 4.5L 104 hp Turbocharged & Charge-Air-Cooled FT4 John Deere Diesel Engine w/Chrome Exhaust
Yard: Ardmore, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Engine manufacturer and model	John Deere PowerTech PWS 4045
Non-road emission standard	EPA Final Tier 4 / EU Stage IV
Displacement	4.5 L (276 cu. in.)
SAE net rated power	78 kW at 2,200 rpm (104 hp at 2,200 rpm)
Net peak torque	475 Nm at 1,400 rpm (350 ft.-lb. at 1,400 rpm)
Transmission	Automatic dual-path hydrostatic (HST)
Travel speed forward/reverse	8.0 km/h (5.0 mph)
Maximum travel speed (optional)	9.7 km/h (6.0 mph)
Maximum drawbar pull	148 kN (33,600 lb.)
Base operating weight — 650K XLT PAT	9691 kg (21,320 lb.)
Track gauge — XLT	1550 mm (61 in.)

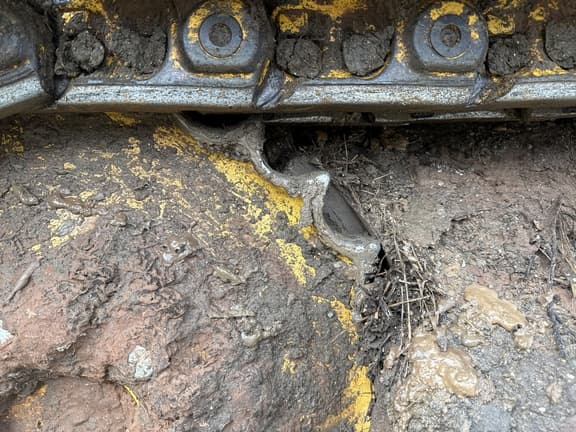

Grouser width — XLT base	457 mm (18 in.)
Ground pressure — XLT	44.1 kPa (6.4 psi)
Track length on ground	2349 mm (92 in.)
Blade type	Power-Angle-Tilt (PAT)
Straight PAT blade width — XLT	2667 mm (8 ft. 9 in. (105 in.))
Straight PAT SAE blade capacity — XLT	2.2 m3 (2.9 cu. yd.)
Blade lift height	818 mm (32.2 in.)
Blade digging depth	500 mm (19.7 in.)
Fuel tank	202 L (53.45 gal.)

F.A.Q.

2018 John Deere 650K XLT — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

Is this the 650K XLT undercarriage, not LGP/WLT?

Yes. Card uses OEM 650K XLT PAT columns only (track gauge 1550 mm / 61 in., 457-mm / 18-in. base shoes, base weight 9691 kg / 21,320 lb.). Do not mix 650K LGP (1750 mm gauge, 710-mm shoes, 10 156 kg / 22,343 lb.).

What net horsepower does John Deere publish?

SAE net rated power 78 kW (104 hp) at 2,200 rpm on the FT4 K-Series dozer sheet for both 650K XLT and 650K LGP.

Is the OEM sheet year-coded to 2018?

No. Published FT4 range sheet (450K/550K/650K) is not model-year coded. Year confidence: medium — 2018 US units in this class were typically Final Tier 4; an older IT4 sheet exists with different XLT base weight (8890 kg / ~19,600 lb.) and must not be mixed.
