2019 John Deere 750K LGP

7,131 hrs · Ardmore · Stock 250016

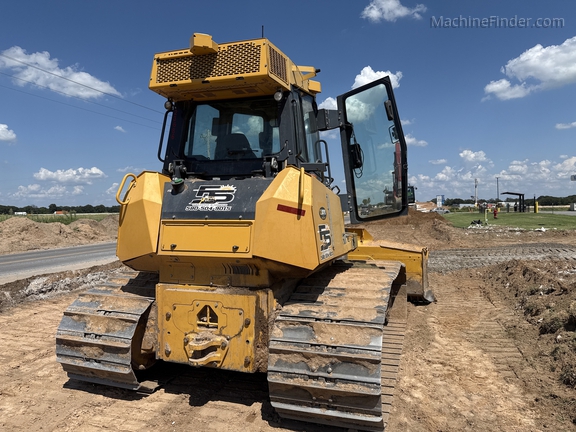

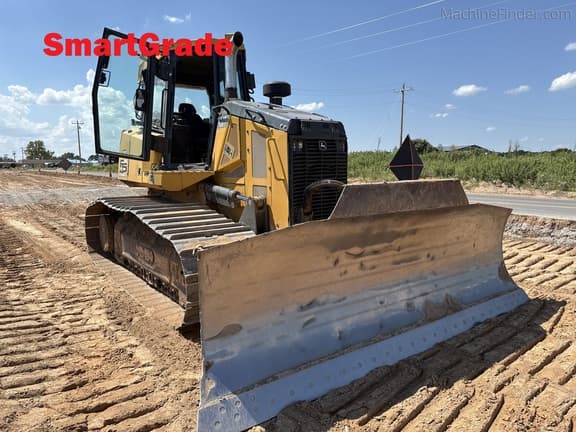

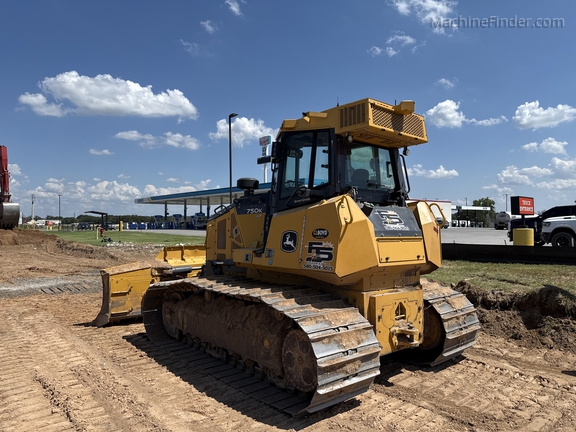

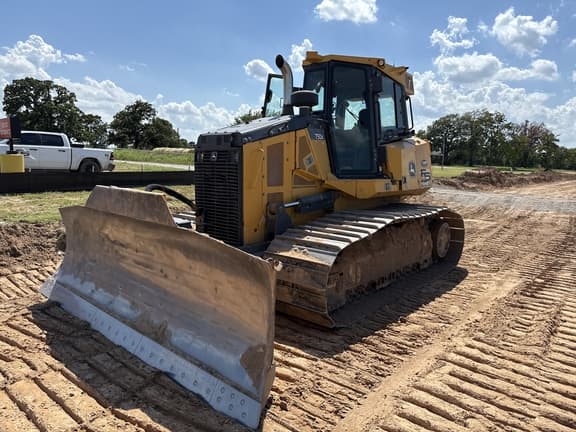

2019 John Deere 750K LGP crawler dozer. 7,131 hours. Listed from Ardmore, OK. Stock 250016. Asking $125,000.

Asking: $125,000

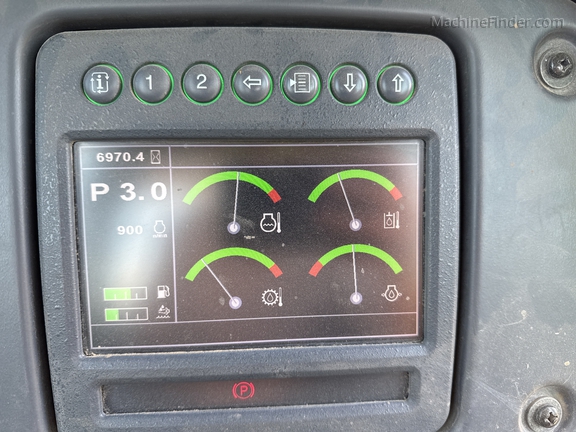

Hours: 7,131
Stock #: 250016

Location: Ardmore, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 250016
Class: Crawler Dozers
Engine: 6.8L155 HP Turbocharged & Charge-Air-Cooled FT4 John Deere Diesel Engine w/Chrome Exhaust Stack Engine w/Chrome Exhaust Stack
Yard: Ardmore, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Config on this file	750K LGP PAT
Engine manufacturer and model	John Deere PowerTech PVX 6068
Non-road emissions standard	EPA Interim Tier 4/EU Stage IIIB
Displacement	6.8 L (414 cu. in.)
SAE net rated power	123 kW at 1,800 rpm (165 hp at 1,800 rpm)
Net peak torque	768 Nm at 1,400 rpm (567 lb.-ft. at 1,400 rpm)
Aspiration	Turbocharged with charge air cooler
Transmission	Automatic, dual-path, hydrostatic drive
Travel speed — forward and reverse	9.7 km/h (6.0 mph)
Travel speed — maximum (optional)	11.0 km/h (6.8 mph)
Drawbar pull — maximum	245 kN (55,000 lb.)
Drawbar pull at 1.9 km/h (1.2 mph)	156 kN (35,000 lb.)
Fuel tank	356 L (94 gal.)
Track gauge — LGP	2134 mm (84 in.)

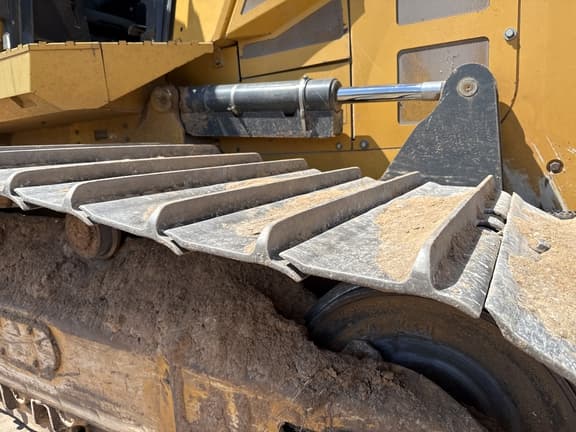

Grouser width — LGP	865 mm (34 in.)
Shoes, each side — LGP	45

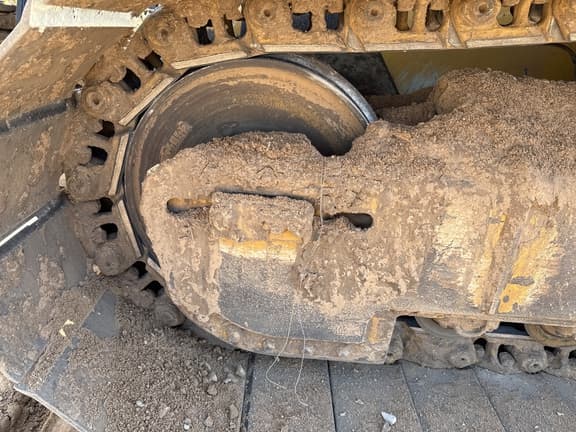

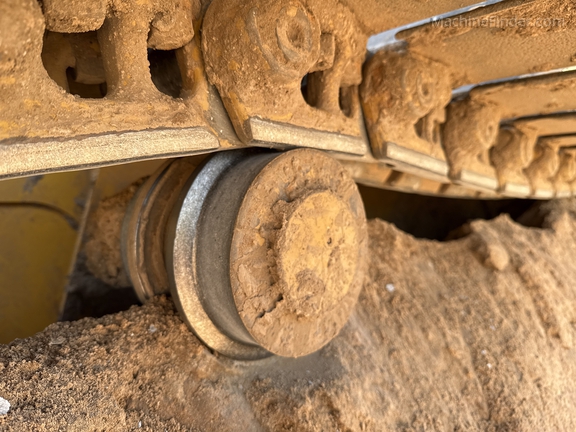

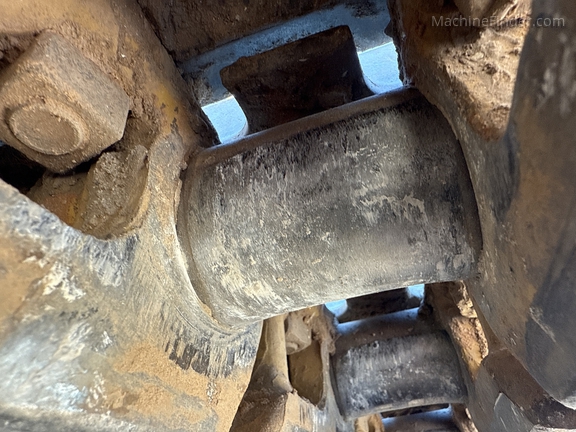

Track rollers, each side — LGP	8
Track length on ground — LGP	3073 mm (121 in.)
Ground contact area — LGP	53 077 cm2 (8,227 sq. in.)
Ground pressure — LGP	31.5 kPa (4.57 psi)

F.A.Q.

2019 John Deere 750K LGP — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

What net power does the OEM LGP column list?

dozers-700k-750k-850k.pdf 750K LGP PAT: SAE Net Rated Power 123 kW (165 hp) at 1,800 rpm. XLT is 116 kW (155 hp) — not used here.

What base weight and ground pressure are published for 750K LGP?

Base weight 17 053 kg (37,595 lb.). Ground pressure 31.5 kPa (4.57 psi). Track gauge 2134 mm (84 in.), grouser 865 mm (34 in.).

Is this sheet Final Tier 4 for a 2019 US unit?

No. The only public OEM brochure found prints EPA Interim Tier 4/EU Stage IIIB (footer 08-07-13). Boyd card for listing 11252123 strings FT4 155 HP. No FT4 750K LGP OEM sheet located — IT4 LGP numbers used with conflict documented.
