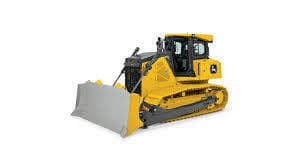

2024 John Deere 850L XLT

3,619 hrs · Oklahoma City · Stock 24030

2024 John Deere 850L XLT crawler dozer. 3,619 hours. Listed from Oklahoma City, OK. Stock 24030. Asking $390,770.

Asking: $390,770
Hours: 3,619
Stock #: 24030

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 24030
Class: Crawler Dozers
Engine: 9.0L 225 SAE Net HP Dual Turbo FT4 John Deere Diesel Engine w/Chrome Exhaust
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Engine manufacturer and model	John Deere PowerTech PSS 6090
Displacement	9.0 L (549 cu. in.)
Non-road emission standard	EPA Final Tier 4/EU Stage IV
SAE net rated power	168 kW at 1,700 rpm (225 hp at 1,700 rpm)
Net peak torque	1126 Nm at 1,500 rpm (831 ft.-lb. at 1,500 rpm)
Transmission	Automatic, dual-path, hydrostatic (HST) drive
Travel speed — forward and reverse	9.7 km/h (6.0 mph)
Drawbar pull — maximum	365 kN (82,000 lb.)
Fuel tank	439 L (116 gal.)
Overall height to roof (includes antenna base and grouser height)*	3344 mm (11 ft. 0 in.)
Track gauge — XLT PAT	2134 mm (84 in.)
Grouser / shoe width — XLT	610 mm (24 in.)
Ground contact area — XLT	44 115 cm2 (6,838 sq. in.)
Ground pressure (ISO) — XLT PAT	49.1 kPa (7.1 psi)
Base operating weight — XLT PAT	22 126 kg (48,779 lb.)
Base operating weight — XLT OSD	21 581 kg (47,578 lb.)
Overall length — XLT PAT	5727 mm (18 ft. 9.5 in. (225 in.))
PAT blade width — XLT	3708 mm (146 in. (12 ft. 2 in.))
PAT SAE capacity — XLT	3.9 m3 (5.2 cu. yd.)

F.A.Q.

2024 John Deere 850L XLT — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

What engine and net power does the 850L XLT use?

Same DKALDZR850 (23-09) shared engine: PowerTech PSS 6090, 9.0L (549 cu. in.), SAE Net Rated Power 168 kW (225 hp) at 1,700 rpm. Undercarriage/blade figures in this file are XLT only.

What base operating weight is published for 850L XLT?

XLT PAT 22 126 kg (48,779 lb.); XLT OSD 21 581 kg (47,578 lb.). WLT/LGP weights are not used here.

What track gauge and PAT blade does XLT publish?

XLT PAT gauge 2134 mm (84 in.), grouser 610 mm (24 in.), ground pressure 49.1 kPa (7.1 psi). PAT Straight blade 3708 mm (146 in.), SAE capacity 3.9 m3 (5.2 cu. yd.).

Why is this file separate from 850L WLT?

Lot model strings are 850L XLT and 850L WLT. DKALDZR850 prints separate XLT/WLT/LGP columns. Track gauge, ground pressure, base weight, and blade width differ — never merged.
