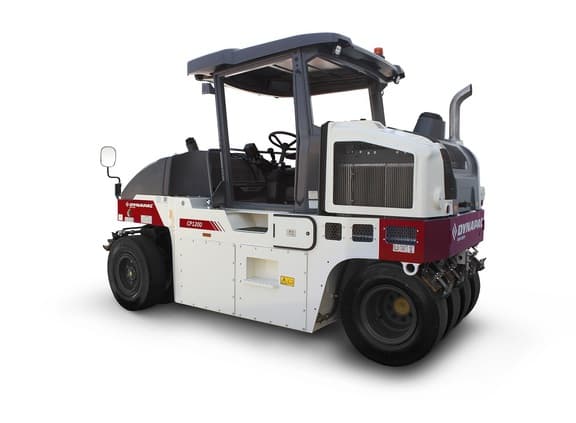

2026 Dynapac CP1200
2026 Dynapac CP1200 compaction equipment. 12 hours. Listed from Oklahoma City, OK. Stock 26040. Asking $125,242.
- Asking
- $125,242
- Hours
- 12
- Stock #
- 26040
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 26040
- Class
- Compaction Equipment
- Engine
- Cummins QSF 2.8L FT4 Engine (74HP)
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| Engine manufacturer and model | Cummins QSF 2.8 TIER 4 |
|---|---|
| Power (SAE J1995) | 55 kW @ 2,500 rpm (74 HP @ 2,500 rpm) |
| Rolling width (CP1200) | 1760 mm (5.77 ft) |
| Wheels (front / rear) | 5 front, 4 rear |
| Tire size (CP1200) | 7.50-15 |
| Tire width (X, CP1200) | 217 mm (8.54 in) |
| Tire overlap (T, CP1200) | 24 mm (0.94 in) |
| Operating mass, empty (ROPS) | 5555 kg (12,247 lbs) |
| Shipping mass (ROPS) | 5265 kg (11,607 lbs) |
| Operating mass, 12 ballasts (ROPS) | 11005 kg (24,262 lbs) |
| Wheelbase (A, between axles) | 2760 mm (108.66 in) |
| Total width (B, CP1200) | 2057 mm (80.98 in) |
| Total height (H1) | 2935 mm (115.55 in) |
| Total height, platform (H2) | 2208 mm (86.93 in) |
| Height from the ground (K) | 268 mm (10.55 in) |
| Total length (L) | 3690 mm (145.28 in) |
| Turning radius, outer / inner | 7090 mm / 4390 mm (279.13 in / 172.83 in) |
| Vertical oscillation | 3.5 deg. |
| Steering (direction) angle | 28 deg. |
| Fuel tank | 215 L (56.79 gal.) |
| Water tank | 410 L (108.3 gal.) |
| Hydraulic oil reservoir | 70 L (18.49 gal.) |
Notes on this unit
- 9-Wheel Pneumatic Roller
- 69 Inch Rolling Width
- Cummins QSF 2.8L FT4 Engine (74HP)
- OROPS Canopy
- 7.5X15, 14PLY Tires
- L.E.D. Lights
- Pressurized Water System (108 Gal. Tank)
- Swivel Seat
- LHP Express Telematics
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine does this CP1200 have?
Dynapac's CP1200/CP1200W instruction manual lists the Cummins QSF 2.8 Tier 4 at 74 HP (55 kW) @ 2,500 rpm (SAE J1995).
How wide does it roll and on what tires?
The CP1200 has 5 front and 4 rear wheels on 7.50-15 tires, with a rolling width of 1760 mm (5.77 ft) and 24 mm (0.94 in) tire overlap.
What does it weigh, empty and ballasted?
With ROPS: operating mass empty 5555 kg (12,247 lbs), shipping mass 5265 kg (11,607 lbs), and 11005 kg (24,262 lbs) with 12 ballasts.
What are the fuel and water capacities?
Fuel tank 215 L (56.79 gal.) and water tank 410 L (108.3 gal.).
