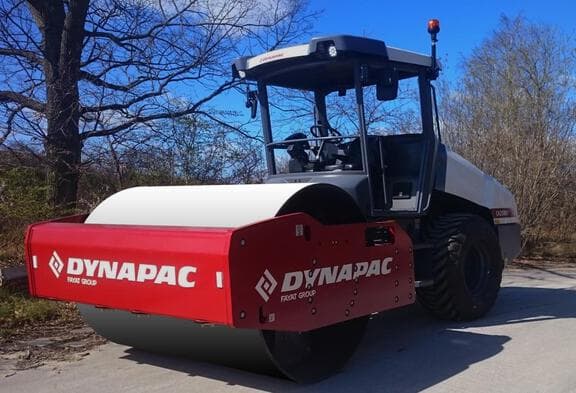

2024 Dynapac CA2500D
Lowest-hours CA2500D on the lot3 other CA2500Ds listed — next is 418 hrs.
2024 Dynapac CA2500D compaction equipment. 215 hours. Listed from Oklahoma City, OK. Stock 240334. Asking $139,000.
- Asking
- $139,000
- Hours
- 215
- Stock #
- 240334
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 240334
- Class
- Compaction Equipment
- Engine
- Cummins QSF3.8L 120 HP FT4 Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Other CA2500Ds listed
Specification
| OEM product name | Dynapac CA2500D |
|---|---|
| Engine manufacturer / model (discontinued pages) | Cummins QSF3.8 (IV/4final) |
| Engine type | Water cooled turbo Diesel |
| Rated power, SAE J1995 (discontinued pages) | 89 kW @ 2,200 rpm (120 hp @ 2,200 rpm) |
| Operating mass (incl. ROPS) | 10100 kg (22,300 lbs) |
| Operating mass (incl. Cab) | 10300 kg (22,700 lbs) |
| Module mass (front, std/rear) | 5600/4700 kg |
| Max. operating mass | 11900 kg (26,200 lbs) |
| Static linear load (hero) | 26 kg/cm (146 lbs/in) |
| Compaction / working width | 2130 mm (84 in) |
| Speed range | 0 - 12 km/h (0 - 5 mph) |
| Tire size (8 ply) | 23.1 x 26 AW |
| Max. theoretical gradeability | 51 % |
| Vertical oscillation | ±9° |
| Fuel tank capacity (discontinued pages) | 272 l (72 gal) |
| DEF tank capacity (discontinued pages) | 20 l (5 gal) |
| Drive / vibration / steering | Hydrostatic / Hydrostatic / Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking / emergency brake | Failsafe multidisc brake in drum gear box and in rear axle. |
| Wheelbase (A) | 2990 mm (118 in) |
| Width, front (B1) / rear (B2) | 2300 mm / 2130 mm (91 in / 84 in) |
| Drum diameter (D) | 1500 mm (59 in) |
| Height, with ROPS/cab (H) | 2870 mm (113 in) |
| Ground clearance (K1) / curb clearance (K2) | 450 mm / 450 mm (18 in / 18 in) |
| Length (L) | 5990 mm (236 in) |
| Overhang right / left (O1 / O2) | 105 mm / 105 mm (4 in / 4 in) |
| Drum shell thickness (S) | 25 mm (1 in) |
| Turning radius outside / inside (R1 / R2) | 5450 mm / 3300 mm (215 in / 130 in) |
| Steering angle | ±38° |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What operating mass is published on the discontinued pages?
US-EN: operating mass incl. ROPS 22,300 lbs; incl. Cab 22,700 lbs; max. 26,200 lbs. EN: 10100 kg / 10300 kg / 11900 kg. Module mass (front, std/rear) 5600/4700 kg on both pages (US-EN prints that row in kg).
Is this a smooth-drum roller?
Yes. Discontinued pages are titled Dynapac CA2500D, single drum vibratory rollers. No pad count / pad height rows. Tires 23.1 x 26 AW. CA2500PD is the padfoot model and is not used here. CA2500D HC is a different model and is not used here.
What compaction / working width is published?
US-EN hero compaction width and dimension W working width 84 in. EN hero compaction width 2130 mm; dimension W drum width 2130 mm.
What travel speed and gradeability are published?
US-EN speed range 0 - 5 mph. EN speed range 0 - 12 km/h. Max. theoretical gradeability 51 % on both discontinued pages. Tires 23.1 x 26 AW (8 ply).
What fuel-tank figure is published on the discontinued pages?
US-EN 72 gal; EN 272 l. DEF US-EN 5 gal; EN 20 l. Current /dynapac-ca2500d25 fuel figures are different and are not used in this 2024 pack.
Why is the discontinued QSF3.8 sheet used for 2024 lot units?
Boyd 2024 CA2500D cards list Cummins QSF3.8L 120 HP (IV/T4final or FT4). That matches the discontinued official /dynapac-ca2500d sheet (QSF3.8 (IV/4final) 89 kW / 120 hp). The current /dynapac-ca2500d25 sheet publishes Cummins F3.8 at a higher rated power and is the 2026 pack mix-guard — not copied into 2024.
How many hours and what asking price are on the representative 2024 unit?
Listing 10276952 / stock 24471: 666 hours. Oklahoma City, OK. Asking $139,000. Sister 2024 listings on the same key: 10276953 / stock 24472 (533 hrs) and 10739761 / stock 240334 (203 hrs, $139,000), all OKC.
Are amplitude and frequency published on the public discontinued page?
No public numbers. Compaction data is labeled LEVEL II and requires MyDynapac login on the discontinued US-EN page. Not copied.
