2015 John Deere 323E

1,259 hrs · Oklahoma City · Stock 260230

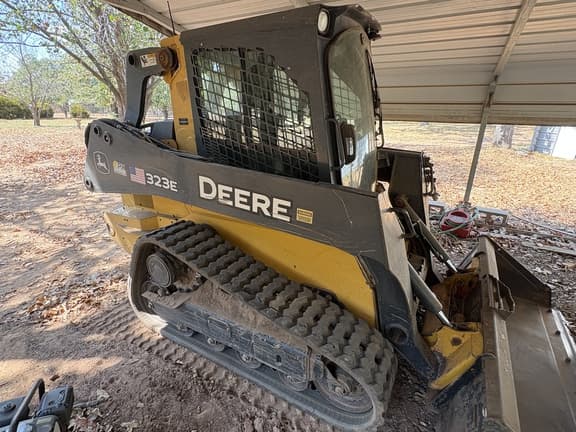

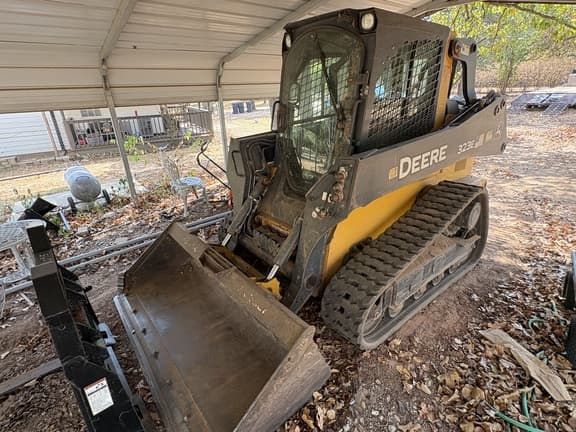

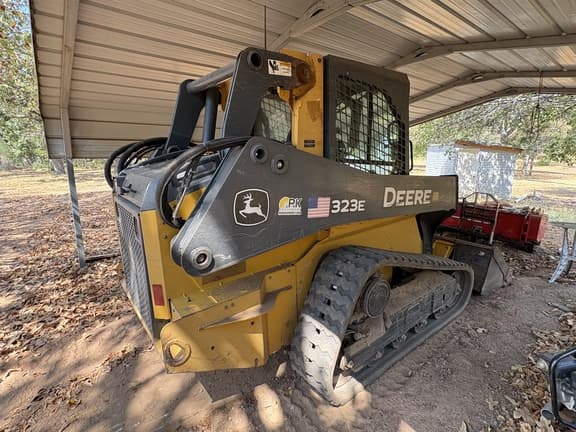

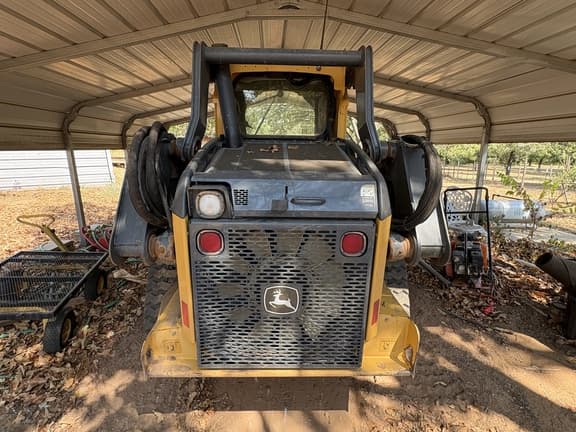

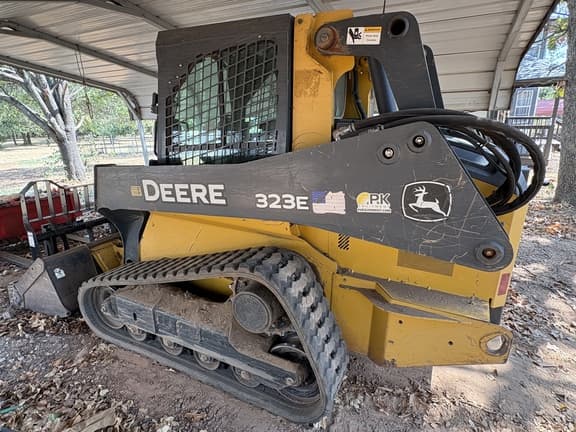

2015 John Deere 323E compact track loader. 1,259 hours. Listed from Oklahoma City, OK. Stock 260230. Asking $34,000.

Asking: $34,000

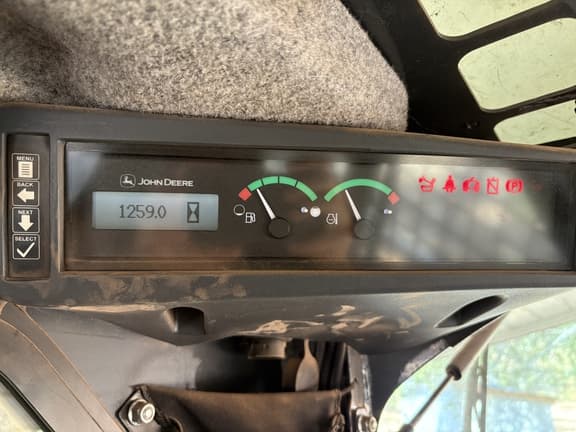

Hours: 1,259
Stock #: 260230

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 260230
Class: Compact Track Loaders
Engine: Yanmar 3.3L Turbocharged FT4 John Deere Diesel Engine
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Engine manufacturer and model	Yanmar 4TNV98CT
Non-road emission standard	EPA Final Tier 4/EU Stage IV
Cylinders	4
Displacement	3.3 L (203 cu. in.)
Aspiration	Turbocharged
Net peak power (SAE J1349 / ISO 9249)	52.5 kW at 2,500 rpm (70 hp at 2,500 rpm)
Gross rated power (ISO 14396)	54.8 kW at 2,500 rpm (74 hp at 2,500 rpm)
Peak torque	280 Nm at 1,800 rpm (207 ft.-lb. at 1,800 rpm)
Torque rise	34% at 1,800 rpm
Rated engine speed	2,500 rpm
Air cleaner	Dry dual element
Drive pump	Axial-piston hydrostatic
Brakes	Integral, automatic, spring-applied, hydraulically released wet-disc brake
Track width, standard	320 mm (12.6 in.)
Track rollers (per side)	4 triple-flange smooth-ride all-steel rollers
Track idlers (per side)	2 double-flange smooth-ride all-steel rollers
Bearings/seals (rollers/idlers)	Heavy-duty journal bearings and metal face seals
Tractive effort	3859 kgf (8,500 lbf)
Pump flow, total with high-flow option	95 L/m (25 gpm)
System pressure at couplers	22 408 kPa (3,250 psi)
Hydraulic horsepower, high flow (calculated)	35.3 kW (47.4 hp)
Electrical system voltage	12 volt
Alternator rating	70 amp
Lights	Halogen, 2 front and 1 rear
Operator protective structure	ROPS (ISO 3471) / FOPS (ISO 3449) structure with quick-pivot
Fuel tank	76 L (20 gal.)
Length without bucket	2.85 m (112 in. (9 ft. 4 in.))
Width without bucket, 320-mm (12.6 in.) track	1.82 m (71.8 in. (6 ft. 0 in.))
Height to top of ROPS	2.05 m (80.6 in. (6 ft. 9 in.))
Height to hinge pin	3.12 m (122.8 in. (10 ft. 3 in.))
Ground clearance	0.25 m (9.8 in.)
Angle of departure	31.4 deg.
Dump angle (full lift height)	42 deg.
Bucket rollback (ground level)	32 deg.

Equipment on this unit

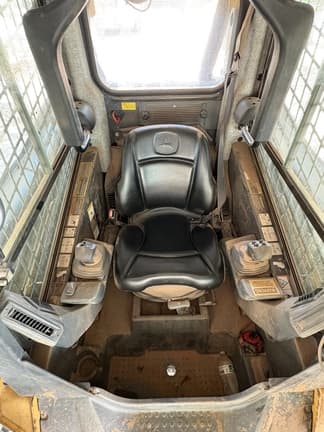

Operators Station: ROPS

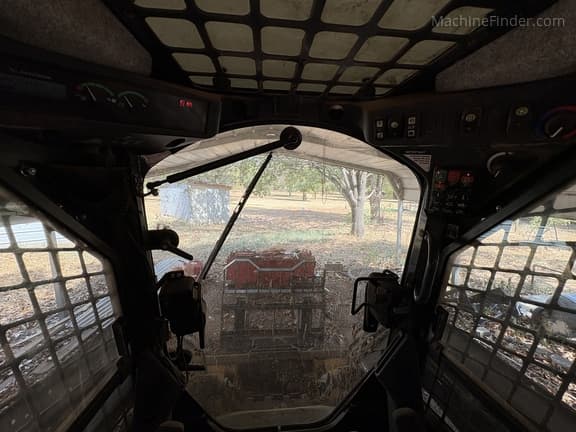

Operators Station: Cab w/ AC
Operators Station: ISO Pattern
Operators Station: H Pattern
Operators Station: Joystick Controls
Tracks: Narrow Rubber Tracks
Buckets: 72" Bucket
Buckets: 78" Bucket
Options: Hi-Flo

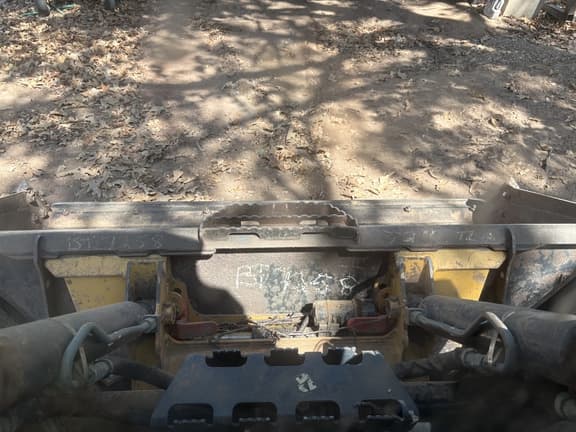

Options: Power Quik-Tatch

Notes on this unit

Yanmar 3.3L Turbocharged FT4 John Deere Diesel Engine
Mechanical Suspension Seat (Vinyl)
2-Inch Seat Belt with Shoulder Harness
EH Joystick Performance Package
Radio, AM/FM/WB with Aux Input
Front and rear halogen work lights

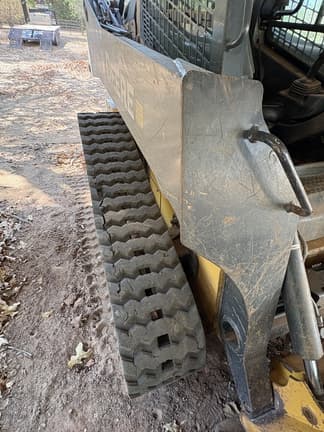

Narrow Offset Block Lug Rubber Tracks

F.A.Q.

2015 John Deere 323E — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

What engine does this 323E have?

John Deere's E-Series CTL sheet (DKAECTLCWP, 15-10) lists the 323E with a Yanmar 4TNV98CT, EPA Final Tier 4/EU Stage IV, 4 cylinders, 3.3 L (203 cu. in.), turbocharged: 52.5 kW (70 hp) net peak and 54.8 kW (74 hp) gross at 2,500 rpm, with 280 Nm (207 ft.-lb.) peak torque at 1,800 rpm and 34% torque rise. That matches the listing's Yanmar 3.3L turbocharged FT4.

What do the high-flow hydraulics deliver?

This unit has the high-flow option. Deere lists total pump flow of 95 L/m (25 gpm) with high flow, 22 408 kPa (3,250 psi) system pressure at the couplers, and a calculated 35.3 kW (47.4 hp) of high-flow hydraulic horsepower.

How much pulling force does it have?

John Deere's E-Series CTL sheet (DKAECTLCWP, 15-10) lists the 323E's tractive effort at 3859 kgf (8,500 lbf).

How big is it?

Length without bucket 2.85 m (112 in.), width without bucket 1.82 m (71.8 in.) on 320-mm track, height to top of ROPS 2.05 m (80.6 in.), height to hinge pin 3.12 m (122.8 in.) and ground clearance 0.25 m (9.8 in.). Dump angle at full lift is 42 deg.
