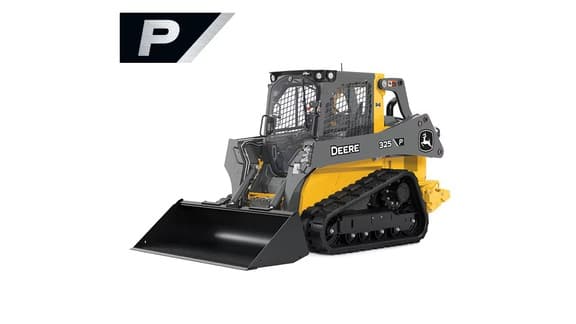

Name: 2026 John Deere 325 P
Brand: John Deere

Question 1

What rated operating capacity does John Deere publish for the 325 P-Tier?

Accepted Answer

MC325PAM.pdf SAE Rated Operating Capacity With Foundry Bucket: 1176 kg (2,590 lb.) at 35% tipping load and 1680 kg (3,700 lb.) at 50% tipping load. The deere.ca hero quotes 1176 kg (2,590 lb.) without a 50% figure. Tipping load on the PDF and deere.ca is 3360 kg (7,400 lb.); 35% / 50% of 7,400 lb. is 2,590 / 3,700 lb. Brochure graphic uses an approximate ≈ 2,600-lb. callout, which is not treated as a second table value.

Question 2

What engine and power ratings are on the current OEM documents?

Accepted Answer

MC325PAM.pdf publishes two engine columns. FT4 column (matches US API 00Z0T and deere.ca table): Yanmar 4TNV98CT, Certified EPA Final Tier 4 (FT4)/EU Stage IV, 4-cylinder, 3.3 L (203 cu. in.), gross 54.9 kW (74 hp) ISO 14396 at 2,500 rpm, net 52.5 kW (70 hp) SAE J1349 / ISO 9249 at 2,500 rpm, peak torque 280 Nm (207 lb.-ft.) at 1,800 rpm, torque rise 34%. IT4 column (PDF only): Yanmar 4TNV98T, UN R96 (EPA IT4 / EU Stage IIIA equivalent), gross 55.0 kW (74 hp), net 52.7 kW (71 hp), peak torque 284 Nm (209 lb.-ft.), torque rise 36%. US API also has a 2600 rpm gross-power field, both 74.0 hp. CA catalog object is named 325 P-Tier Interim Tier 4 while column-2 numbers follow the FT4 4TNV98CT pair.

Question 3

Does Deere publish both 35% and 50% ROC, and a tipping load?

Accepted Answer

Yes on MC325PAM.pdf: tipping load 3360 kg (7,400 lb.); ROC at 35% 1176 kg (2,590 lb.); ROC at 50% 1680 kg (3,700 lb.), foundry bucket on the ROC block. deere.ca catalog Tipping Load 3360 (7400).

Question 4

What operating weight is published?

Accepted Answer

MC325PAM.pdf, deere.ca hero, deere.ca table, and US spec API: 4313 kg (9,500 lb.) with standard 320-mm (12.6 in.) track. Optional 400-mm (15.8 in.) track 4381 kg (9,650 lb.) on the PDF and 9650.0 lb. on the API. PDF footnote: standard equipment, full fuel tank, and 79-kg (175 lb.) operator.

Engine manufacturer	Yanmar
Displacement	3.3 L (203 cu. in.)
Net power (SAE J1349 / ISO 9249) at 2,500 rpm — FT4 column / CA / US API	52.5 kW at 2,500 rpm (70 hp at 2,500 rpm)
Net power (SAE J1349 / ISO 9249) at 2,500 rpm — IT4 column (PDF only)	52.7 kW at 2,500 rpm (71 hp at 2,500 rpm)
Peak torque at 1,800 rpm — FT4 column / CA / US API	280 Nm at 1,800 rpm (207 lb.-ft. at 1,800 rpm)
Peak torque at 1,800 rpm — IT4 column (PDF only)	284 Nm at 1,800 rpm (209 lb.-ft. at 1,800 rpm)
Fuel tank	79 L (21 gal.)
Operating weight, standard 320-mm (12.6 in.) track	4313 kg (9,500 lb.)
Operating weight, optional 400-mm (15.8 in.) track	4381 kg (9,650 lb.)
Tipping load	3360 kg (7,400 lb.)
SAE rated operating capacity at 35% tipping load, foundry bucket (PDF) / CA hero	1176 kg (2,590 lb.)
SAE rated operating capacity at 50% tipping load, foundry bucket (PDF) / US API (construction label)	1680 kg (3,700 lb.)
Travel speed, 2-speed high	13.2 km/h (8.2 mph)
