Question 1

What engine and ROC does the remaining official 333G PDF publish?

Accepted Answer

DKAGCTL333.pdf (footer DKAGCTL333 (22-10); CreationDate 2022-10-11 UTC) for 333G / 333G SMARTGRADE™: Yanmar 4TNV94FHT, EPA FT4/EU Stage IV, gross 74.6 kW (100 hp) ISO 14396 at 2,500 rpm, net peak 72.0 kW (96.6 hp) SAE J1349 / ISO 9249 at 2,500 rpm. 333G SAE ROC 1680 kg (3,700 lb.) at 35% and 2399 kg (5,285 lb.) at 50%; foundry tipping load 4799 kg (10,570 lb.). SMARTGRADE column ROC 1848 kg (4,071 lb.) / 2640 kg (5,815 lb.); tipping load 5280 kg (11,630 lb.).

Question 2

What operating weights are listed for 333G vs SMARTGRADE?

Accepted Answer

333G: 5493 kg (12,100 lb.) with standard 450-mm (17.7 in.) track; 5448 kg (12,000 lb.) with optional 400-mm (15.8 in.) track. SMARTGRADE: 6356 kg (14,000 lb.) on 450-mm including 3 sets of counterweights and dozer blade; 6311 kg (13,900 lb.) on 400-mm.

Question 3

What SmartGrade blade ratings are on the spec sheet?

Accepted Answer

DKAGCTL333.pdf PAT blade; width 2440 mm (96 in.); height 740 mm (29 in.); SAE capacity 1.18 m3 (1.54 cu. yd.); weight 640 kg (1,400 lb.); angle ±24 deg.; tilt ±8 deg.

Engine manufacturer and model	Yanmar 4TNV94FHT
Displacement	3.1 L (186.3 cu. in.)
Gross rated power (ISO 14396) at 2,500 rpm	74.6 kW at 2,500 rpm (100 hp at 2,500 rpm)
Net peak power (SAE J1349 / ISO 9249) at 2,500 rpm	72.0 kW at 2,500 rpm (96.6 hp at 2,500 rpm)
Peak torque at 1,700 rpm	395 Nm at 1,700 rpm (291.3 ft.-lb.)
Fuel tank	114 L (30 gal.)
Operating weight, 333G, standard 450-mm (17.7 in.) track	5493 kg (12,100 lb.)
Operating weight, 333G, optional 400-mm (15.8 in.) track	5448 kg (12,000 lb.)
Tipping load with foundry bucket, 333G	4799 kg (10,570 lb.)
SAE ROC at 35% tipping load, 333G	1680 kg (3,700 lb.)
SAE ROC at 50% tipping load, 333G	2399 kg (5,285 lb.)
SG96 SAE capacity	1.18 m3 (1.54 cu. yd.)
Travel speed, 2-speed high	12.6 km/h (7.8 mph)

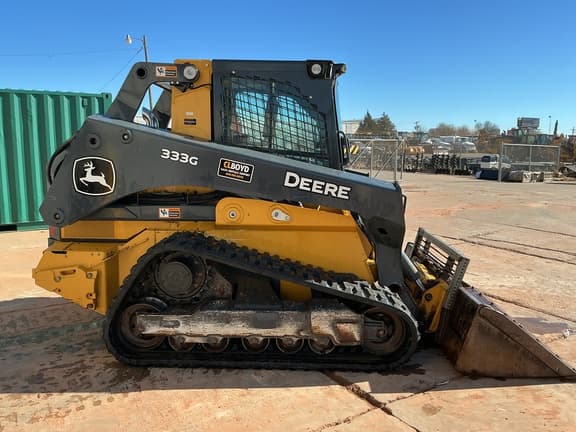

2022 John Deere 333G
