2026 John Deere 324 P

Oklahoma City

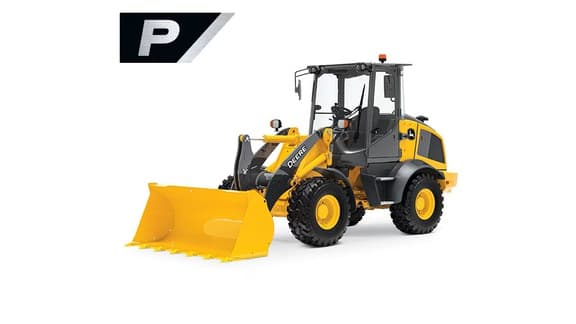

2026 John Deere 324 P compact loader. Listed from Oklahoma City, OK. Sold.

Status: Sold

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Class: Compact Loaders
Engine: Yanmar 3.3L 73 HP Turbocharged FT4 Diesel Engine
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Engine manufacturer and model	Yanmar 4TNV98CT
Non-road emission standard	EPA Final Tier 4/EU Stage V
Gross rated power (ISO 14396)	54 kW at 2,400 rpm (73 hp at 2,400 rpm)
Net peak power (SAE J1349 / ISO 9249)	52 kW at 2,400 rpm (71 hp at 2,400 rpm)
Peak torque	280 Nm at 1,560 rpm (206 lb.-ft. at 1,560 rpm)
Cylinders	4
Displacement	3.3 L (203 cu. in.)
Aspiration	Turbocharged
Transmission	Hydrostatic (HST), 2 speed ranges
Travel speed, gear 1 (405/70R20 tires)	18 km/h (11.0 mph)
Travel speed, gear 2 (405/70R20 tires)	38 km/h (23.5 mph)
Differentials	Manual (push-button) 100% locking front, conventional rear
Articulation angle	60-deg. arc (30 deg. each direction)
Maximum pressure at couplings	21 000 kPa (3,045 psi)
System relief pressure, loader	18 960 kPa (2,750 psi)
System relief pressure, steering	18 000 kPa (2,611 psi)
Hydraulic cycle time, raise / dump / lower / total	5.6 / 2.0 / 4.4 / 12.0 sec.
Tread width (405/70R20 Mitas EM-01)	1630 mm (5 ft. 4 in.)
Width over tires (405/70R20 Mitas EM-01)	2090 mm (6 ft. 10 in.)
Fuel tank	90 L (23.8 gal.)
Hydraulic/HST reservoir with filter	66 L (17.4 gal.)
Engine oil with filter	10 L (10.8 qt.)
Cooling system (engine and radiator)	12.1 L (12.7 qt.)
Height to top of cab	2.78 m (9 ft. 1 in.)
Height to top of exhaust	2.01 m (6 ft. 7 in.)
Ground clearance	295 mm (12 in.)
Wheelbase	2.30 m (7 ft. 7 in.)

Equipment on this unit

Operators Station: ROPS
Operators Station: Cab w/ AC
Attachments: Quick Coupler
Buckets: General Purpose Bkt
Options: Aux Hydraulics
Options: LED Lighting
Options: Ride Control

Notes on this unit

Yanmar 3.3L 73 HP Turbocharged FT4 Diesel Engine
Hydrostat With Two Speed Synchronized Shift-On-Fly Transmission - High Speed
LED Work Lights Front and Rear - Single
405/70R20 Mitas EM-01 Radial Tires
3-function hydraulic valve with pilot joystick control including auxiliary electrohydraulic (EH) proportional control for 3rd function

F.A.Q.

2026 John Deere 324 P — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

What engine does this 324 P compact wheel loader have?

John Deere's 324 P-Tier sheet lists a Yanmar 4TNV98CT, 4 cylinders, 3.3 L (203 cu. in.), turbocharged, EPA Final Tier 4/EU Stage V, 54 kW (73 hp) gross and 52 kW (71 hp) net at 2,400 rpm, with 280 Nm (206 lb.-ft.) peak torque at 1,560 rpm.

How fast does it travel?

The hydrostatic drive has two speed ranges: 18 km/h (11.0 mph) in gear 1 and 38 km/h (23.5 mph) in gear 2 on 405/70R20 tires.

How wide and tall is it?

On 405/70R20 Mitas EM-01 tires: width over tires 2090 mm (6 ft. 10 in.), tread width 1630 mm (5 ft. 4 in.). Height to top of cab 2.78 m (9 ft. 1 in.); wheelbase 2.30 m (7 ft. 7 in.).
