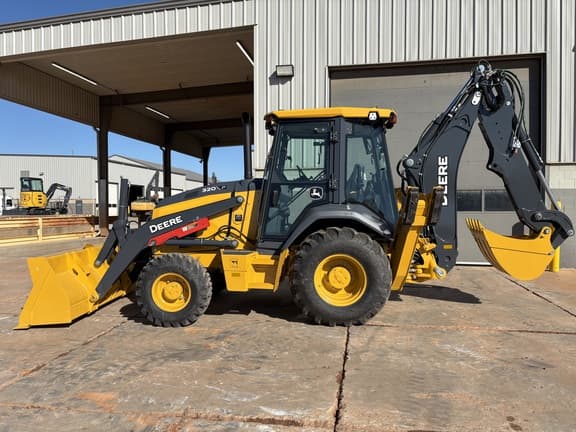

Name: 2024 John Deere 320 P
Brand: John Deere
Price: 120122 USD
Availability: InStock

Question 1

What net horsepower does John Deere publish for the 320 P-Tier backhoe?

Accepted Answer

Net peak power (ISO 9249) is 84 kW (113 hp) at 1,900 rpm on MB320PBU.pdf, the US product-page hero (113 hp (84 kW) at 1,900 rpm), the deere.ca hero, the deere.ca Engine Output - Net field 84 (113), and All About Backhoes.

Question 2

How deep does the current 320 P-Tier backhoe dig?

Accepted Answer

SAE maximum digging depth with standard dipperstick, Standard Lift, is 4.33 m (14 ft. 3 in.) on MB320PBU.pdf, the US hero, and the deere.ca hero. Heavy-Lift (HL) standard dipperstick is 4.65 m (15 ft. 3 in.) on those same sources. With optional extendable dipperstick, MB320PBU.pdf lists Standard Lift 5.53 m (18 ft. 2 in.) extended and HL 5.59 m (18 ft. 4 in.) extended. Specs are with a 610-mm x 0.21-m3 (24 in. x 7.5 cu. ft.) bucket.

Question 3

What operating weight does Deere publish?

Accepted Answer

The live US and deere.ca heroes publish 7748 kg (17,081 lb.) Standard Lift and 7885 kg (17,383 lb.) HL. MB320PBU.pdf assigns those figures to full fuel, 75-kg (165 lb.) operator, standard equipment, canopy, and 204-kg (450 lb.) counterweight. The same PDF also lists ISO 6016 operating mass 8225 kg (18,133 lb.) and typical cab + extendable dipperstick + 454-kg (1,000 lb.) counterweight 8553 kg (18,856 lb.) Standard Lift / 8666 kg (19,105 lb.) HL.

Question 4

What loader bucket capacity and lift does Deere publish?

Accepted Answer

MB320PBU.pdf lists four loader buckets: general-purpose 0.86 m3 (1.13 cu. yd.), full-height lift 3541 kg (7,807 lb.) Standard Lift; general-purpose 1.00 m3 (1.31 cu. yd.); general-purpose 1.06 m3 (1.39 cu. yd.), lift 3489 kg (7,693 lb.) Standard Lift; multipurpose 1.01 m3 (1.32 cu. yd.), lift 2973 kg (6,555 lb.). deere.ca Standard General Purpose matches the 0.86 m3 column. The PBU footer says that except where otherwise noted, specifications are based on the 1.06-m3 (1.39 cu. yd.) loader bucket.

Question 5

What engine is in the current 320 P-Tier backhoe spec sheet?

Accepted Answer

John Deere PowerTech EWL 4.5L 4045HL052 turbocharged, 4.5 L (276 cu. in.), EPA Final Tier 4/EU Stage IV on MB320PBU.pdf. US page copy: PowerTech EWL 4.5L without the need for a diesel particulate filter.

Question 6

What transmission and travel speed are published?

Accepted Answer

5-speed full PowerShift with hydraulic reverser and AutoShift standard (MB320PBU.pdf). Gears 5 forward / 3 reverse. Highest listed gear with 19.5L-24 rear tires is 40.0 km/h (24.9 mph) on MB320PBU.pdf.

Unit	Hours	Asking
2023	645	$135,000
2023	1,106	$126,000
2023	1,298	$128,000
This unit	2,471	$120,122
2024	3,537	$115,500

Engine manufacturer	John Deere
Engine model	John Deere PowerTech EWL 4.5L 4045HL052 turbocharged
Displacement	4.5 L (276 cu. in.)
Gross peak power	86 kW at 1,900 rpm (115 hp at 1,900 rpm)
Net peak power (ISO 9249)	84 kW at 1,900 rpm (113 hp at 1,900 rpm)
Net peak torque (ISO 9249)	459 Nm at 1,600 rpm (338 lb.-ft. at 1,600 rpm)
Transmission	5-speed, helical-cut gears, full PowerShift with hydraulic reverser standard; electric clutch cutoff on loader lever; AutoShift transmission standard
Gears — forward / reverse	5F / 3R
Gear 5 forward maximum speed (highest listed gear)	40.0 km/h (24.9 mph)
Loader bucket capacity — general-purpose 0.86 m3	0.86 m3 (1.13 cu. yd.)
Loader bucket capacity — general-purpose 1.00 m3	1.00 m3 (1.31 cu. yd.)
Loader bucket capacity — general-purpose 1.06 m3	1.06 m3 (1.39 cu. yd.)
Loader bucket capacity — multipurpose	1.01 m3 (1.32 cu. yd.)
Loader lift capacity, full height — GP 0.86 m3, Standard Lift	3541 kg (7,807 lb.)
Loader lift capacity, full height — GP 1.06 m3, Standard Lift	3489 kg (7,693 lb.)
Loader lift capacity, full height — multipurpose, Standard Lift / HL	2973 kg (6,555 lb.)
Digging depth SAE maximum — Standard Lift, standard dipperstick	4.33 m (14 ft. 3 in.)
Digging depth SAE maximum — HL, standard dipperstick	4.65 m (15 ft. 3 in.)
Digging depth SAE maximum — Standard Lift, extendable extended	5.53 m (18 ft. 2 in.)
Operating weight — US/CA hero and PBU Standard Lift canopy configuration	7748 kg (17,081 lb.)
Operating weight — US/CA hero and PBU HL canopy configuration	7885 kg (17,383 lb.)
ISO 6016 operating mass	8225 kg (18,133 lb.)
Typical with cab, extendable dipperstick, and 454-kg (1,000 lb.) counterweight — Standard Lift	8553 kg (18,856 lb.)
Fuel tank	128.7 L (34.0 gal.)
Overall length, transport — Standard Lift	7.48 m (24 ft. 6 in.)
