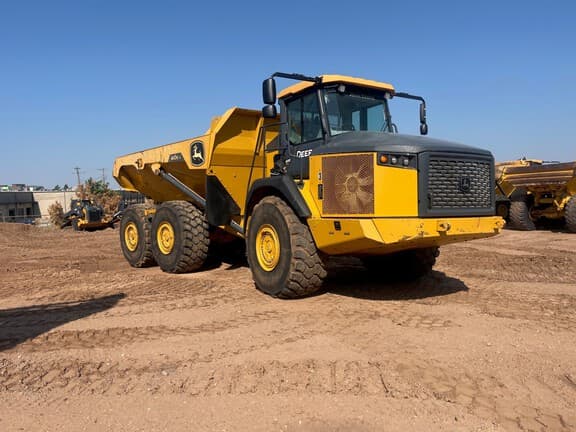

2021 John Deere 410E II
2021 John Deere 410E II articulated dump truck. 6,649 hours. Listed from Oklahoma City, OK. Stock 220135. Asking $275,000.
- Asking
- $275,000
- Hours
- 6,649
- Stock #
- 220135
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 220135
- Engine
- John Deere FT4 Diesel Engine
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| Engine manufacturer and model | John Deere PowerTech 6135 |
|---|---|
| Non-road emission standards | EPA Final Tier 4/EU Stage IV |
| Net peak power (ISO 9249) | 329 kW at 1,700 rpm (441 hp at 1,700 rpm) |
| Net peak torque (ISO 9249) | 2414 Nm at 1,200 rpm (1,780 lb.-ft. at 1,200 rpm) |
| Displacement | 13.5 L (823.8 cu. in.) |
| Rated payload | 37 266 kg (82,157 lb.) |
| Heaped capacity (2:1 ISO 6483) | 22.9 m3 (30.0 cu. yd.) |
| Struck capacity | 17.1 m3 (22.3 cu. yd.) |
| Operating weight empty, total | 31 400 kg (69,225 lb.) |
| Operating weight loaded, total | 68 666 kg (151,382 lb.) |
| Fuel tank | 609 L (161.0 gal.) |
| DEF tank | 48 L (13.0 gal.) |
| Travel speed, gear 8 forward | 55 km/h (34 mph) |
| Overall length | 10.64 m (34 ft. 11 in.) |
| Width over tires (29.5R25) | 3.41 m (11 ft. 2 in.) |
| Dump cycle time — raise | 12 seconds (12 sec.) |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
What engine and horsepower does the 410E-II have?
John Deere PowerTech 6135, 13.5 L (823.8 cu. in.), EPA Final Tier 4/EU Stage IV. Net peak power 329 kW (441 hp) at 1,700 rpm; net peak torque 2414 Nm (1,780 lb.-ft.) at 1,200 rpm per DKAEADT (20-08).
What is the rated payload and heaped capacity?
Rated payload 37 266 kg (82,157 lb.). Heaped capacity at 2:1 ISO 6483 is 22.9 m3 (30.0 cu. yd.); with optional tailgate 24.2 m3 (31.7 cu. yd.).
What does the 410E-II weigh empty and loaded?
With standard equipment: empty 31 400 kg (69,225 lb.); loaded 68 666 kg (151,382 lb.).
Is this the same as a 410E or 410 P?
No. 410E-II is the E-Series II FT4 machine (DKAEADT 20-08). Do not use older 410E IT4 DKAEADT (13-06) or 410 P-Tier JD14 / MT410PBU numbers.
How many hours are on this 2021 410E-II?
6,531 hours (lot-units; T&B card shows 6,525).
What is the asking price and location?
$275,000 in Oklahoma City, OK. Stock 220135.
