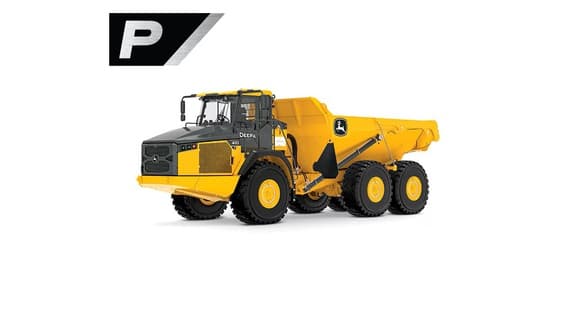

Name: 2024 John Deere 410 P
Brand: John Deere
Price: 445000 USD
Availability: InStock

Question 1

What is the rated payload of the current John Deere 410 P-Tier ADT?

Accepted Answer

37 266 kg (82,157 lb.), published on MT410PBU.pdf (both FT4 and Tier 3 columns), the US product-page hero, the deere.ca default HTML table, and the CA 410 P-Tier Tier 3 catalog object. Capacity and loaded weights on the spec sheet are based on 1640-kg/m3 (2,759 lb./cu. yd.) material. OEM pages do not label the machine as 40-ton.

Question 2

What net horsepower does John Deere publish for the 410 P ADT?

Accepted Answer

The official spec sheet MT410PBU.pdf and the US product-page hero both list net peak power (ISO 9249) of 341 kW (457 hp) at 1,700 rpm, both FT4 and Tier 3 columns. The CA default HTML table under that hero is JD14 / 341 (457).

Question 3

How does 410 P body capacity compare with the 460 P on the current John Deere pages?

Accepted Answer

410 P heaped 2:1 ISO 6483 is 22.9 m3 (30.0 cu. yd.) (MT410PBU.pdf / 410 P US hero / US spec API 30.0 cu yd). 410 P struck is 17.1 m3 (22.3 cu. yd.); 24.2 m3 (31.7 cu. yd.) with optional tailgate. Same-day 460 P research (MT460PBU.pdf / 460 P US hero) lists heaped 25.2 m3 (32.9 cu. yd.), struck 19.5 m3 (25.5 cu. yd.), payload 41 820 kg (92,197 lb.) vs 410 P payload 37 266 kg (82,157 lb.). 410 P net peak power 341 kW (457 hp) vs 460 P 371 kW (498 hp) on those spec sheets.

Question 4

What empty (tare) weight does Deere publish?

Accepted Answer

FT4 with standard equipment, total empty: 31 120 kg (68,608 lb.) on MT410PBU.pdf. CA HTML table net weight: 31120 (68608). Axle split (PDF FT4 empty): front 16 890 kg (37,236 lb.), middle 7115 kg (15,686 lb.), rear 7115 kg (15,686 lb.).

Question 5

What engine is in the current 410 P-Tier spec sheet?

Accepted Answer

John Deere JD14, 13.6 L (830 cu. in.), dual-series turbocharger, HPCR fuel system, net peak power 341 kW (457 hp) ISO 9249 at 1,700 rpm (MT410PBU.pdf). No derating required up to 3050 m (10,000 ft.) per the PDF ISO 9249 footnote.

Question 6

How long does the dump cycle take?

Accepted Answer

Raise time 12 sec.; power down 7 sec. (MT410PBU.pdf Cycle Time; US spec API same seconds). Hoist described as dual-acting, single-stage. Maximum dump angle 70 deg.

Question 7

What are the standard tires and the optional size?

Accepted Answer

Standard 29.5R25 radial earthmovers; optional 875/65R29 (MT410PBU.pdf). Width over tires is 3.41 m (11 ft. 2 in.) on 29.5R25 and 3.58 m (11 ft. 9 in.) on 875/65R29. Optional 875/65R29 add 1286 kg (2,835 lb.).

Unit	Hours	Asking
2026	1,114	$648,546
2026	1,600	$648,546
2025	3,327	$517,264
2023	3,478	$446,000
This unit	5,493	$445,000

Engine manufacturer	John Deere
Engine model	John Deere JD14
Displacement	13.6 L (830 cu. in.)
Net peak power (ISO 9249)	341 kW at 1,700 rpm (457 hp at 1,700 rpm)
Net peak torque (ISO 9249), FT4 column	2429 Nm at 1,300 rpm (1,792 lb.-ft. at 1,300 rpm)
Transmission	8-speed forward, 4-speed reverse, countershaft/planetary type with integral retarder and torque-proportioning differential
Gears — forward / reverse	8F - 4R
Struck capacity	17.1 m3 (22.3 cu. yd.)
Heaped capacity (2:1 ISO 6483)	22.9 m3 (30.0 cu. yd.)
Heaped capacity with optional tailgate (2:1 ISO 6483)	24.2 m3 (31.7 cu. yd.)
Dump cycle time — raise	12 seconds (12 sec.)
Dump cycle time — power down	7 seconds (7 sec.)
Rated payload	37 266 kg (82,157 lb.)
Operating weight empty, FT4, with standard equipment (total)	31 120 kg (68,608 lb.)
Operating weight loaded / GVW, FT4, with standard equipment (total)	68 386 kg (150,765 lb.)
Fuel tank	609 L (161 gal.)
Gear 8 forward speed (highest published gear)	55 km/h (34 mph)
Overall length (dimension B)	10.64 m (34 ft. 11 in.)
