2026 K Tec 1230

Oklahoma City · Stock 26924

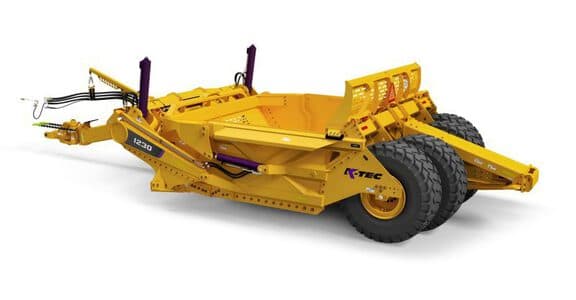

2026 K Tec 1230 scrapers / pull pan. Listed from Oklahoma City, OK. Stock 26924. Sold.

Status: Sold
Stock #: 26924

Location: Oklahoma City, OK
Listed by: CL Boyd

Sales: (405) 873-7772 Email: sales@trackandblade.com

Sales desk 9 to 5 Central · Live Agent 24/7

Essentials

Stock: 26924
Class: Scrapers / Pull Pans
Yard: Oklahoma City, OKSee what else is here.
Sale: No bidding · no premium
Listed by: CL Boyd

Specification

Heaped capacity (ISO)	22.9 m³ (30 cu yd)
Struck capacity	14 m³ (18.3 cu yd)
Max loading rating	32,659 kg (72,000 lb)
Bowl dimensions (W x H x L)	3.66 m W x 1.27 m H x 3.35 m L (12 ft W x 50 in H x 11 ft L)
Cutting width	3.66 m (12 ft)
Gate opening	1.9 m (6 ft 3 in)
Turning radius	7.9 m (26 ft)
Gate cylinders	114 mm x 673 mm (4.5 in x 26.5 in)
Lift cylinders	140 mm x 813 mm (5.5 in x 32 in)
Ejector cylinder	140 mm x 1,930 mm (5.5 in x 76 in)
Cutting edge clearance	0.74 m (29 in)
Hitch pin to rear axle length	9.1 m (30 ft)
Rack height (tiltable)	2.1 m (83 in)
Weight distribution	26% tongue, 74% wheels
Tires (4)	23.5 R25 Radial
Horsepower required	220 kW+ (300 HP+)
Overall width	4.3 m (14 ft)
Overall height	2.7 m (9 ft)
Overall length	11.3 m (37 ft 1 in)

Equipment on this unit

Tires: 23.5 Tires
Beds: Open Bowl
Beds: Ejector Bowl
Beds: Pull Type

Notes on this unit

30 Cu Yd Heaped & 18.3 Cu Yd Struck Capacity
12' cutting width
4) 235 R25 Radial Tires
29,000 lb Shipping Weight

F.A.Q.

2026 K Tec 1230 — questions before you call.

(405) 873-7772 sales@trackandblade.com

Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.

How much does this K-Tec 1230 carry?

K-Tec lists the 1230 at a heaped (ISO) capacity of 30 cu yd (22.9 m³) and a struck capacity of 18.3 cu yd (14 m³), with a maximum loading rating of 72,000 lb (32,659 kg). That matches the listing's 30 cu yd heaped / 18.3 cu yd struck.

What size tractor does it need?

K-Tec calls for 300 HP+ (220 kW+). The hitch carries 26% of the scraper's weight on the tongue and 74% on the wheels, which puts extra weight on the tractor for traction.

What are the bowl and cutting dimensions?

Cutting width is 12 ft (3.66 m). The bowl is 12 ft W x 50 in H x 11 ft L (3.66 m x 1.27 m x 3.35 m), gate opening is 6 ft 3 in (1.9 m), cutting edge clearance is 29 in (0.74 m) and the tiltable rack stands 83 in (2.1 m).

How big is it overall?

Overall width 14 ft (4.3 m), height 9 ft (2.7 m) and length 37 ft 1 in (11.3 m). Hitch pin to rear axle is 30 ft (9.1 m), turning radius is 26 ft (7.9 m), and it rides on four 23.5 R25 radial tires.
