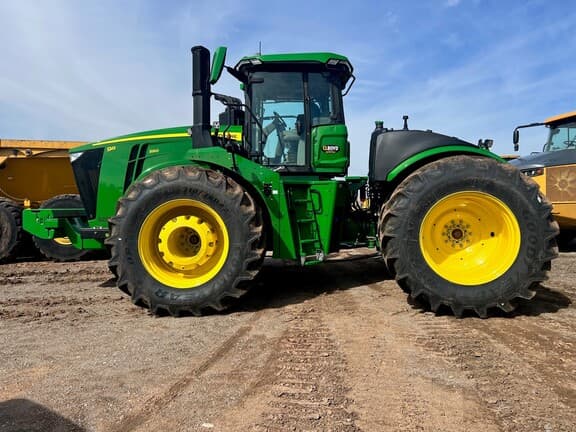

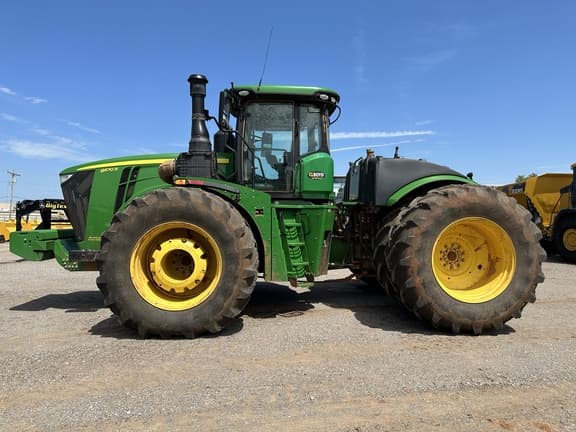

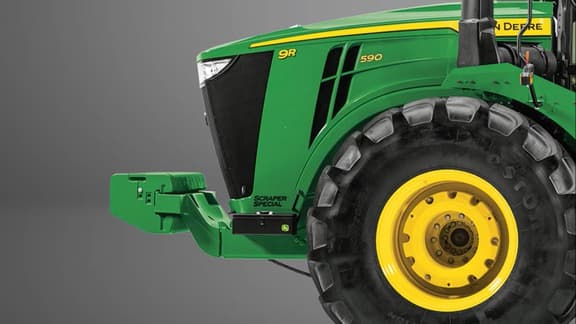

2024 John Deere 9R 590
2024 John Deere 9R 590 scraper tractor. 1,768 hours. Listed from Oklahoma City, OK. Stock 25686. Asking $681,226.
- Asking
- $681,226
- Hours
- 1,768
- Stock #
- 25686
- Location
- Oklahoma City, OK
- Listed by
- CL Boyd
Sales desk 9 to 5 Central · Live Agent 24/7
Essentials
- Stock
- 25686
- Class
- Scraper Tractors
- Engine
- 13.6L 590 HP, FT4 John Deere Diesel Engine w/ Dual series turbocharger with fixed geometry first stage and wastegated second stage; air-to-air aftercooling and cooled exhaust gas recirculation
- Yard
- Oklahoma City, OKSee what else is here.
- Sale
- No bidding · no premium
- Listed by
- CL Boyd
Specification
| Engine description | JD14 (B20 diesel compatible) |
|---|---|
| Engine displacement | 13.6 L (827 cu in.) |
| Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | 434 kW (590 hp) |
| Maximum engine power PS (hp ISO) at max engine power speed (EU 2016/1628 / ECE-R120) | 477 kW (649 hp) |
| Rated PTO power (hp SAE) at rated PTO speed (1895 erpm) | 249 kW (335 hp) |
| Rated engine speed | 2,100 rpm |
| Transmission | John Deere e18 18-speed PowerShift with Efficiency Manager; 40 km/h (John Deere e18 18-speed PowerShift with Efficiency Manager; 25 mph) |
| Hydraulic pump rated output — standard / high-flow | 208 L/min / 416 L/min (55 gpm / 110 gpm) |
| Maximum hydraulic pressure | 20,000 kPa (2,900 psi) |
| Fuel tank | 1514 L (400 gal) |
| DEF tank | 120 L (31.7 gal) |
| Cooling system | 56.5 L (14.9 gal) |
| Estimated shipping / base machine weight | 20,856 kg (45,980 lb) |
| Wheelbase | 3912 mm (154 in.) |
| HydraCushion front-axle suspension | Available |
Sales desk is 9 to 5 Central. Live Agent is on 24/7 — call, text, or chat.
Is this the same as the older 9570R?
No. 9R 590 is the newer naming (JD14 13.6 L, 590 rated / 649 max). 9570R is the prior 9R-series 570-hp model with PowerTech 13.5 L. Do not mix sheets.
Can I use 9R 640 numbers for a 9R 590?
No. Rated/max power and shipping weight differ (590: 590/649 hp, 45,980 lb; 640: 640/691 hp, 46,680 lb). Do not mix 590 and 640.
Do 2023 and 2024 9R 590 share published OEM numbers?
Yes. Current deere.com US 9R 590 page and the deere.com 9 Series AU-NZ brochure publish the same 590/649 hp and shared hydraulics/capacities; no year-split sheet found.

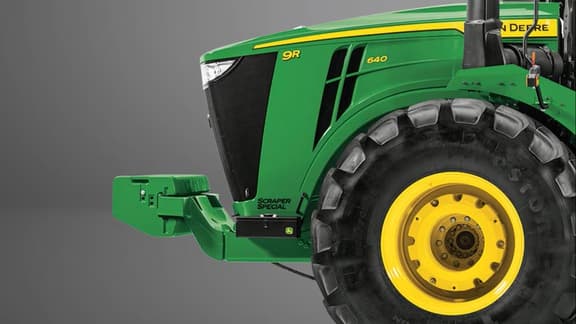

Ag 9R vs Scraper Special?
Power ratings match on the OEM Scraper Special table, but scraper packages change drawbar/hitch/PTO availability (short scraper drawbar standard; rear PTO/3-point often NA). Confirm unit config before quoting hitch/PTO.
